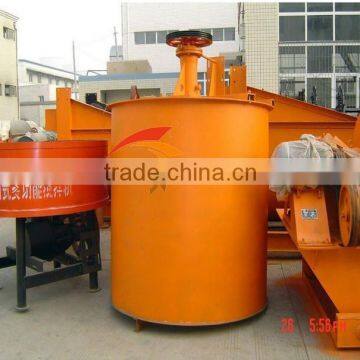

2013 Barrel Shape Mining Mixer Agitation Leaching Tank

Application of Yufeng Agitating Tank/ Mixer

Mix leaching tank is used for mixing pulp before the flotation process , causes the pulp and medicament mixed intensively , creates condition for the Mine selection working .
Mix leaching tank is suitable for blending various kinds of metal and nonmetal ores , it is mainly used to blend medicament and ore magma before flotation . It is application for the material whose maximum concentration is 30% and whose granularity is less than 1mm . It has a cylindrical radial circulation mechanical blending form with the spiral impeller and flatbottom

Structure and Working Principle of  Yufeng Agitating Tank/ Mixer

The rotating of the impeller is driven by the v-belt of the motor. And then blends the drugs and slurry evenly. It is a necessary equipment in respect of increasing the medicine effect time and strengthening the medicine quality. It applies to beneficiation, industry, and every chemical industry. For all kinds of metal ore, this machine is mainly used for mixing before flotation circuit, so that it can mix the medicine and slurry fully. And it can also be used for mixing other non-metallic minerals. It is suitable for slurry with density of no more than 30%(by weight).And the size of the fixed component of the slurry particle less than 1 mm. It has a cylindrical radial circulation mechanical blending form with the spiral impeller and flat bottom.

Characteristics of  Yufeng Agitating Tank/ Mixer

1.The blending system adopts single-direction or double-direction wall scraping blending and frequency conversion speed adjustment to satisfy production of different technological requirement.

2.Materials can be heated or cooled according to technological requirement.The heating methods such as steam or electric heating can be selected according to customer requirements.

3.Various forms of blending vanes are suitable for production of different types of products.

4.Made of imported SUS304 or SUS316L stainless steel.The tank body and pipe are suitable for production of defferent types of products.

5.Made of  imported SUS304 or SUS316L stainless steel .The tank body and pipe are subjected to mirror polishing.

6.Bottom installation type dispersing head  and FLUKO pipeline type emulsifying head  are optional to speed up dissolution and emulsification of materials.

7.The stainless steel electric control cabinet can completely supervise  the operation of equipment, and display such date as temperature and blending rotating speed etc.


Technological development of  Yufeng Agitating Tank/ Mixer

During the production of liquid washing products, the self-suction type AES dissolver can alleviate worker's labor intensity of feeding and shorten dissolving time.
 Stirring trough -Agitation tank /stirring tank is mainly used to blend medicament and ore magma .it’s suitable for blending various kinds of metal and nonmetal ores. Especially it’s applied to stir the slurry of concentration not more than 30% and solid granularity particle size less than 1mm in floating, gravity concentrating and wet-type magnetic separation. It is also used to mix floatation agents and other non-metal minerals.

Advantages & benefits of Yufeng Agitation Tank / Mixer

1. Strong agitating capacity for the slurry and medicament.
2, The stronger the agitating ability, the stronger the circulating ability of slurry and medicament.
3, Strong negative pressure is compressed in limited room which increases the suction ability and the circulating ability of slurry and medicame.

Technical Parameters of Yufeng Agitating Tank / Mixer

Training & service

Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide 2-years warranty to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
