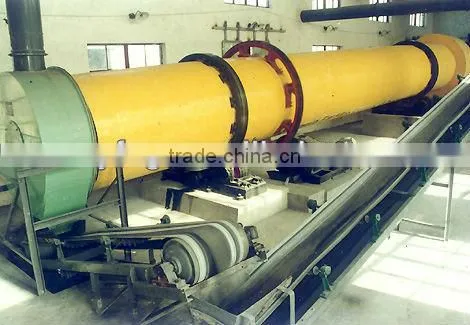

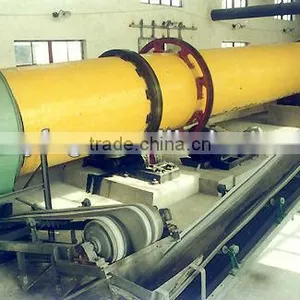

Cooler
Application of Cooler
Cooler mainly used for building materials, metallurgy, chemical industry, cement industry, cool slag, limestone, coal clay, fine chemicals, also be used for fertilizer production lines.
Description of Cooler
Cooler used for the production of compound fertilizer, cool fertilizer with certain temperature and particle size. Use dryer for together can greatly improve the cooling rate, reduce labor intensity and improve the quality, further remove moisture, reduce the grain temperature of fertilizer. At the same time can also be used for cooling other powder, granular materials.
Working principle:
Cooler is a kind of quench cooler.Its principle is to quench clinker which is laid in levels on the grate plates with cold wind from air blower.Temperature of clinker will be rapidly dropped from 1200 to be less than 100.Plenty of waste gases after cooling could not only be used as secondary air in the kiln,but also be heat source for drying coal in the coal mill.
The Main Features of Cooler:
(1)Compact structure
(2)High cooling efficiency
(3)Reliable performance
(4)Strong adaptability
Technical Parameters:
Specification (m) | Canister | Electricmotor | Reducer Model | Size (mm) | Weight (t) | |||
Volume (m3) | Rev (r/min) | Pitch (%) | Model | Power (kw) | ||||
1x15 | 11.8 | 5 | 5 | YCT200-4B | 7.5 | ZQ400 | 15000x1876x2069 | 9.5 |
1.2x12 | 13.57 | 5 | 5 | YCT225-4A | 11 | ZQ500 | 12000x2159x2475 | 10.3 |
1.2x15 | 17 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 | 15000x2294x2475 | 12.8 |
1.2x20 | 22.6 | 4-5 | 5 | YCT225-4B | 15 | ZQ500 | 20000x2294x2475 | 16.8 |
1.5x10 | 17.67 | 3-5 | 5 | YCT225-4B | 15 | ZQ650 | 10000x2655x2895 | 16.5 |
If any query,pls contact with Elise Zhu,skype:yumachine
...
...
