Light weight material dryer/ biomass dryers

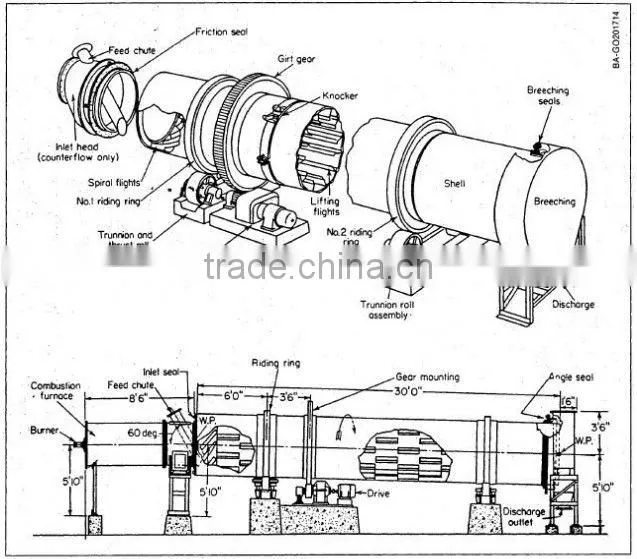

consists of heat supply source, feeding machine, revolving cylinder, discharging machine, induced-draft fan, tripper, and power distribution cabinet; after enter the dryer machine, the light material distributes
in the dryer equably and contacts the hot air fully when flipped by the lifting plate in the drum, this will quicken
the heat transfer and mass transfer.During the drying process, with action of the inclined lifting plate and heat
medium, the dried material is discharged from the star-shape discharge valve in another side of the dryer.
The light material includes sawdust, wood chips, coconut shell, fiber, oil palm fiber, bean dregs, cassava,
cow dung and other material residuals.
Main Technical Parameters
Model |
Diameter (mm) |
Length (m) |
Slope(°) |
Speed (r/min) |
Power(kw) |
YFC0.6×8-12 |
600 |
8-12 |
3-5 |
8 |
4 |
YFC0.8×10-10 |
800 |
10-12 |
3-5 |
7.2 |
4 |
YFC1.0×10-12 |
1000 |
10-12 |
3-5 |
6.73 |
5.5 |
YFC1.2×12-18 |
1200 |
12-18 |
3-5 |
5.8 |
11-15 |
YFC1.5×12-18 |
1500 |
12-18 |
3-5 |
4.8 |
15-22 |
YFC1.8×12-18 |
1800 |
12-18 |
3-5 |
3.2 |
185-30 |
YFC2.2×12-22 |
2200 |
12-22 |
3-5 |
3 |
22-30 |
YFC2.8×15-24 |
2800 |
15-24 |
3-5 |
2.59 |
30-55 |
...
