Product Details

Place of Origin	Henan, China	Brand Name	YUFENG
Model Number	SLQM32-3/SLOM32-4/SLOM35-4/SLOM64-5/SLOM64-8	Type	Pocket Filter
Usage	Dust Filter	Material Of Bag	Nylon

Product Description

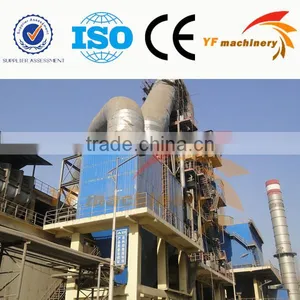

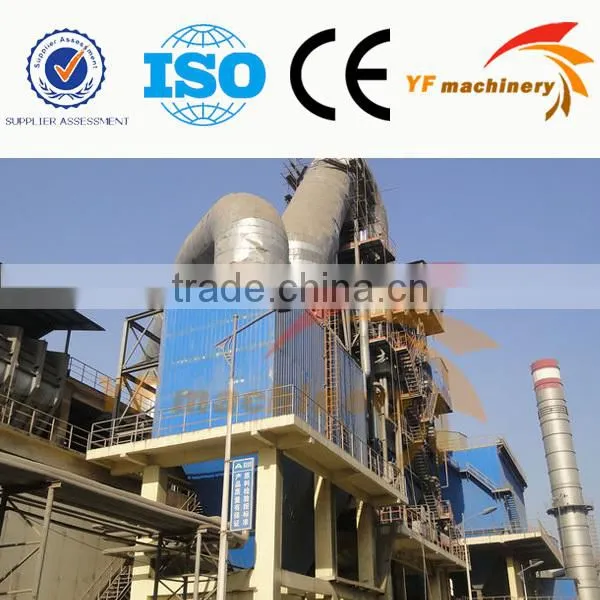

SLQM Pulse Jet Bag Dust Collector

SLQM Pulse Jet Bag Dust Collector Brief Introduction:

1. clean dust with offline pulse and effectiveness is up to 99.9%. the dust has no secondary absorption. it is specially used for handling high concentrated gas.

2. SLQM Pulse Jet Bag Dust Collector use reverse blowing in high temperature to prevent condensation effectively.

3. use new materials for cleaning dust and the machine is with reliable tracking system of gas temperature. it can adapt to various conditions.

4. because of automatic control by computers, the machine is easy to be operated with good reliability.

5. the dust collector is with air box, which avoids partial damage and inconvenient installation

Main technical data

Spec.		Model	SLQM32-3		SLQM32-4	SLOM32-5	SLOM32-6	SLOM64-4	SLOM64-5	SLOM64-6	SLOM64-7		SLOM64-8
Air volume			6690		8930	11160	13390	17800	22300	26700	31200		35700
Total filter area(m2)			93		124	155	186	248	310	372	434		496
Chamber(pcs)			3		4	5	6	4	5	6	7		8
Filter bag(pcs)			32						64
Total filter bag(pcs)			32		128	160	192	256	320	384	448	512
Pulse valve	Qty(pcs)		3		4	5	6	4	5	6	7	8
	Spec(inch)		1½						2½
Specification of filter bag Φ130×2450
Filter material based on flue gas properties
Filtration speed 0.8-2.0:adjustable
Negative pressure≤6000
Resistance:1470-1770
				Inlet dust concentration<200					Inlet dust concentration <1000
Blowing pressure:0.5-0.7
Compressed air consumption				0.27	0.37	0.46	0.55	1.2	1.5	1.8	2.1	2.4
Air-locking unit:adjustable
Screw consumption				No					Adjustable26.5
Area of heat preservation				26.5	34	41	48.5	70	94	118	142	176

...
