Low Cost VSI Crusher Sand Making Machine
Introduction of vertical shaft impact crusher/VSI Crusher
Sand making machine is also called vertical shaft impact crusher, which is widely used in mine, Sandstone,
bauxite, quartz sand,etc. It has the features of high crushing ratio, energy-saving; crushing mid-hardness and ultrahard materials; final product is cubic; low environment pollution.
Features of vertical shaft impact crusher/VSI Crusher
1) Reasonable and simple structure,low operating cost;Lower failure rate
2) Low energy consumption, high yield,big crushing ratio;
3) Little affected by the moisture content;Easy maintenance
Low Cost VSI Crusher Sand Making Machine
Advantages of vertical shaft impact crusher/VSI Crusher
1. High crushing ratio-95%;
2. Easy to install; easy maintence; low investment
3. The granularity of final product:3-5mm 60% ;1--3mm 30%;<1mm 10%
4. Widely used in sand making production line;road,etc.
Maintenance of vertical shaft impact crusher/VSI Crusher
1. Regularly stop to open the observation door observation.
2. the the Sand transmission triangle tape tension force size should be adjusted as appropriate to ensure that the triangular tape Force uniform, two-motor drive, both sides of the triangle tape packet matching, so that
each group length as much as possible, square to ensure that the sand making equipment is energy efficient;
3. Check the machine and add the grease often.
4. Sand lubrication for dry oil lubrication, the amount of the bearing cavity half to two-thirds of each work of a group, add the right amount of grease.
5. Staff should stay away from the equipment before operating For more on the repair, you must power-off.
Low Cost VSI Crusher Sand Making Machine
Technical parameter of vertical shaft impact crusher/VSI Crusher
Model |
Impeller Speed |
Max.Feed size |
Capacity |
Power |
Weight |
Overall Dimensions |
600 |
2000-3000 |
30 |
12-30 |
2x30 |
5.6 |
2800x1500x2030 |
750 |
1500-2500 |
35 |
25-55 |
2x45 |
7.3 |
3300x1800x2440 |
900A |
1200-2000 |
40 |
55-100 |
2x55 |
12.1 |
3750x2120x2660 |
900B |
1000-1450 |
40 |
65-130 |
2x75 |
13.6 |
3750x2300x2090 |
1050 |
1000-1700 |
45 |
100-160 |
2x(90-110) |
16.9 |
4480x2450x2906 |
1250 |
850-1450 |
45 |
160-300 |
2x(132-180) |
22 |
4560x2650x3716 |
1350 |
800-1193 |
50 |
200-360 |
2x(180-220) |
26 |
5340x2940x3650 |
Production Line We Offer:
1) Stone Production Line
2) Beneficiation Production Line
3) Sand-making Production Line
4) Cement Production Line
5) Gypsum Production Line
6) Lime Production Line
7) Drying Production Line
8) AAC Production Line
9) LECA Production Line
Our Services:
1. Proving beneficiation technology and consultation;
2. Raw ore testing and evaluation;
3. Site chosen consultation and evaluation;
4. Site design and layout design
5. Installation, erection,and commissioning instruction;
6. Workers training

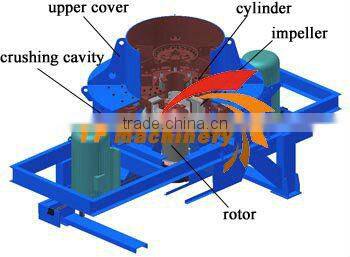

Structure of vertical shaft impact crusher/VSI Crusher
Low Cost VSI Crusher Sand Making Machine
....
