1-10TPH Wood logs crusher/wood chips hammer mill
Raw material used for wood logs crusher/wood chips hammer mill
Material can be wood logs,wood chips,wood waste, straw, palm fiber, all other wood waste material ,after crushed the material would be less than 5mm sawdust or powder shape ,which can make pellet or briquette .
There are two different kinds of wood crusher in Yufchina company:

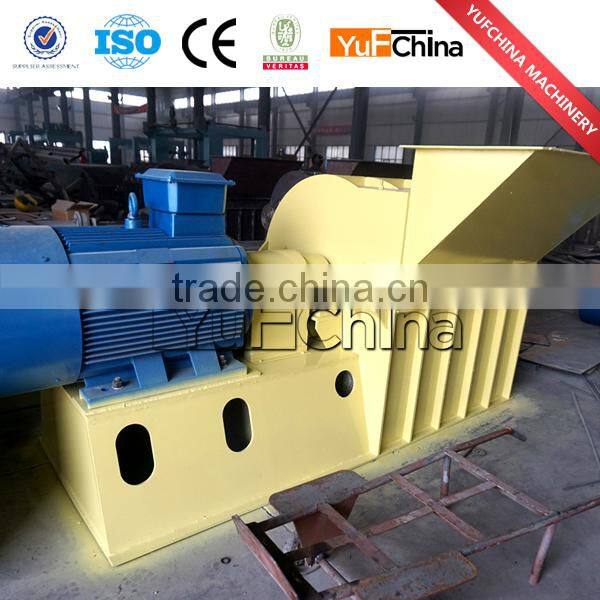

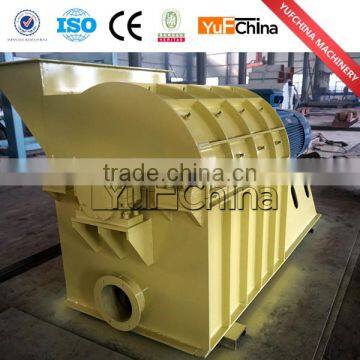

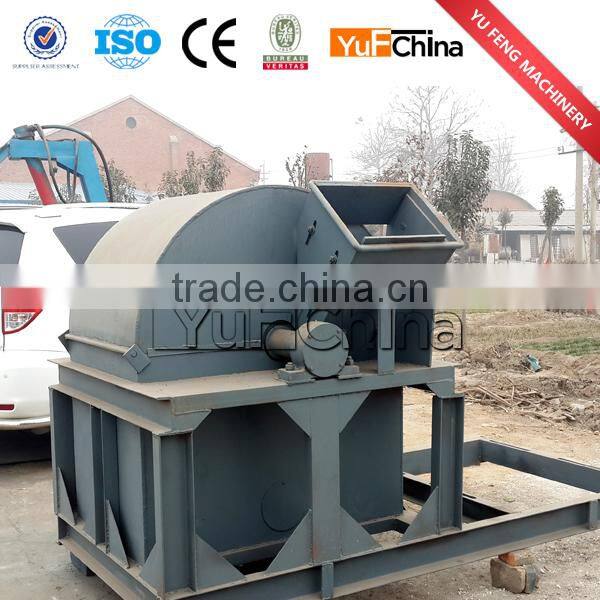

1.wood crusher machine-which will crusher wood logs into less than 5 mm sawdust size

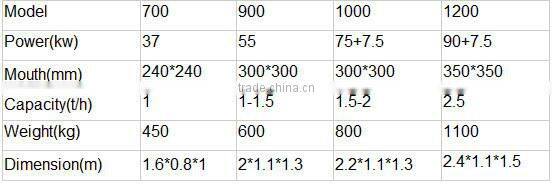

Specification of wood crusher machine

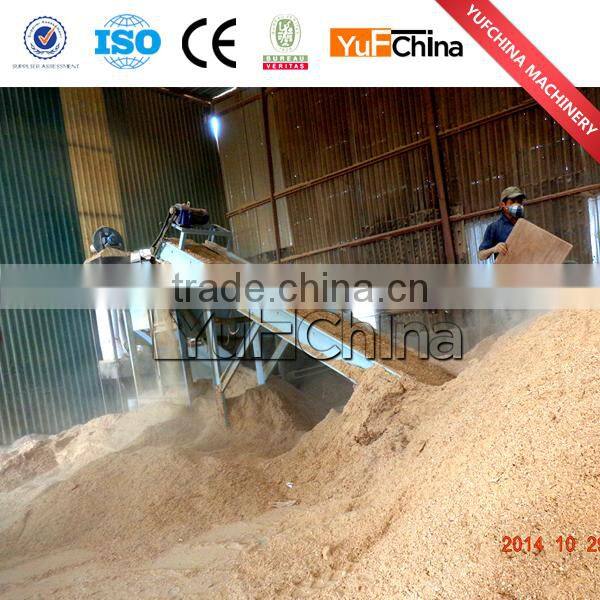

The basic process of making wood sawdust from wood logs:
First ,The wood log diameter shall smaller than the mouth of wood crusher.
Second,We put the wood log directly in to wood crusher machine mouth ,with rotation blades and hammer shaft ,the log will crushed gradually and draged into the crusher blades. In the crushed chamber ,the wood log chipped by the blades first ,then then the chipped wood chips hammed by the rotation hammers ,it become smaller and smaller until it can come out from the bottom screen get the fine sawdust.
Wood chipping first, making sawdust; second, all of them in one crusher chamber, two connectted process.

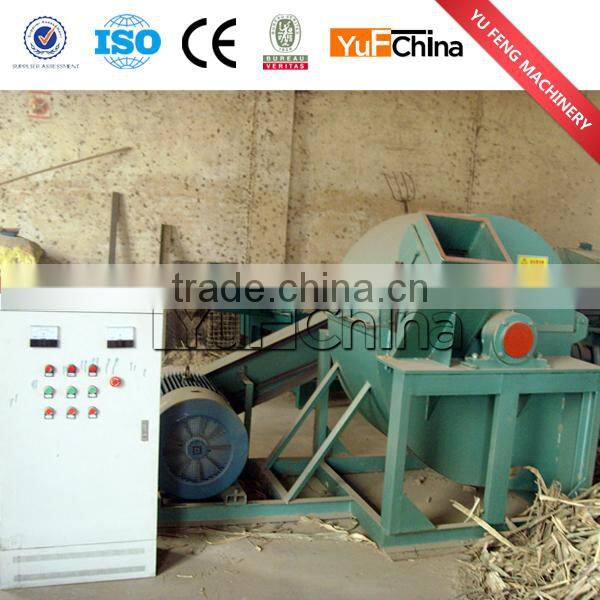

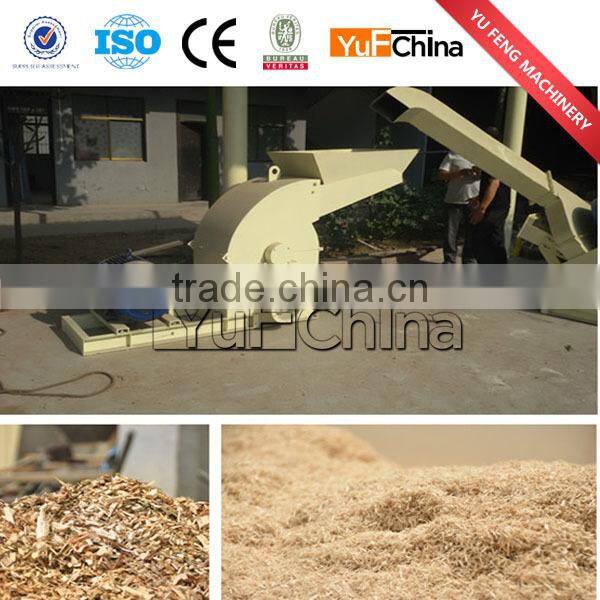

2.wood hammer mill-which will crush wood chips, straw,palm fiber into powder shape size: less than 5mm
The basic process of making wood powder from wood chips:
First ,We need to dry the wood chips by dryer or by sunshine make sure the moisture <25%,this is easy to crushed to sawdust shape.

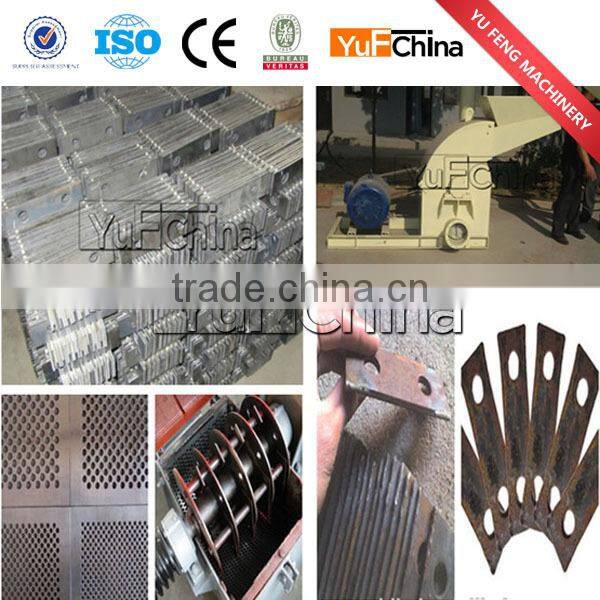

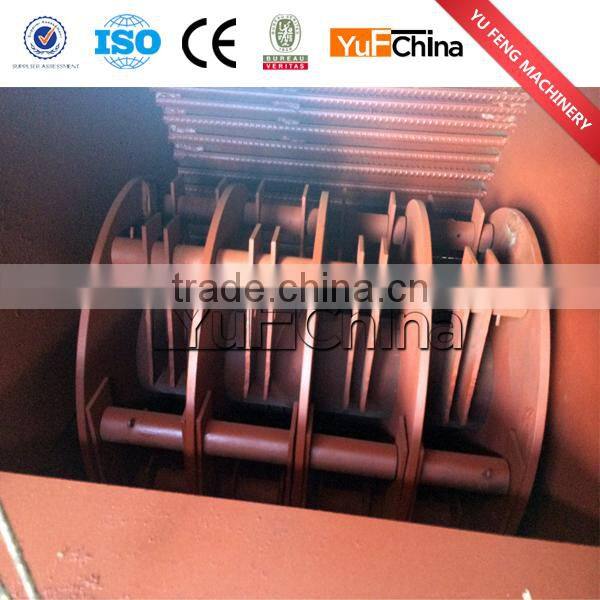

Second,We need a wood crusher machine (Hammer type),wood chip crusher with hammers in the rotation plate,when motor rotation drive the spindle rotation,the hammers on spindle rotation and hit the wood chips in to small pieces,the hammers rotation and hit the wood chips one circle by one circle ,until the wood chips size get the standard of screen hole, then small pieces wood chips(sawdust) come out .
Other material for this wood hammer mill
Rice straw, alfalfa, peanut husk, rice husk ,coffee husk, branch, thin wood board and other materials into particle or powder.
Features of wood hammer mill
Rational sturcture, reliable and durable, easy to operate, simple maintenance, lower noise, high efficiency and less energy consumption.
Specification of wood hammer mill
Model |
60-6 |
80-8 |
80-12 |
90-15 |
Power(kw) |
37+7.5 |
55+11 |
90+15 |
132+15 |
Capacity(t/h) |
1-1.2 |
1.5-2 |
2-3 |
3-4 |
Hammer qty(pc) |
56 |
80 |
180 |
240 |
Dimension(mm) |
1.8*0.9*1.55 |
2.2*1.8*1.5 |
2.3*2.3*1.5 |
2.5*2.6*2.2 |

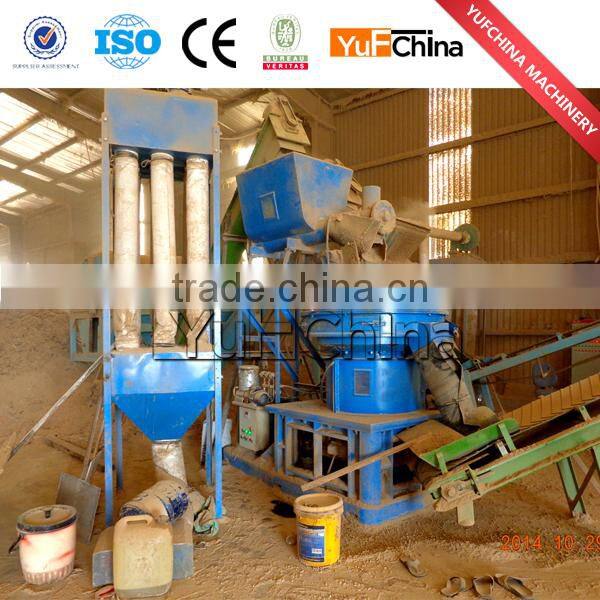

Wood pellet machine making wood pellets from wood sawdust:
