gypsum powder production line

Specifications

Gypsum powder production line
Installment guidance
competitive price
easy to install and operate
low power and labor cost

 gypsum powder production line:



Natural gypsum generally includes dihydrate gypsum and anhydrous gypsum. In order to get the valuable materials, generally, we get semi-hydrated gypsum through heating the dihydrate gypsum. CaSO4·2H2O  heating   CaSO4·1/2H2O+3/2 H2O↑



Working principle of fluidized furnace: the main frame of fluidized furnace consists many radiator oil pipelines which with small diameter. And heat transfer fluids will be fed into the pipelines, the heat will be transferred to inside of the furnace and connect with gypsum powder. Meanwhile, the air produced by ROOTS fan which installed at the bottom of the furnace and steam produce when gypsum powder dehydrated makes the powder like boiling status.





number	Name	type	power KW	number

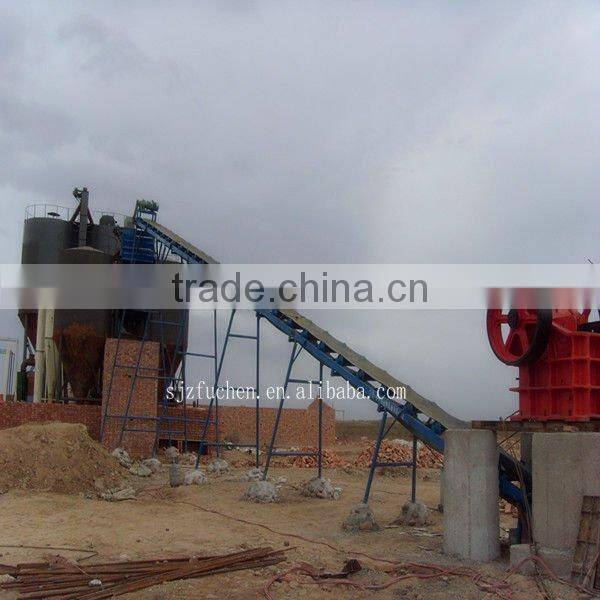

1	Hammer broken machine	800×600	50	1
2	lifter	TH400sh	15	1
3	material bucket	120m3		1
4	Unidirectional helix strobe	400×400		1

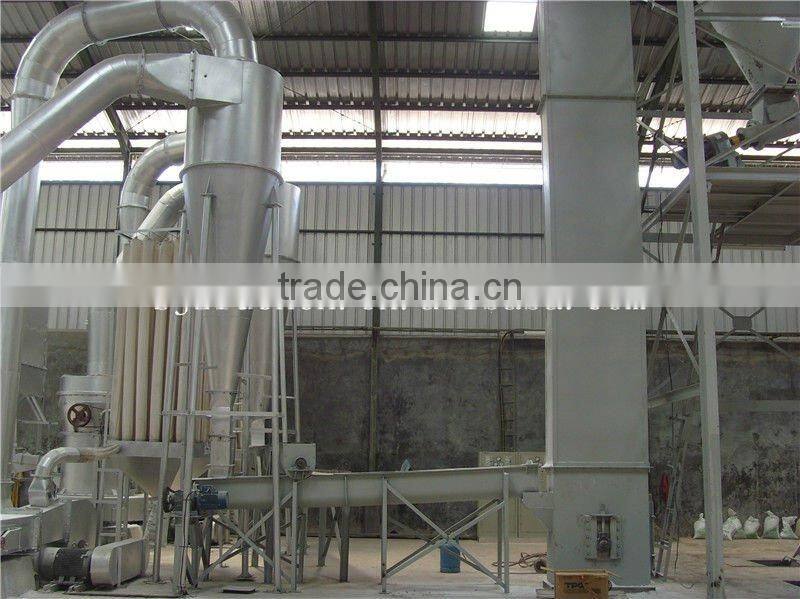

5	The machine to grind the small pieces of stone to powder	5R4119	137.5	2
6	supply the material in spiral	LS400	4	1
7	Helix transport machine	LS400	4	1
8	lifter	TH400sh	15	1
9	Cushion store	50m3		1
10	Tube helix transport	Φ300	5.5	2
11	Boiling stove	2.2×2m	30	1
12	Static dust remover	0.72×12m		1
13	Chain transport machine	FU270	7.5	1
14	Helix transport machine	LS400	7.5	1
15	store	200m3		4
16	Unidirectional helix strobe	400×400		4
