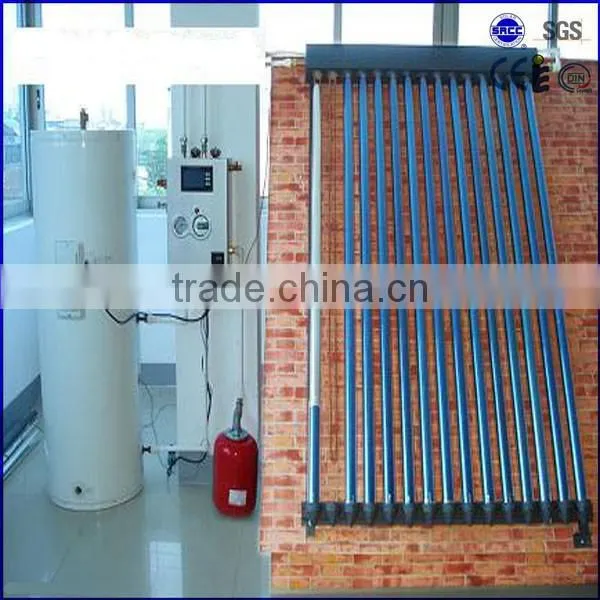

split U pipe solar water heater
- 200 Unit / Units per Month
- Shanghai
- T/T
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Sky Genius | Model Number: | SGRB |
Specification: | Normal | Application: | Home | Output Voltage (V): | 220V |
Solar Power (W): | 800W / m2 | Work Time (h): | 72 |
Product Description
solar heating system
A 50/50 propylene glycol and water mixture from the collectors through a coil of pipe in the solar tank, and then is pumped back through the collectors. The potable water is warmed by heat transfer through contact with the pipe. These systems are pretty much the only choice in very cold climates. When there is not enough energy for sun, an electrical or gas back up element will be automatically switched on by controller.
1.Outer board: aluminum-alloy
2.Main pipe of U-type tubes:22*0.8mm,branch pipe of U-type tubes:8*0.6mm
3. Temperature-warmth layer:mineral wool OR by polyurethane
4. Bracket:Aluminium-Alloy , thickness 1.5mm
5. Vacuum tube : 3-HI solar vacuum tube ( length:1800mm,diameter:58mm or Length:1500mm, diameter:47mm)
1.Solar collector could be put with any angle, could be used for balcony type
2.Can operate with water pressure up to 0.6MPa
3.Can be combined with existing energy source
4.Storage do not need be installed above the collector
1.Simple Installation, no maintenance, effective operation
2.Easy retrofitting to existing systems
3.Suitable for single and multiple solar heating application systems
4.Preferred option for extremely cold areas and questionable water quality
5.Incoming potable water is routed to the solar storage tank
6.Porcelain enamel or SUS316 stainless steel storage tank with electrical or gas back up
7.Double-walled copper coil heat exchangers in storage tank prevent contamination of household water
Tank model | 100L | 150L | 200L | 250L | 300L | 400L | 500L |
Inner tank diameter(mm) | φ370 | φ370 | φ470 | φ470 | φ470 | φ600 | φ600 |
Water tank diameter(mm) | φ470 | φ470 | φ560 | φ560 | φ560 | φ700 | φ700 |
Material and thickness of | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
Material and thickness of | Galvanized Steel | Galvanized Steel | Galvanized Steel | Galvanized Steel | Galvanized Steel | Galvanized Steel | Galvanized Steel |
Insulation thickness(mm) | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm | 55mm |
copper coil inlet & outlet diameter | 1/2 inch | 1/2 inch | 1/2 inch | 1/2 inch | 1/2 inch | 1/2 inch | 1/2 inch |
inlet & outlet diameter | 3/4 inch | 3/4 inch | 1 inch | 1 inch | 1 inch | 1 inch | 1 inch |
Heat-exchange area of upper coil(m2) | (none) | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 |
Heat-exchange area of bottom coil(m2) | 0.6 | 0.6 | 0.6 | 0.7 | 0.7 | 0.8 | 0.8 |
Subsidiary heating power | 2.0 KW | 2.0 KW | 2.0 KW | 2.0 KW | 2.0 KW | 3.0 KW | 3.0 KW |
Overall dimension(mm) | φ470*1040 | φ470*1440 | φ560*1250 | φ560*1520 | φ560*1810 | φ700*1540 | φ700*1850 |
Packing size(mm) | 550*550*1120 | 550*550*1500 | 640*640*1330 | 640*640*1580 | 640*640*1870 | 780*780*1630 | 780*780*1950 |
Weight (Kg) | 34 | 48 | 55 | 60 | 69 | 78 | 100 |
Certificate: SRCC, CE, ISO9001, Solar Keymark
