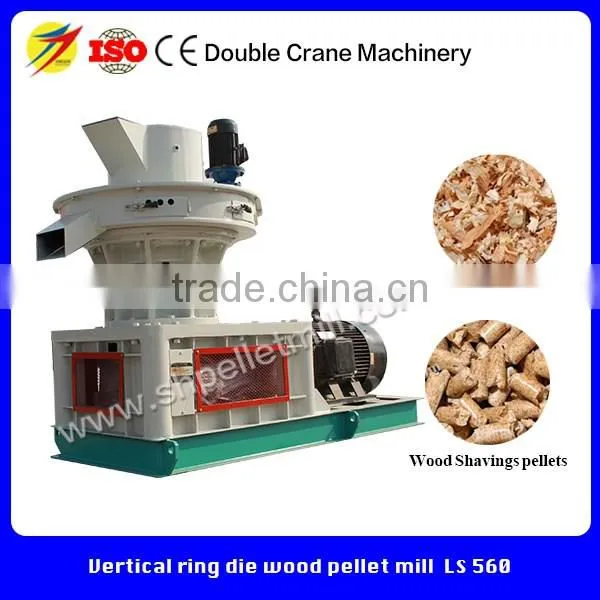

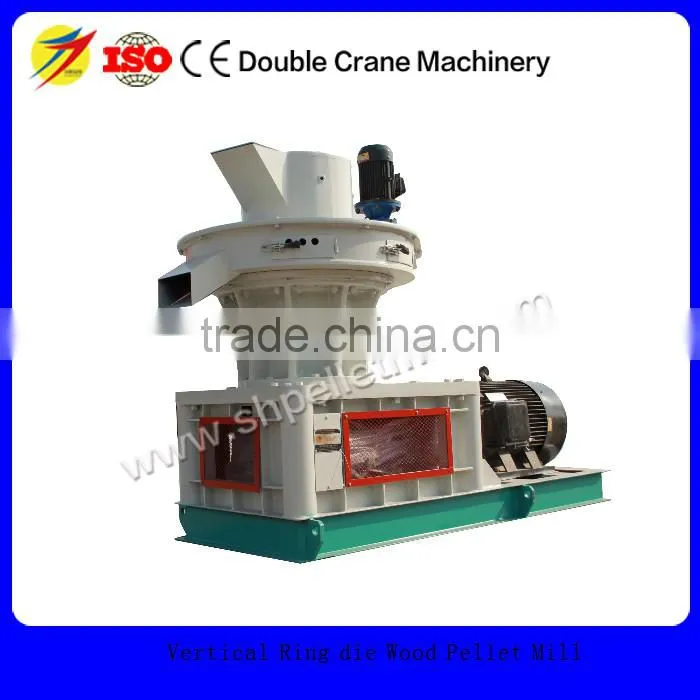

Top rated vertical ring die pellet machine for wood chips,wood sawdust,wood waste
Video on YouTube: https://youtu.be/lQlkJ2l4O3s

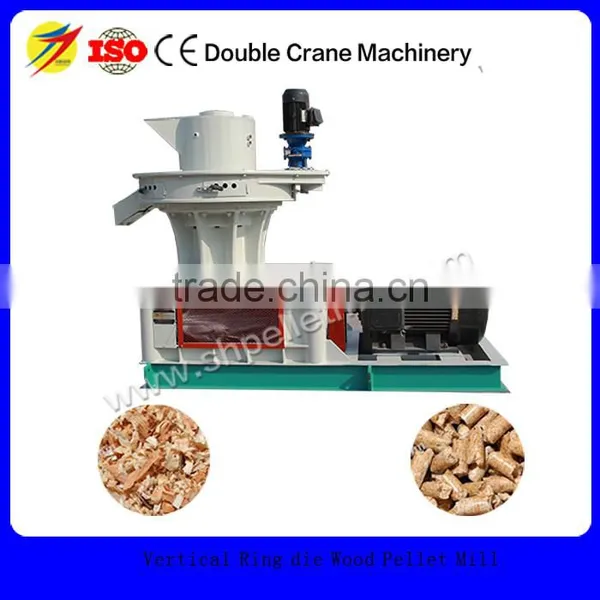

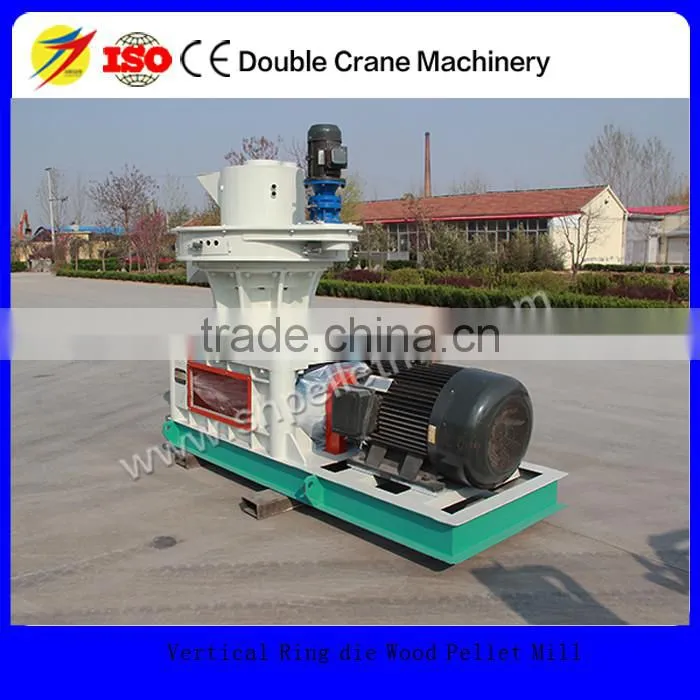

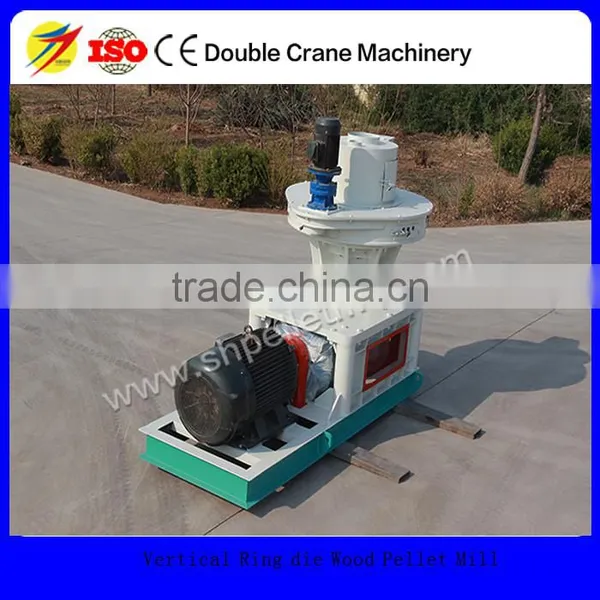

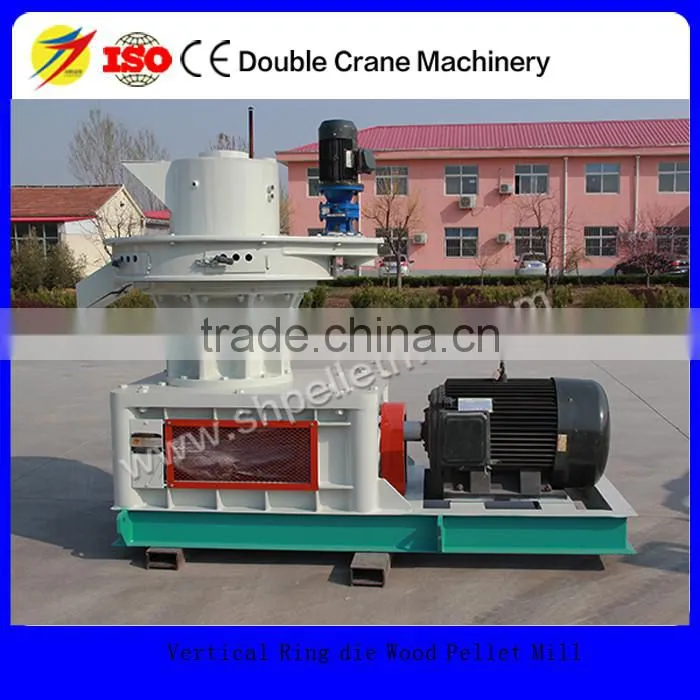

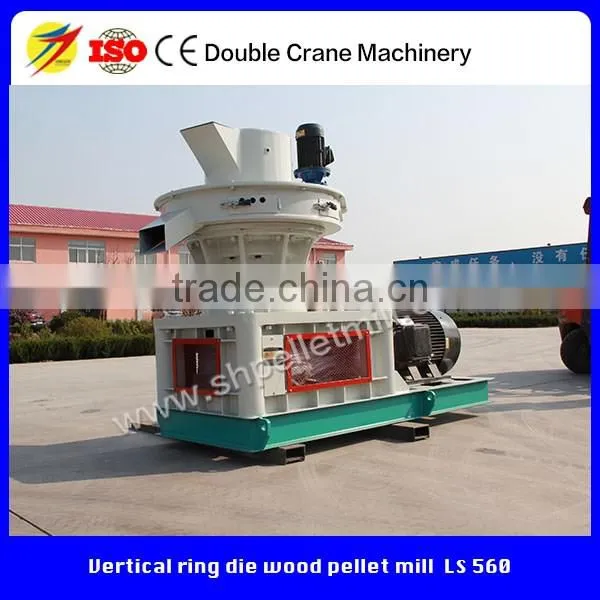

LS-560 Vertical Ring Die Biomass Energy Pellet Making Machine 1-1.5T/H Introduction:

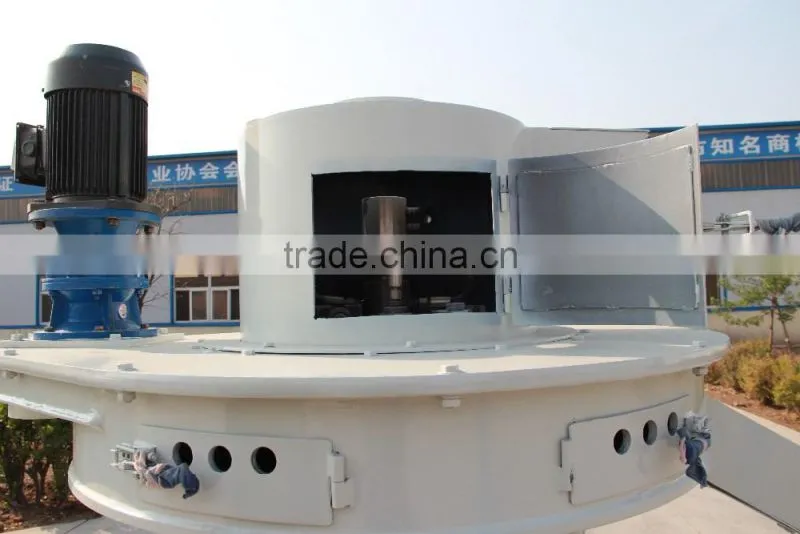

1.Mold upward,vertical feed:This unique design can avoid sawdust be stuck in granulating room,conducive
to heat dissipation.
2.Double-layer ring dies:One ring die can produce two kinds of diameter of wood pellet,such as for 6
or 8mm,meet customer different demand to reduce clients cost.
3.Independent automatic lubrication system:Lubricate the bearing and rollers,increase bearing service life and improve production efficiency,reduce energy consumption.ensure work continuous 24 hours.
4.Siemens frequency conversion motor or domestic brand:International warranty, long service life.
5.SKF bearing or domestic brand:High precision, high speed, low noise, long life.
6.Reducer adopts a sino-foreign joint venture brand:nearly no noise,reliable quality,easy maintenance, long service life,ensure pellet mill work continuous 24 hours.
7.Granulating room cooling system: As the pelletizing process will generate high temperature, it will reduce the service life of die and bearing.By add blower and cyclone,this cooling system can avoid it happened.
LS-560 Vertical Ring Die Biomass Energy Pellet Making Machine 1-1.5T/H Main Model:
Type |
Main Power (kw) |
Oil Pump motor |
Automatic Oiling System |
Dial-out motor |
Feeder Power |
Capacity (T/h) |
Pellet Dia (mm) |
Size(mm) Weight |
Remark |
|
LS450 (59.32kw) |
55 |
0.25 |
0.37 |
1.5 |
2.2 |
0.6-0.8 |
4-12 |
L:2050,W:850, H:1750 Weight:3800kg |
Mold Size 450 mm |
|
LS560 (95.02kw) |
90 |
0.25 |
0.37 |
2.2 |
2.2 |
1-1.5 |
4-12 |
L:2500,W:1200, H:2100 Weight:4500kg |
Mold Size 560 mm |
|
LS650 (185.02kw) |
180 |
0.25 |
0.37 |
2.2 |
2.2 |
1.5-2.5 |
4-12 |
L:2800,W:1200, H:2500 |
Mold Size 650 mm |
|
LS850 (225.02kw) |
220 |
0.25 |
0.37 |
2.2 |
2.2 |
2.0-3.0 |
4-12 |
L:3500,W:1700, H:2900 |
Mold Size 850 mm |
LS-560 Biomass Energy Pellet Making Machine With Automatic Lubricating System:
LS-560 Biomass Energy Pellet Making Machine Export To Thailand Pruduce Palm Pellet:
LS-560 Biomass Energy Pellet Machine Export To Malaysia Produce Rubber Wood Pellet:
LS-560 Centrifugal Ring Die Wood Pellet Machine Attend Biomass Exhibition:

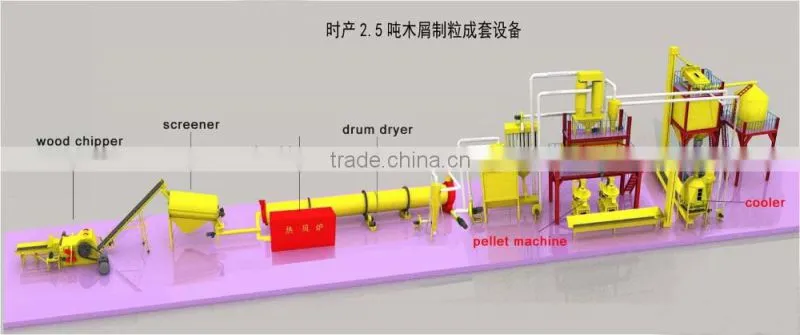

Free Design Turn-key Project Complete Wood Pellet Production Line:
Produced Biomass Fuel Wood Pellet Can Be 6mm or 8mm and other size:
Wood Pellet Machine Have CE & SGS & Patent Certificate:
Packaging & Shipping By Container:
Listed Company Information:
Established in 2005,Shandong Shuanghe Machine Manufacture Co., Ltd. located in Leling High-tech Industrial Park,Dezhou City, Shandong Province,China. Distance from the Dezhou East Railway Station only one hour,Distance from the Jinan International Airport two hours.
Our company is a modernized and experienced enterprise which is specialized in manufacturing and installing of feed and wood pellet machinery,grass machinery,chemical equipments and organic fertilizer production equipments,.etc.
The productivity of our complete wood pellet production lines production capacity ranges from 0.5 ton to 10 tons. Our complete biomass pellet production lines main including wood crusher machines, sawdust drying machines, wood pellet mills,wood pellet coolers, wood pellet screener,wood pellet packing machines and more.
Our company always puts quality in the first place. Ensure supply high quality products and the most professional services.
We welcome your inquire and invite you to contact us and visit our factory for further information on any of our products.
Promise provide customer Best Quality! Best Price! Best Service!
If you're interested in our wood pellet machines, Please kindly reply us the following question:
1. What's the production capacity of wood pellet machine do you want?
R:we can supply wood pellet mill or production line from 0.1-10t/h.
2. What's the size and moisture content of your raw material?
R:All kinds of wood is workable for us,tell us we can design the suitable production line for you,make final
sawdust ideal moisture about 15%.
3. What's the diameter of final wood pellet do you want?
R:We can do wood pellet 4-12mm or more,general customer need 6mm or 8mm.
4. What's the industrial electricity voltage of your country?
R:General 220/380/415V,50/60Hz,3Phase,if not match,tell us we can modify motor.
