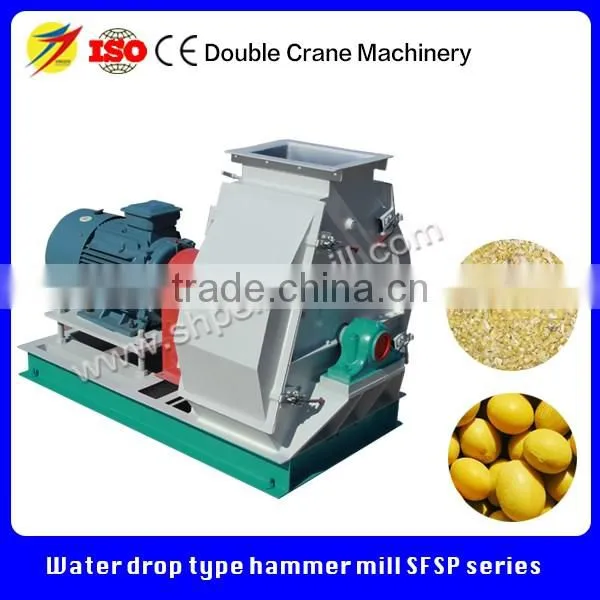

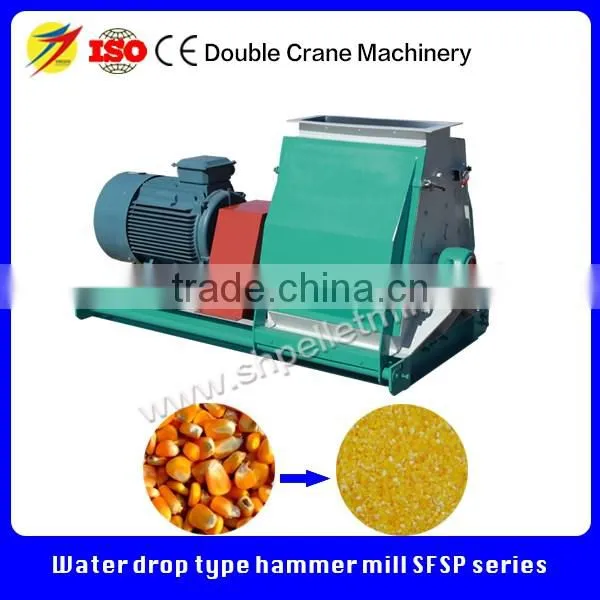

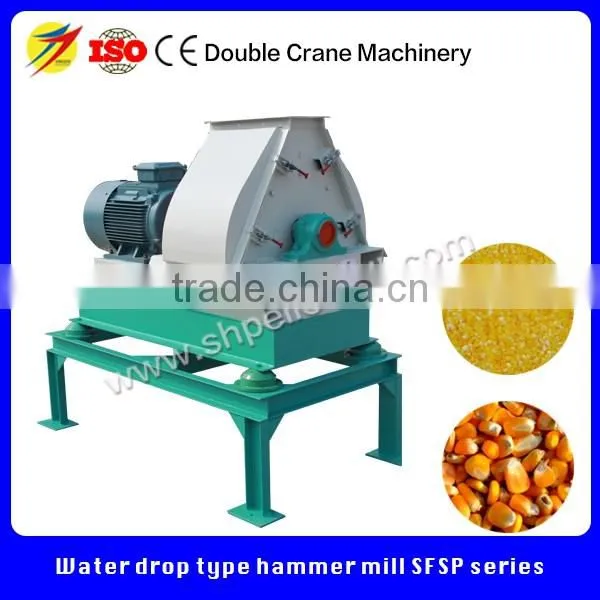

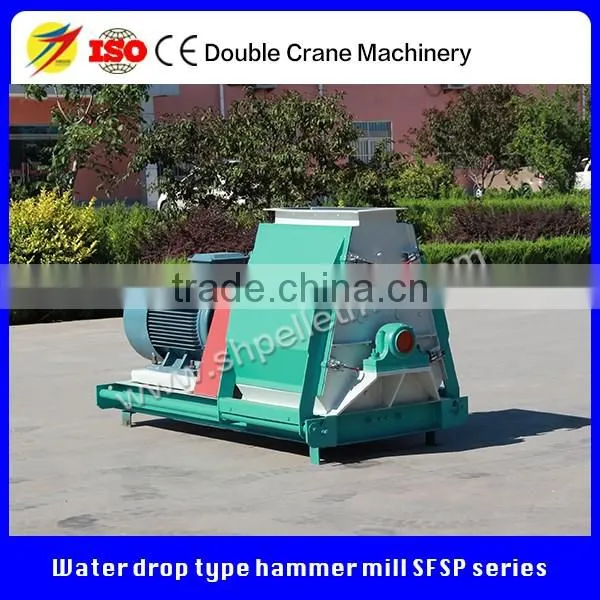

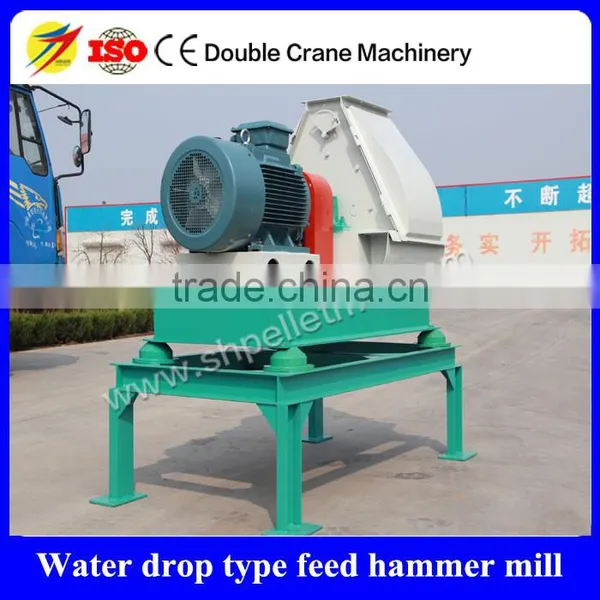

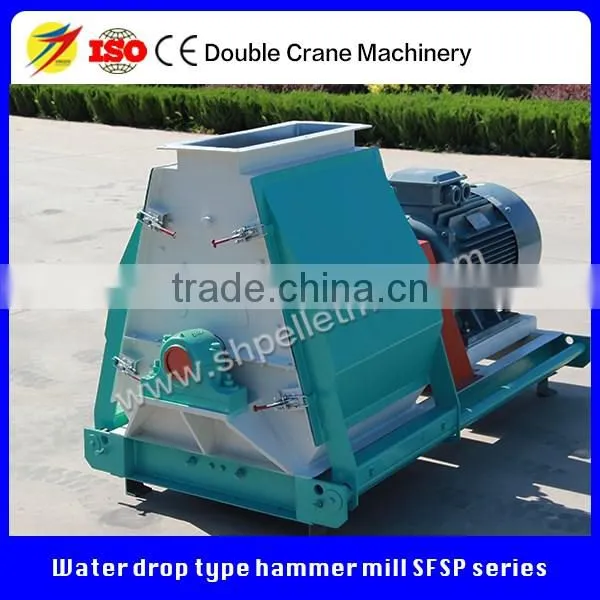

Water drop type industrial chicken cattle rabbit feed mill machine for maize
This type hammer mill called Water drop type hammer mill or grinder,because it shape looks like a drop water,it's body made by carbon steel thinkness 6-10mm,inside including two metal sieve/screener,hammer can be 30pcs,
48pcs,60pcs,90pcs,etc.The structure is reasonable, durable, safe and reliable, easy to install, easy to operate, small vibration and high efficiency.Mainly used to crush grain feed (corn,soybean,etc) and crush rice husk,corn cob,straw pieces,and wood chips,etc.
Features of the Hammer Mill Feed Grinder Equipment:
This series of crusher adopts welded steel structure,and it’s motor and hammer mill rotor are mounted on a single base, using pin coupling direct drive, rotor passed dynamic balance test, and can work in reverse.The
operating door is with safety interlock device to ensure that the operation door can not be opened when rotor
is rotating.The mill feed inlet is at the top,which is compatible with various forms of feeding mechanism,
hammer is arranged symmetrically. The structure of machine is simple and durable, safe and reliable, easy to
install, operate and maintain,and the vibration is light and productivity is high .
There are coarse and fine grinder series to choose from,which is suitable for finely pulverizing of fiber, fine
materials, high moisture materials and brittle materials,with high yield and low energy consumption.
Poultry Feed Hammer Mill Feed Grinder Main Specification:
Item Name |
SFSP56*32 |
SFSP56*40 |
SFSP60*60 |
SFSP66*80 |
|
Motor Power(KW) |
22/30 |
30/37 |
55/75 |
90/110 |
|
Production Capacity |
1-2t/h |
3-5t/h |
4-10t/h |
5-15t/h |
|
Hammer Quantity |
30pcs |
48pcs |
70pcs |
90pcs |
|
Screen Quantity |
Screen 2pcs,high yield,high grinding efficiency |
||||
Screen Hole Diameter |
1.5,2,4,6,8,10,12mm |
||||
Rotor Diameter (mm) |
560 |
560 |
600 |
660 |
|
|
Crushing Chamber Width (mm) |
320 |
400 |
600 |
800 |
|
Mainshaft Speed ( rpm ) |
2970 |
2970 |
2970 |
2970 |
|
|
Hammer of Line Speed(m/s ) |
103.8 |
98 |
100 |
105.8 |
|
Bearing Number. |
2312 |
2314 |
2214 |
2218 |
|
Screen Size(mm) |
840*270*2 |
712*395*2 |
850*618*2 |
850*795*2 |
|
Anti-vibration Pad |
4 |
4 |
4 |
6 |
|
Carbon Steel Shell Thinkness |
6mm |
6mm |
10mm |
10mm |
|
|
Dimension and Weight |
Length(mm) |
1410 |
1550 |
1900 |
2500 |
Width(mm) |
720 |
860 |
900 |
1100 |
|
Height(mm) |
970 |
1130 |
1250 |
1350 |
|
Weight |
0.8Ton |
1Ton |
1.5Ton |
2Ton |
|
1.Wide chamber feed hammer mill,unique design,novel struture and easy operation.
2.The effective material crushing circulation layers can make twice crushing to ensure uniform fineness of the finished products,two metal sieve can help improve crush efficiency.
3.Avariety of sieve sizes are available to choose 1.5-12mm,flexible opening device and elastic pressure sieve mechanism,convenient to change hammer and sieve and maintain.
4.The rotor is running smoothly through balance correction,low noise and excellent performance.
5. Security door type operation, to ensure the door can't open during rotor rotates.higher safety.
6.Water drop type hammer mill can crush feed and sawdust,etc.Multi-function usage.
SFSP:56*32 Corn Grinder Export To South Africa Customer:
Hammer Mill Structure and Flow Chart:

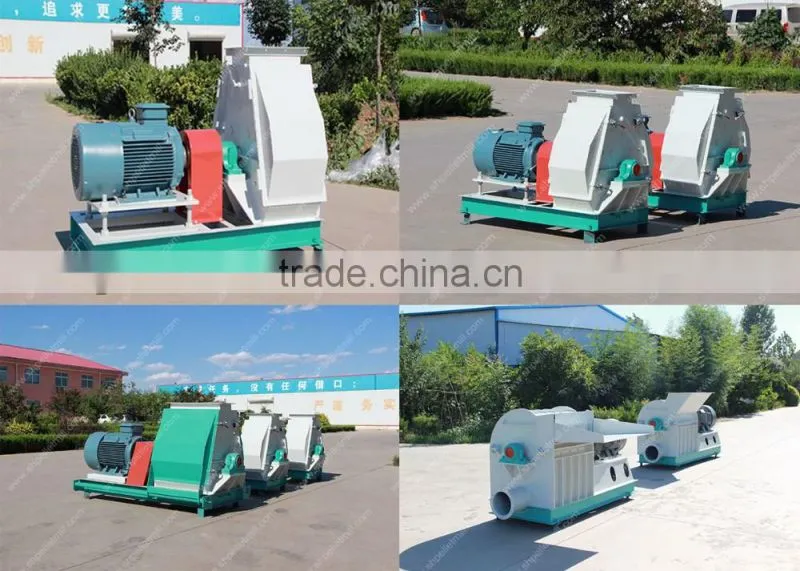

Corn Hammer Mill Gridning Machine Main Model:
Corn Hammer Mill Gridning Machine Packed By Wooden Box:
Listed Company Information:
Established in 2005,Shandong Shuanghe Machine Manufacture Co., Ltd. located in Leling High-tech Industrial Park,Dezhou City, Shandong Province,China. Distance from the Dezhou East Railway Station only one hour,Distance from the Jinan International Airport two hours.
Our company's factory covers an area of 67000 square meters,registered capital 16 Million RMB. Pass European Union GS
Safety Certification,ISO9001 Quality Management System Certification, Chinese Credit Enterprise Association, AAA Quality
Credit Enterprise Member, Well-known Trademarks In China.
Our company is a modernized and experienced enterprise which is specialized in manufacturing and installing of feed and wood pellet machinery,grass machinery,chemical equipments and organic fertilizer production equipments,.etc.
The productivity of our complete feed/wood pellet production lines production capacity ranges from 0.1 ton to 20 tons. Our
complete biomass pellet production lines main including wood crusher machines, sawdust drying machines, wood pellet mills,wood pellet coolers, wood pellet screener,wood pellet packing machines and more.
Our company always puts quality in the first place. Ensure supply high quality products and the most professional services. We welcome your inquire and invite you to contact us and visit our factory for further information on any of our products.
Promise provide customer Best Quality! Best Price! Best Service!
-------------------------------------------------------------------------------------------------------------------------------------------------------------------
Hammer Mills For Animal Feed Pass CE Certificate:
Welcome To Contact and Visit Our Company For Further Discussion:
FAQ:
1.Are you manufacturer or trading company?
R:Our company is a manufacturer and public company in China,we have been specialized in this field more than ten years. our company's factory covers an area of 67000 square meters,our company registered capital 16.3 Million RMB.
2.How can your promise the equipment quality?
R:Our company pass European Union GS Safety Certification,ISO9001 Quality Management System Certification, Chinese Credit Enterprise Association, AAA Quality Credit Enterprise Member, Well-known Trademarks In China.We have professional R&D and production team can promise all equipment is qualifyed befor deliver to customer,we can provide Turn-key project help installation,commissioning and training.
3.If we want to establish a production line,can you help us?
R:Yes,our company can provide turn-key project,our profesional service including free design,training,guidance,onsite installation,and debugging.
If you want to get more information,please contact me,i'm Shine,i will answer your questions in detail!
