complete rice husk pellet making line, straw hay pellet production line

    complete rice husk pellet making line, straw hay pellet production line

 1. Static model, Pinch roller rotation, Material centrifugal, uniformly distributed around
2. 2 layers grinding tool, Up and down dual-use, Reduce cost, Increase benefit.
3. Circular mould, Vertical structure, Conducive to granulating chamber radiator cooling
4. Independent frequency conversion discharge device, to ensure the particles forming rate.
5. Independent lubrication, High pressure filter, Clean and unobstructed.
6. High density granulating molding equipment.

7. Reasonable price

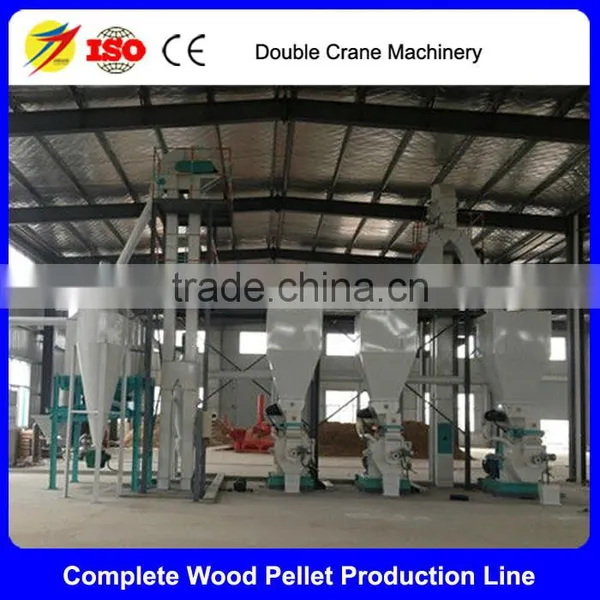

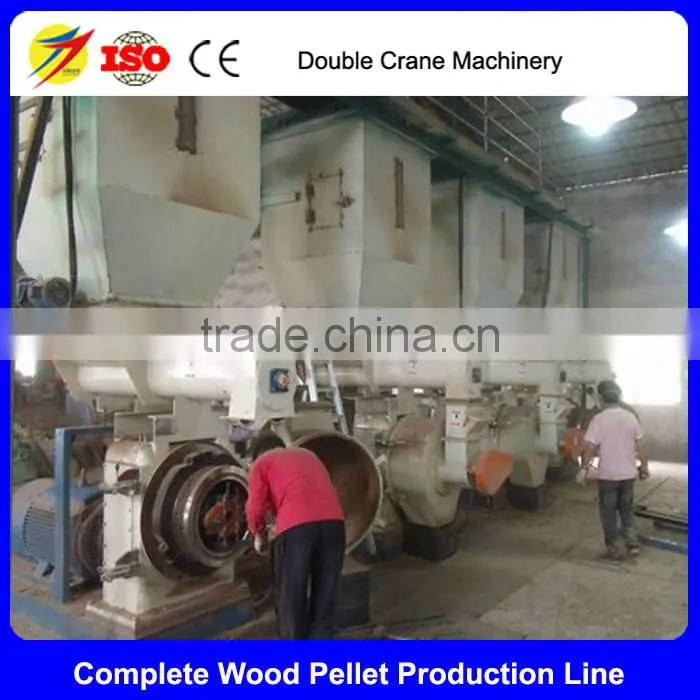

Main structure for complete rice husk pellet making line, straw hay pellet production line

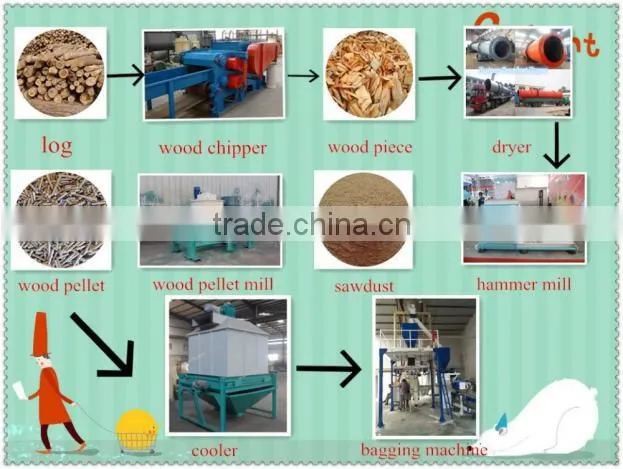

Wood chipping ⇒ drying ⇒wood crushing  ⇒wood pelleting ⇒wood cooling ⇒bagging

Main machines introduction for complete rice husk pellet making line, straw hay pellet production line

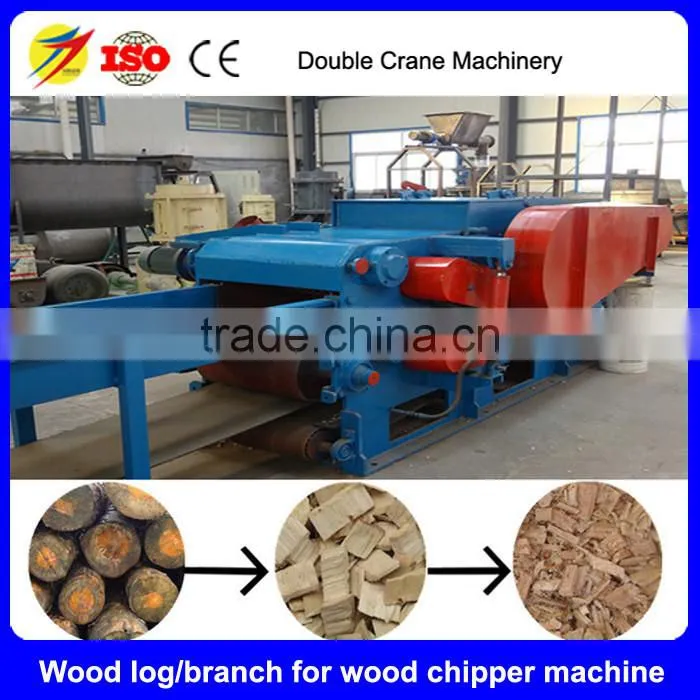

1. Wood chipper

Working principle: wood raw materials enter to touch the cutting blades, as the cutter disc rotates at a high

speed to cut the wood materials, the wood pieces are produced by the high-speed air flow resulting from the

fan blade of the cutter disc inside the cutting chamber.The log and branches are requested to be cutting with

similar thickness and length. The general size is 15-20 mm long and 3-5 thick , although the width is not limited,

it is better not more than 20 mm. The quantified rate is to be more that 75%.The length of the wood piece can

be achieved by adjusting the bottom knife gap to meet the needs of users.

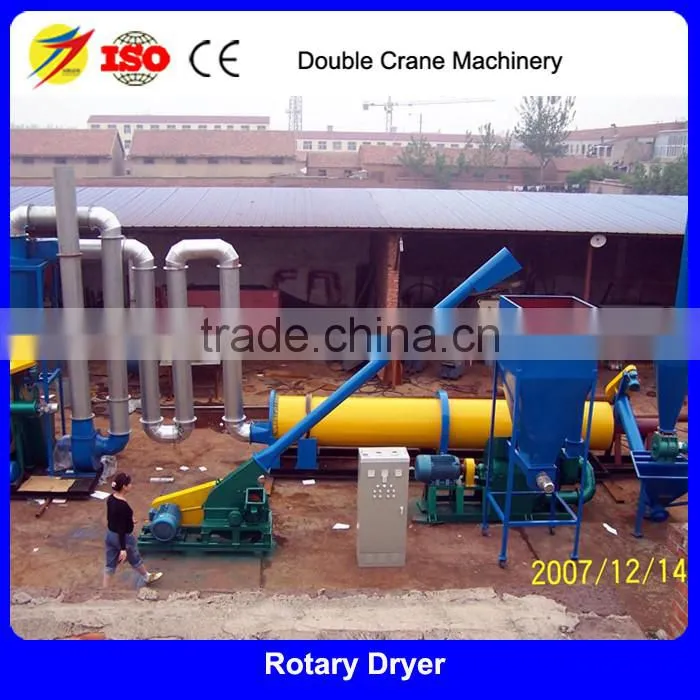

2.Drying

If the raw material is wet (which is typically the case for fresh forest residues, around 50% moisture content),

it has to be dried. In a dryer (generally a rotary drum type one) where the moisture content is reduced to

about 8-10 % .Drum type drying machine comprises a heating device, feeding device, drying device and dust

removing device. The heating device includes a calcining furnace, a blower at the bottom of the calcination

furnace and a hopper on the top of calcination furnace. The hopper is connected with the discharge hole of

the extrusion forming pellet machine through a conveying belt to convey the biomass pellet fuel products as fuel.

The biomass pellet fuel products in the discharging port of the extrusion molding pellet machine is conveyed

directly through the hopper at the top of the calcination furnace into the calcining furnace for combustion and

heating, on the one hand, it adjusts measures to local conditions, use local materials, with no additional heat source;

on the other hand, it can also make specific detecting for the calorific value, combustion rate and thermal efficiency

of the biomass pellet fuel products, so that real-time monitoring of quality and fluctuation of biomass pellet fuel

product can be made.

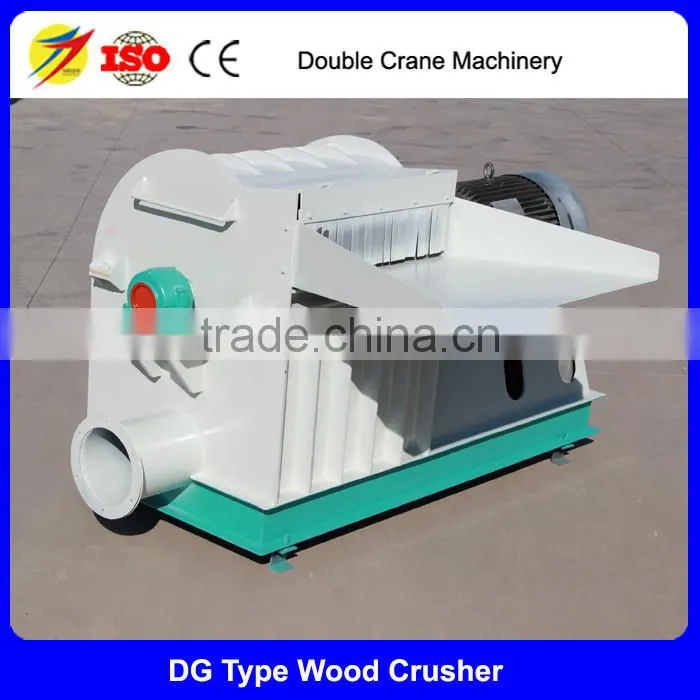

3.Hammer mill

Multi functional hammer mill uses high speed relative motion between fixed fluted disc and movable fluted disc to

crush the materials by combined impacting,friction , it is of simple and firm structure,steady running and good

crushing effect , the materials crushed can be out of the grinding chamber through the sieve to get the different

granularity.It features reasonable design,reliable quality,simple structure,easy operation,small size,  time-saving

and power saving. Direct connecting with motor ensures nversion of motor energy.

The main section is made of wear-resistant materials with special processing for continuous production and

being durable.It is applied for many kinds of raw materials to make biomass pellet such as corn straw,wheat

straw,cotton straw,straw,rice husk,peanut shell,corncob,branch,dry leaf,sawdust and wood waste from timber mill.

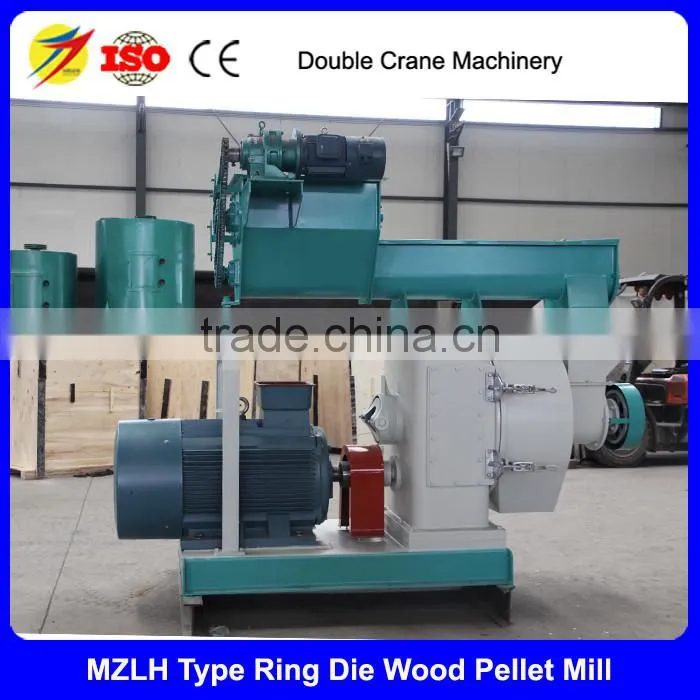

4.Pelleting machine

After crushing, the powder is then moved by conveyor to a pellet mill, where the pellets are extruded through the

action of rollers acting on a perforated matrix. On the outer side of the latter, a knife cut off the pellets at the

desired length.Two main types of pellet presses can be distinguished: flat die and ring die types. The flat die type

has a circular perforated disk on which two or more rollers rotate and force the material through the holes.

The ring die press features a rotating perforated ring on which rollers press on the material to the inner perimeter.

The most common output range for pellet presses is 3-5 t/h. According to manufacturers, pellet dies have an

average service life of 1,000-1,500 hours, corresponding approximately to 10,000 tons.

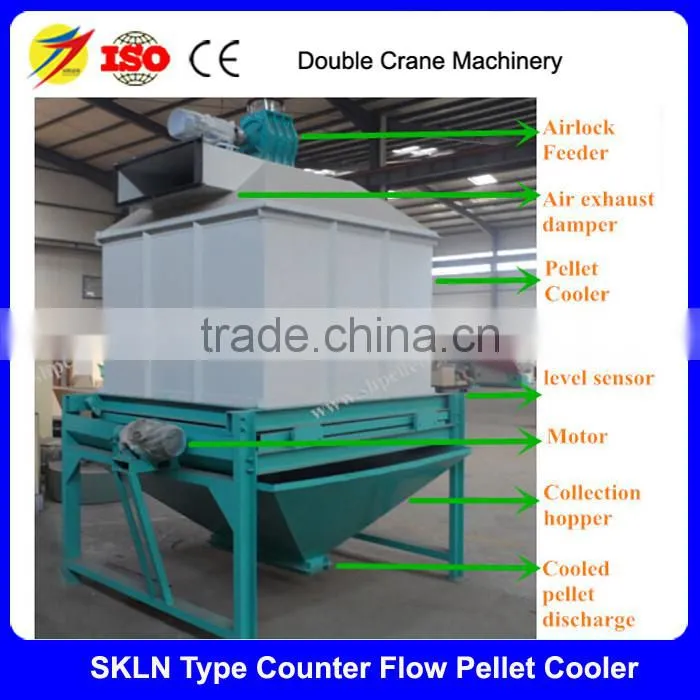

5.Cooling machine

After pelleting, pellets are very hot (90-100°C) and are immediately air quenched down to 25°C. This sets up the

lignin and hardens the product, and contributes to maintain its quality during storage and handling. Finally, pellets

are sieved so as to separate the residual fines which are generally re-used in the process. Dust free pellets are then

ready for storage or for automatic packing (in 25 kg bags or big bags - 1 to 1.5 m3).

Application for complete rice husk pellet making line, straw hay pellet production line

The pellet machine is widely used in biomass-energy fuels plant, power plant, wood processing plant,

fertilizer plant, chemical plant etc.Pellet is the fuel of biomass, used for heating of houses and other rooms.

Due to its thermal properties and use convenience it is counted to the most effective energy sources.

It is also ecologic and environmental friendly fuel. The CO2 - emission while burning, is the same as

the CO2 quantity absorbed by the tree when growing up. A very little quantity of ash, left after

burning (about 1%), can be used as natural fertilizer.

Raw material and wood pellet for complete rice husk pellet making line, straw hay pellet production line

Biomass pellet fuel, also called biomass moulding fuel (or "BMF" for short ) uses agricultural and forestry

wastes such as straw, sawdust, bagasse, rice bran and cotton stalk, cottonseed skins, weeds, crop stalks

and other plant wastes, biomass, rice husk, paddy straw, sunflower stalk, hulls, forestry wastes, wood chips,

chemical waste and many other wastes or solid powder materials. especially low-bonding and unformed materials.

After crushing, mixing, pelleting,drying and other processes, a new clean fuel which is various in pelleted can

be burnt directly..The biomass pellet fuel is with high calorific value, burning rate and thermal efficiency.
