Pass CE wood sawdust shaving pellet making machine for sale
Refer Video On YouTube https://youtu.be/lQlkJ2l4O3s

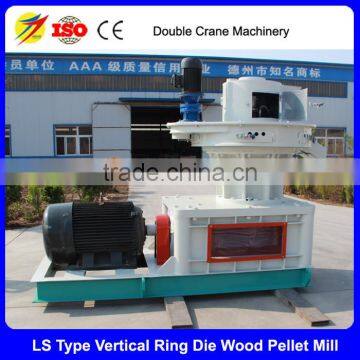

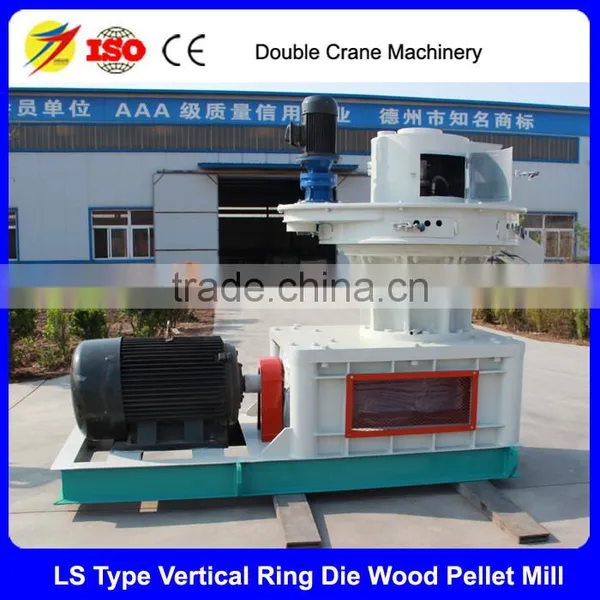

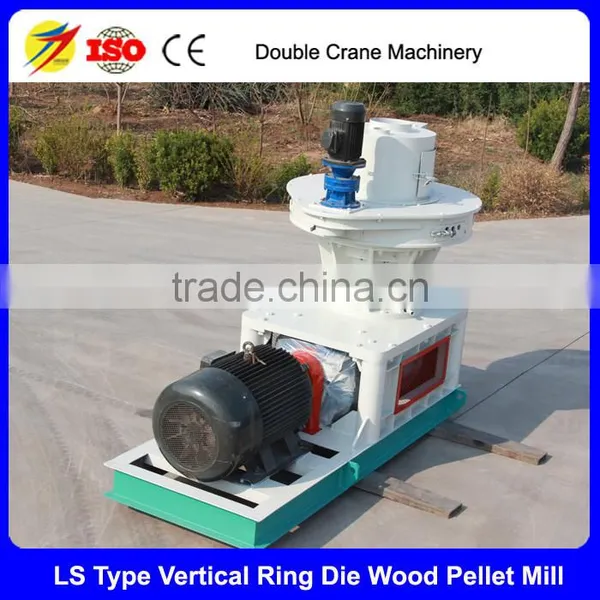

Double Crane Brand LS-Type Wood Sawdust Pellet Mill Machine Brief Introduction:
1. LS-Type Belt drive biomass ring die wood pellet mill is part of a hard wood pellet ring die pellet mill,it is
suitable to produce all kinds of biomass wood pellet production.Such as sawdust, crop straw (rice straw,wheat
straw, corn stalks, sorghum stalk, soybean stalk, cotton stalk, grape straw, peanut seedlings, and sunflower stalk), rice husk, grass powder, shrubs, wood branches, wood cut-off head, bamboo debris,bagasse, palm sawdust,rubber sawdust,.etc.
2.With compact structure, beautiful appearance, high output, low power consumption, easy maintenance, easy to operate, reliable work, etc.Automatic ring die lifting device easy to replace wearing parts.
3. This biomass pellet machine can produce wood pellet diameter from Φ6-Φ8mm,to meet the needs of different users, and also can customize according to the user.
4. Adopt international advanced manufacturing equipment and processes of steel ring die,new design roller,
long use life, smooth to produce high quality wood pellet product.
5. This biomass wood pellet mill adopts frequency conversion motor feeder with pump lubrication system.
6. This biomass wood pellet mill have ring die lifting device,help customer replace the wearing parts easily.
LS-Type Wood Pellet Mill Main Model:
| Type | Main Motor | Feeder Motor | Dia-out Motor |
Capacity (T/h) |
Pellet Diameter |
Dimension (m) |
Weight (Ton) |
Remark |
| LS450 | 55KW | 2.2KW | 1.5KW | 0.6-0.8T/H | 6 or 8mm | 2.1*0.9*1.8 | 3Ton | Ring Die Size 450mm |
| LS560 | 90KW | 2.2KW | 1.5KW | 1-1.5T/H | 6 or 8mm | 2.5*1.2*2.1 | 3.8Ton | Ring Die Size 560mm |
|
Additional Equipment |
Full set of Dust collection cyclong system,including cyclone and fan; Full set of Automatic lubrication system,with power 0.37kw and control cabinet. |
|||||||
| Application | Produce all kinds of biomass wood pellet,straw pellet,etc. | |||||||
LS-Type Biomass Fuel Wood Sawdust Pellet Making Machine Main Advantage:
1.Mold upward,vertical feed: This unique design can avoid sawdust be stuck in granulating room,conducive to heat dissipation. Ring die fixed,roller assembly roating,sawdust material centrifugal,enenly distributed around.
2.Double-layer ring dies: One ring die have double-layer ring die,save wearing parts purchase cost.
3.Independent automatic lubrication system: Independent lubricate the bearing and rollers,increase bearing service life and improve production efficiency, reduce energy consumption.The roller assembly also have own grease tank,can install enough grease use for more than 8h,double security ensure our wood pellet mill can work continuous 24 hours.
4.Siemens frequency conversion motor or domestic brand economical motor: International warranty, long service life,for domestic brand motor,low invest,high returns.
5.SKF bearing or domestic Harbin brand economic bearing: High precision, high speed, low noise, long service life,low production cost.
6.Reducer adopts a sino-foreign joint venture brand: Nearly no noise,reliable quality,easy maintenance, long service life,ensure work continuous 24 hours.
7.Granulating room cooling system: As the pelletizing process will generate high temperature, it will reduce the service life of die and bearing.By add blower and cyclone,this cooling system can avoid it happened.
8.Indenpend ring die lifting device: Including wearing parts maintenance lifting device,so very convient to replace new ring die and roller assembly by lifting device,save labor and maintenance time.
LS-Type Wood Pellet Mill Can Plus Ring Die Lifting Device: Refer Picture
5T/H Wood Pellet Production Line Design Picture Located in Our Company Exhibtion Hall:
Produced Wood Pellet Picture Show:
Full Container or Wooden Box Packaging & Shipping Picture:
About Professional Service:
1.We devote to all-round service of all the products from inquiry,production,shipment to maintenance.
2.Our professional service include:free design,offer,provide training,guidance,onsite installation,and debugging.
3.After selling, we provide the warranty of one year and free technical guidance and spares parts supply.
4.If your equipments have any problems, we will help you to solve online or onsite in time.
5.Welcome oversea agents to join us expand internation market.
6.Welcome to contact us for further cooperation information!
Biomass Energy Pellet Machine Pass CE Certificate:
Double Crane Machinery Area 67000m² Office Buliding And Workshop Pictures Show:
Shandong Double Crane Machinery Manufacture Co.,Ltd. is located in economical and technological development zone,
Leling city,Shandong province,very close to the expressway from Beijing to Shanghai.Our company is the high and new technological enterprise dedicated to manufacture feed pellet machines and biomass pellet machines to worldwide users.
Sticking to the product developing ideas of simplicity,perfection,quality and innovation,we have been always focused on designing and manufacturing feed pellet machines and biomass pellet machines since the foundation in 2005.We had cooperated with domestic famous universities like Shandong University,Jinan University and Shandong Agricultural University in feed pellet production line and biomass pellet production line research and development since 2008.We had obtained more than 30 patents and successfully developed 8 series of products,including 60 different kinds of machines.
In the feed pellet industry ,we had achieved advanced level in man-machine design,functional design,automatic control
and user experience and became the professional pellet mill manufacturer in China.We have strong competitive advantages in feed production line with the capacity of 1-30 tph and biomass pellet complete line with capacity of 1-50tph.Until now,we had installed more than 1200 sets of machines worldwide.
In recent years,our company continuously increase investment.We had invested up to 60 million Yuan to build 19,200 square meters manufacturing base and 10 million Yuan for technological innovation,in-depth automatic and integrative technology development.These investments have greatly promoted the upgrading of the machines,offering best quality solutions for feed industry and biomass pellet industry.Double Crane Machinery is willing to become your partner with our high price-performance products,excellent quality and perfect after-sales service.
Join our company and win our future.
Double Crane Machinery Workshop Show:
If you're interested in our equipment, please kindly reply us the following question:
1. What's the wood pellet mill production capacity do you want?
R:We can supply wood pellet mill or pellet mill production line with output from 0.2-20t/h.
2. What's your wood raw material situation?Siz and Moisture.
R:Our wood chipper and hammer mill can crush all kinds of material into wood sawdusts,advise wood moisture <60%,by drum dry can control it moisture around 15-18%,it will suitable to press wood pellet.
3. What's the final wood pellet diameter do you want?
R:Our company wood pellet mill can produce wood pellet with diameter 6mm or 8mm,it also can design according
to customer actual demand.
4. What's your country industrial electricity voltage?
R:General standard motor in China work under 380V,50Hz,3Phase,if not match,tell us we can modify motor.
Welcome to contact Jack to inquire detailed design and offer sheet:
