Leading Technology Mini Pellet Mill Animal Feed Pellet Machine
- Shanghai
- T/T
You May Like
-
Excellent Performance Pellet Making Machine Price Poultry Feed Pellet Machine
-
FDSP Famous Brand Homemade Small Output Chicken Feed Pelletzier
-
Liangyou Zhengda SZLH Serie Factory or Homemade Anmial Feed Pellet Mill
-
Professional Selling Stainless Steel Conditioner Chicken Feed Pelletizer
-
Professional Sales SZLH-x Three Layers Modulators Shrimp Feed Granulator
-
Sell 3-20tph Corn Material Cooling Machine
Product Details
| Condition | New | Place of Origin | Jiangsu, China | |
| Brand Name | FDSP | Model Number | SZLH508 | |
| Type | Feed Pellet Machine | Voltage | 380V/400V/415V 50/60HZ | |
| Power(W) | 110/132/160 kw | Dimension(L*W*H) | 3500mm*1470mm*2800mm | |
| Weight | 4400 kg | Certification | ISO CE SGS | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Level animal feed pellet machine chicken farm porket feed equipment

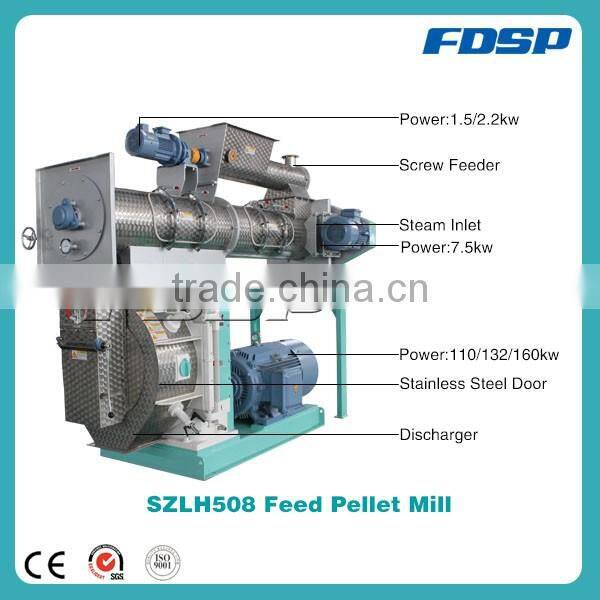

Part exhibition
Main Advantages of animal feed pellet machine
1. High efficiency
Geardriven transmission system and S Shape coupling make the efficiency be above 97%. Compared with belt-driven system, the output can increase 15-20%.
2. Long service time.
Siemens motor, SKF/NSK bearing, Germany oil seal, etc these top quality parts make our machine haslong service time.Also,gearbox body is made by HT250, which ishighlyabrasive.Many other manufacturers adopt HT180/HT200.
3. Easy operation and maintenance.
Quickly assembled and disassembled ring die is easy to change. It only takes 0.51 hour for one worker to change ring die.Compared with vertical ring die machinein China, it saves much more time.
Specifications of FDSP animal feed pellet machine
Model |
Output (t/h) |
Main Power (kw) |
Inner diameter of Die (mm) |
Pellet Size (mm) |
SZLH25 | 0.5-2 | 15/22 | 250 | 2-18 |
SZLH32 | 2-5 | 37/45 | 320 | 2-18 |
SZLH35 | 3-7 | 55 | 350 | 2-18 |
SZLH400 | 4-10 | 75/90 | 400 | 2-18 |
SZLH420 | 4-12 | 110 | 420 | 2-18 |
SZLH508 | 6-20 | 160 | 508 | 2-18 |
SZLH678 | 8-28 | 200/220/250 | 678 | 2-18 |
SZLH768 | 10-35 | 250/280/315 | 768 | 2-18 |
Kindly note: The capacity of pellet machine will affected by the feed formula, the size of finished pellet, the steam temperature, the conditioning, etc. We will offer our professional suggestion based on your need.

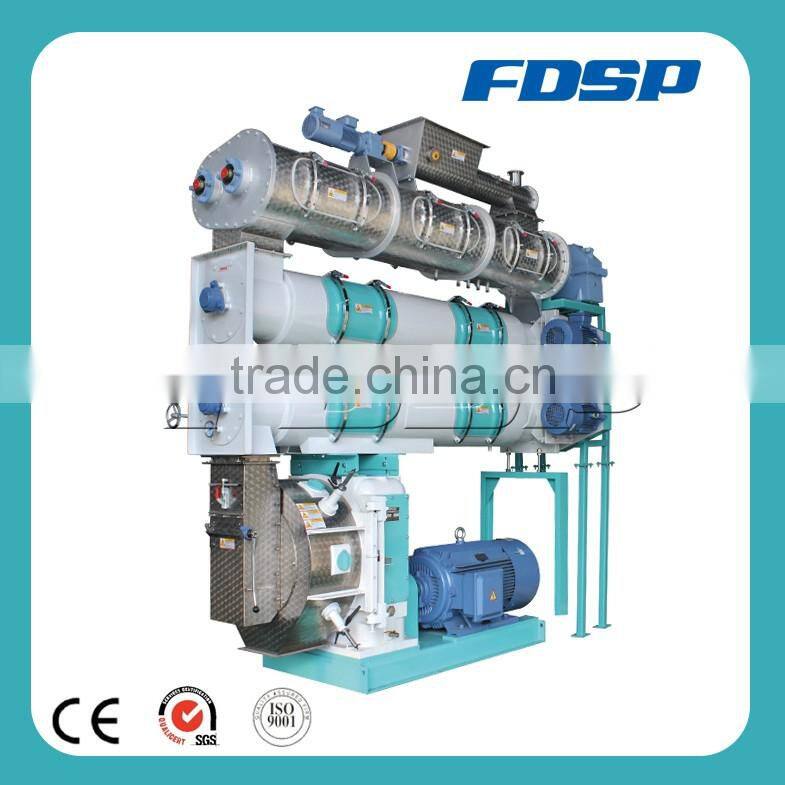

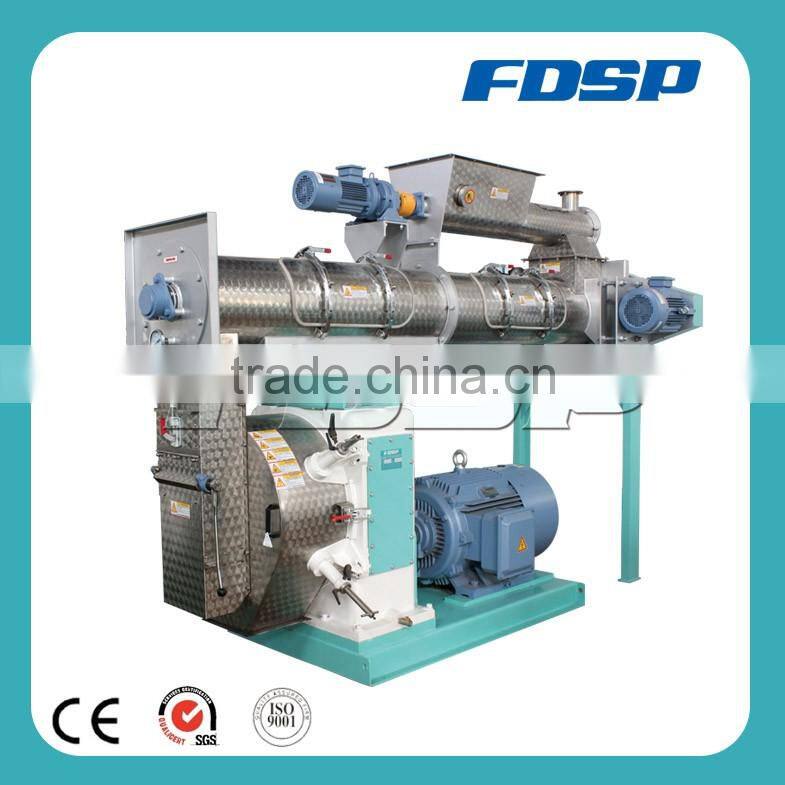

Other pellet machine

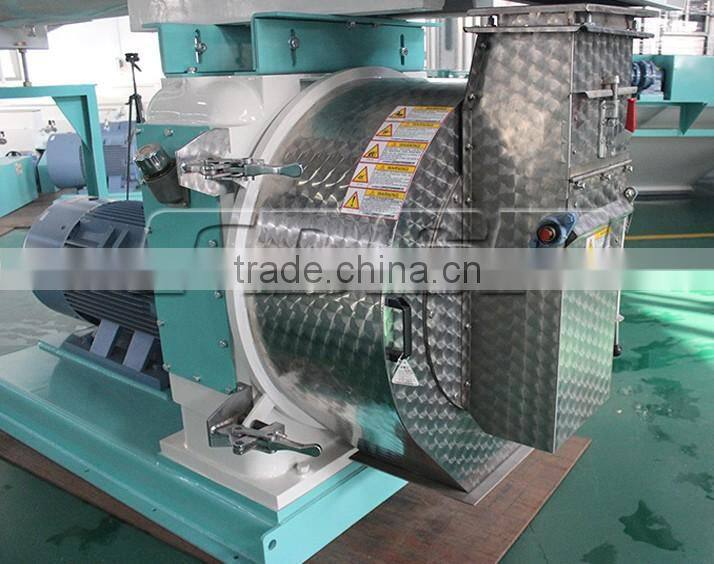

Detail pictures of animal feed pellet machine
We treat customers sincerely and pay more attention to how to maximize return of investment. We improve quality, reduce power consumption, shorten construction schedule, and quick feedback in terms of technology, production, engineering and service. We will furnish comprehensive, professional, and thorough service to meet customer's requirements. Thinking from customer's side, and solve problems timely.
Company view
FDSP has about 20 years of experience in the comprehensive development and utilizationin agriculture field. It covers an area of 15000 square meters, covering
total area of 15,000 square meters with over 200 staffs, located in liyang city, jiangsu province, China, a beautiful and ancient city.
Certifications
Obtained ISO9001:2008 international quality system certification, CE certification for feed machinery, fertilizer machinery, biomass equipment and complete sets of production line, SGS certification
Contact Us
- Jiangsu Liangyou Zhengda Co., Ltd.
- Contact nameVictory Chen Chat Now
- Phone86-519-88309801
- AddressNo.6 Chenyang Road, Zhongguancun Science & Technology Industrial Park, Liyang, Jiangsu, China, Changzhou, Jiangsu
