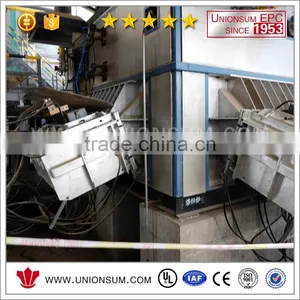

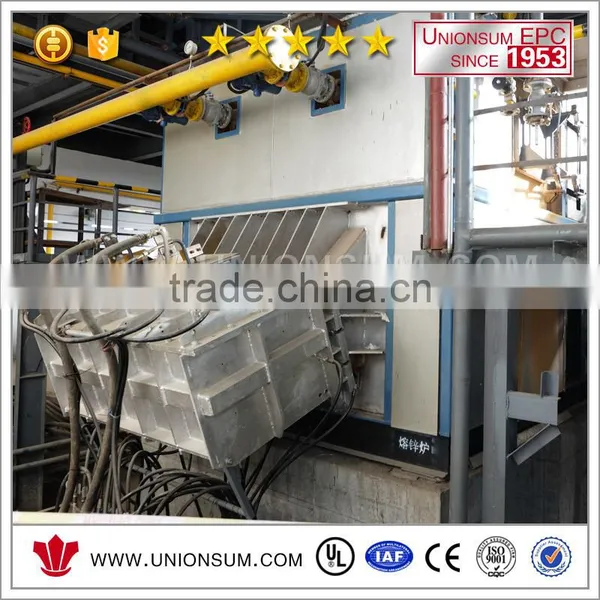

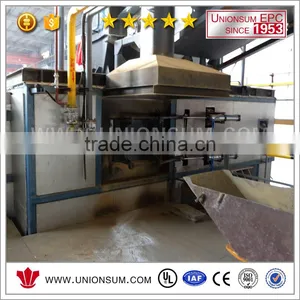

Channel Induction Furnace Used For Zinc Melting
The zinc melting channel induction furnace is used for zinc melting and casting ingot, which is consists of feeder, inductor, furnace body, furnace frame, hydraulic tilting system, power and water supply system, electrical furnace control system, etc.
Furnace body |
Titling cylinder-shape furnace |
Inductor power |
1000 kW |
Feeding type |
Automatic feeder |
Inductor Qty. |
2-4 |
Metal liquid discharge |
Double scoop for constant volume discharging |
Power supply |
3N-50Hz, 380V/220V |
Working temperature |
500±20 °C |
Rated voltage of inductor |
750V |
Melting rate |
16-17t/h |
Power adjustment |
Silicon controlled, stepless power adjustment |
Rated volume |
100t |
Cooling mode of inductor |
Water cooling |
Titling mode |
Hydraulic cylinder drive |
Temperature control |
Automatic control |
- Induction furnace is in tilting cylinder-shape structure.
- The inductor can be replaced when the molten zinc liquid is kept in the power-on heat-holding furnace.
- The cylinder-shape furnace body has high strength and low power loss and the dross over the molten surface can be removed by slightly tilting the furnace body;
- Using two single inductors (2*1000kw), easy for replacement and long service lifetime;
- Applying self-developed refractory ZLD-520 for inductor, the refractory material is made of Al2O3 and SiO2, sintering layer having the ability of self-coalescence to ensure the inductor’s service lifetime;

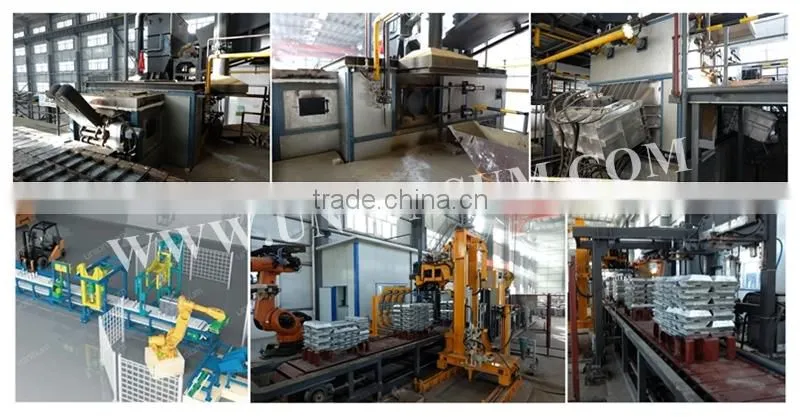

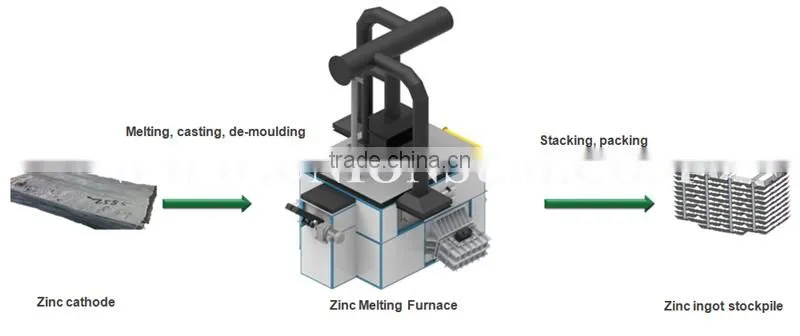

Zinc Melting and Casting Line
Prospecting Mining Metallurgy Processing Trading EPC service
Unionsum, a subsidiary of CRIMM, provides sustainable system solution for mining and
metallurgy industry, including engineering, procurement and construction, and offers a widerange of
scientific research and consultingservices.
Mining and Metallurgy Experts
History from 1953
Most authoritative and comprehensive organization in China mining and metallurgy industry
2 academicians of China Engineering Academy, 108 professors and 500 senior engineers
50 Laboratories and Pilot Plants (2 state key Labs)
Decades experiences in research and engineering service
Qualifications
Clients Visiting
Global Market
Vacuum distillation project at Bulgaria Rotary Furnace at Thailand
