Home > Products > Mineral Processing Equipments > Flotation Machine

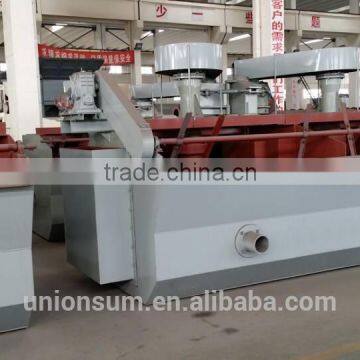

Flotation Machine
- Shenzhen
- T/T
You May Like
Product Details
| Condition | New | Type | Flotation Separator | |
| Production Capacity | 0.2-35m³/min | Place of Origin | Hunan, China | |
| Model Number | SF/BF | Power(W) | 1.1-45kw | |
| Dimension(L*W*H) | 0.37m3-38m³ | Weight | 0.4-13t/cell | |
| Certification | ISO9001 | Warranty | 1 year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

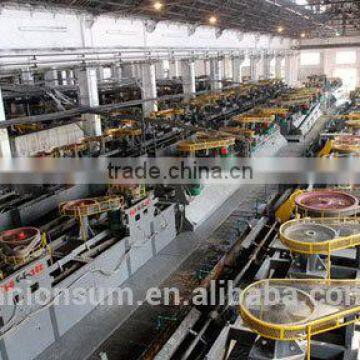

Flotation is a selective process and can be used to achieve specific separations from complex ores such as lead-zinc, copper-zinc, etc. Initially developed to treat the sulphides of copper, lead, and zinc, the field of flotation has now expanded to include the oxidized minerals, non-metallic ores and fine coal. Flotation cell is the most widely used flotation machine.
Working principle
The impeller is rotated by V-belt of motor and produces negative pressure by centrifugal function. Enough air is sucked to mix slurry, and slurry mixes drug at the same time. Mineral sticks on bubble completely and floats on the surface of slurry to form mineralized bubble. Useful bubble is scraped out by adjusting flashboard height and controlling liquid surface.
Strengths
Large inhaling capacity and low consumption;
Complete flotation circuit with inhaling air and slurry, no auxiliares are needed;
Reasonable circulation of slurry decreases coarse sand sedimentation;
Automatic controlling device makes adjustment more convenient.
Technical Parameters-SF series of Flotation Machine:
Model | Cell volume (m³) | Impeller diameter (mm) | Impeller speed (r/min) | Capacity (m³/min) | Main motor power (kW) | Scraper motor power (kW) | Weight (t/cell) |
SF0.37 | 0.37 | 300 | 442 | 0.2-0.4 | 1.5 | 1.1 | 0.4 |
SF0.7 | 0.7 | 350 | 400 | 0.3-1 | 3 | 1.1 | 0.9 |
SF1.2 | 1.2 | 450 | 312 | 0.6-1.2 | 5.5 | 1.1 | 1.4 |
SF2.8 | 2.8 | 550 | 268 | 1.5-3.5 | 11 | 1.1 | 2.2 |
SF4 | 4 | 650 | 235 | 2-4 | 15 | 1.5 | 2.6 |
SF8 | 8 | 760 | 191 | 4-8 | 30 | 1.5 | 4.3 |
SF16 | 16 | 850 | 190 | 5-16 | 45 | 1.5 | 7.4 |
Technical Parameters-BF series of Flotation Machine:
Model | Cell volume(m³) | Impeller diameter(mm) | Impeller speed(r/min) | Air inflow (m³/m2.min) | Capacity(m³/min) | Power (kW) | Weight(t/cell) |
BF2.8 | 2.8 | 550 | 278 | 0.9-1.1 | 1.4-3 | 11 | 2.1 |
BF4 | 4 | 650 | 235 | 0.9-1.1 | 2.4-4 | 15 | 2.6 |
BF6 | 6 | 700 | 205 | 0.9-1.1 | 3-6 | 18.5 | 3.3 |
BF8 | 8 | 760 | 188 | 0.9-1.1 | 4-8 | 22 | 4.1 |
BF10 | 10 | 760 | 188 | 0.9-1.1 | 5-10 | 22 | 4.5 |
BF16 | 16 | 850 | 195 | 0.9-1.1 | 8-16 | 37 | 8.3 |
BF20 | 20 | 850 | 195 | 0.9-1.1 | 10-20 | 45 | 8.7 |
BF24 | 24 | 920 | 181 | 0.9-1.1 | 12-24 | 45 | 9 |
