50 TPM Copper Cathode Plant Use Cathode
Cathode is widely used in Zinc, Copper, Nickel, Cobalt and Manganese EW/ER industry .Copper can be easily deposit on the stainless steel cathode surface and be stripped by auto-stripping machine. The use of stainless steel cathode can save a lot of time and human cost compared to starting sheet. It's an obbligato part in large scale and modernization Copper electro-refinning and Copper electro-winning plant.
Material
Blank:
material - 316L or Outokumpu LDX2101 stainless steel plate, Al plate surface polishing treatment - 2B plain sheet

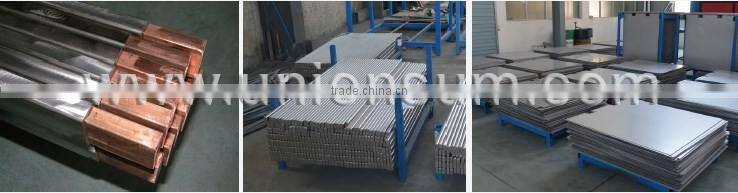

Hanger bar:
- Stainless steel cladding around copper bar(Cu-SS)
- Copper electro-plating stainless steel bar(SS-Cu)
- Triple layer (CS-Cu-SS)
- Al cladding Copper ingot, welding to Al bar
Edge strip:
- PP by mechanical process or extrusion
- Advantages
- High strength and anti-corrosion hanger bar
- Advanced edge strip with round bar for fastening
- Special surface polishing treatment to form a passive film
- 90° “v” shape groove at bottom of blank, Copper cathode
- can be more easily stripped in the bottom
- 10~15 years service lifetime of blank, 1.5year of edge
- strip (If Cl- < 40mg/L)
- Double side full welding technology

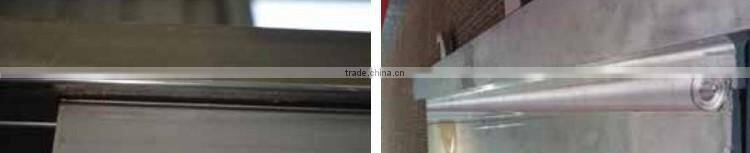

Welding
Patented welding technology (Double-side full laser welding) is used to connect stainless steel blank and hanger bar. It does not use flux to connect, which is successful to avoid the weld seam defects and maximize preventing corrosion.

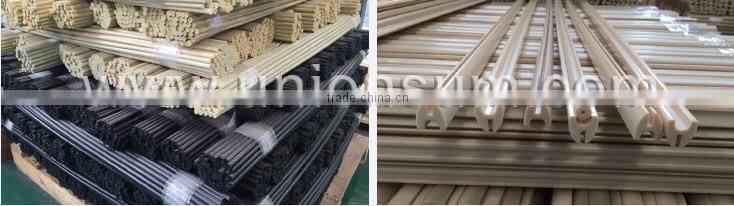

Edge Strip
- Made of PP by mechanical process or extrusion
- Edge strip is stick to blank with adhesives and PP rod
- Oil- resistant, corrosion-resistant as modified by adding internal adhesives, corrosion inhibitors
lRaw Materials
Prospecting Mining Metallurgy Processing Trading EPC service
Unionsum, a subsidiary of CRIMM, provides sustainable system solution for mining and
metallurgy industry, including engineering, procurement and construction, and offers a widerange of
scientific research and consultingservices.
