Replace Coal Fired Boiler Biomass Pellet Burner

Replace Coal Fired Boiler Biomass Pellet Burner thumbnail-1
Replace Coal Fired Boiler Biomass Pellet Burner thumbnail-2
Replace Coal Fired Boiler Biomass Pellet Burner thumbnail-3
Replace Coal Fired Boiler Biomass Pellet Burner thumbnail-4
Replace Coal Fired Boiler Biomass Pellet Burner thumbnail-5
Replace Coal Fired Boiler Biomass Pellet Burner photo-1
Replace Coal Fired Boiler Biomass Pellet Burner photo-2
Replace Coal Fired Boiler Biomass Pellet Burner photo-3
Replace Coal Fired Boiler Biomass Pellet Burner photo-4
Replace Coal Fired Boiler Biomass Pellet Burner photo-5
US$ 3,100 - 3,100 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
ROTEX MASTER
Contact Supplier Request Quote Chat Now
Shandong Rotex Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name ROTEX MASTER
Model Number YGF-30
Voltage 220V 380V 450V 600V
Power(W) 0.75kw
Weight 0.7T
Dimension(L*W*H) 1920*925*1750mm
Certification CE BV SGS
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Replace Coal Fired Boiler Biomass Pellet Burner

Tel/Wechat/Whatsapp:+86 18615687606 Skpe:pelletmachine06

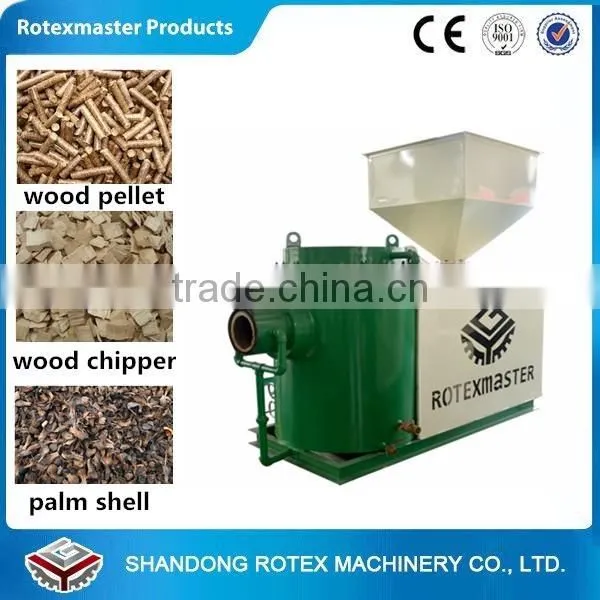

The 200000-1200000 kcal biomass burner like the picture showing

Replace Coal Fired Boiler Biomass Pellet Burner

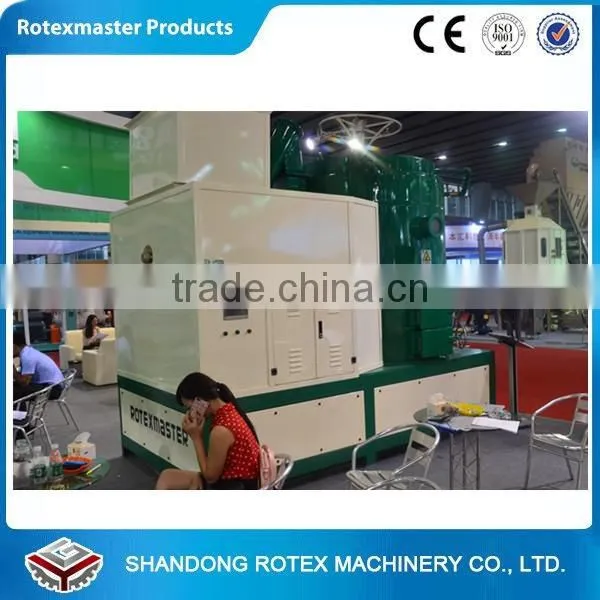

Bigger than the 1800000 kcal contain it  is showing like this

Replace Coal Fired Boiler Biomass Pellet Burner

Replace Coal Fired Boiler Biomass Pellet Burner



Biomass Burner Description:

Biomass burner is the equipment of changing forest waste, scraps into high quality fuel gas, no harmful emission, protects the limited fossil resources, use the renewable energy enough, in line with the world, especially the energy conservation and emission reduction national conditions of our developing country.

The temperature can up to 800-1300°C, the length of flame can be 3-4 meters.

Replace Coal Fired Boiler Biomass Pellet Burner

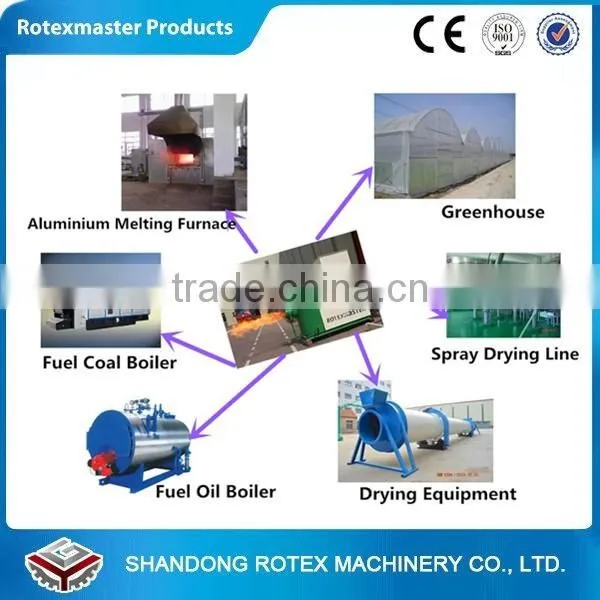

Wide application of Biomass Burner

Biomass burner is suitable for steam boiler, fuel oil, gas, coal boiler, various kinds of organic spray drying equipments, large-scale farming factories, cereal and food drying, tobacco drying, various kinds of large, medium, small workshops, greenhouse heating and etc.

Replace Coal Fired Boiler Biomass Pellet Burner

Parameter of Biomass Burner

Model

Calorific

value

(kilocalorie)

Power

(Kw)

Consumption

of fuel(Kg)

Weight

(T)

Dimension

(mm)

Equipment

protection

way

YGF20

20

0.75

50

0.6

1900*910*1710

air-cooled

YGF30

30

0.75

75

0.7

1920*925*1750

YGF45

45

1.12

115

1

1830*1100*2130

YGS/F60

60

1.9

150

1.6

2340*980*2180

water-cooled

YGS90

90

3.1

225

2.2

2340*980*2180

YGS120

120

3.7

300

3

2790*1190*2400

YGS180

180

5.25

450

3.8

2900*1300*2400

YGS240

240

8.45

600

4.8

3180*1490*2400

YGS300

300

10.45

750

8

3800*1950*3130

YGS360

360

10.45

900

9

3950*2100*3270

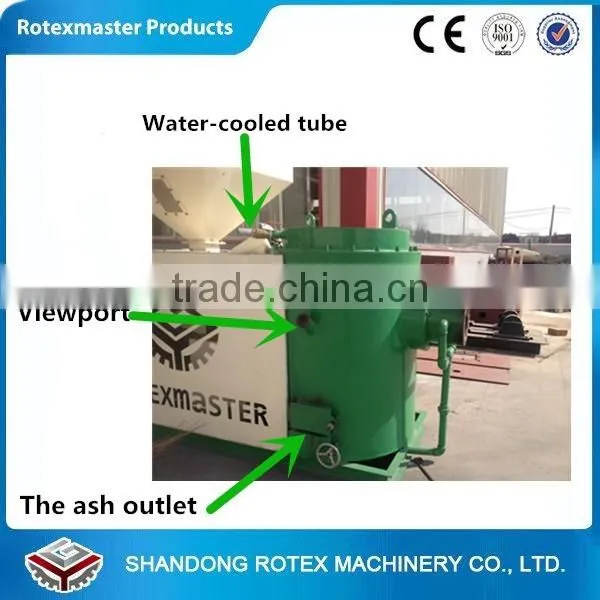

Details of the biomass burner

1,burner mouth :connect with boiler or dryer. according to the size of your boiler, then design the burner mouth for you.

2,water inlet. Cool water can enter into the water interlayer from here. This is water cooling system,  thus can reduce the temperature of burner.

3,water outlet.hot water can be come out from the water outlet.

4,air increasing fan, there are two air increasing fans in it. One of them for burner mouth, and anther one is for bottom of burner. for sufficient burning.

5,igniting hole, for ignite the biomass burner automaticly.,

6,ash discharge hole , for cleaning some times.

7,view hole, we can watch the flame situation the fire of burn.

8,feed inlet connect with pipe, so the material be entered into from here.

Replace Coal Fired Boiler Biomass Pellet Burner

Replace Coal Fired Boiler Biomass Pellet Burner

Send inquiry

After-Good Services of Biomass Burner

Caring service, carefully manufacture and desirable price make

Customers at ease.

"Customer-oriented", providing customers with whole considerate services;

"Service as core," providing the most suitable products to customers;

"Quality-centered," All-round services to every customers!

Technical support: on-site technical training and technical advice available.

Replace Coal Fired Boiler Biomass Pellet Burner

Replace Coal Fired Boiler Biomass Pellet Burner

Replace Coal Fired Boiler Biomass Pellet Burner
Replace Coal Fired Boiler Biomass Pellet Burner
Send inquiry

Replace Coal Fired Boiler Biomass Pellet Burner
