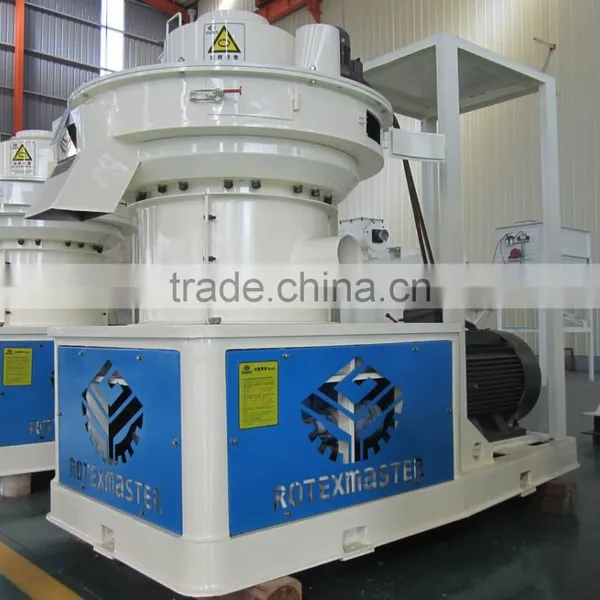

China CE Multifunctional flat die Wood pellet mill for making pellets as fuel and feed
1.Description Of Wood Pellet Machine:
YGKJ series vertical ring die pellet machine absorbed the essence of pellet mill in oversea market,after our
engineers improved,it had reached the international advanced level.

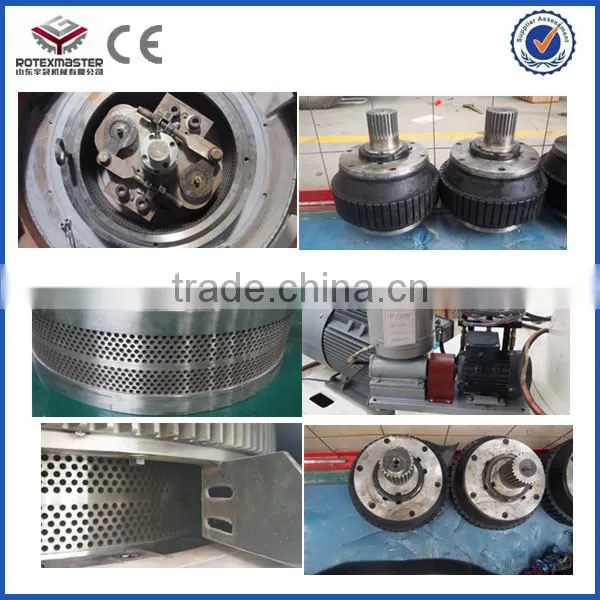

Die and rollers are made of high quality wear resistant alloy steel.These two parts have the following characters: particular design, reasonable structure, low energy, high efficiency, long service life and so on.

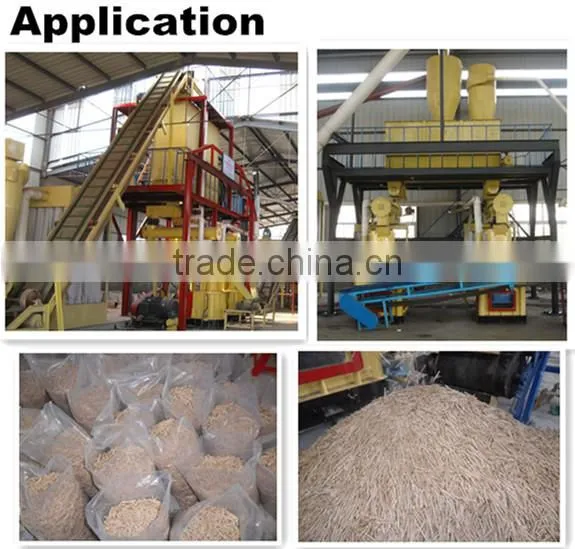

2.Usage Of Wood Pellet Machine:
This product is mainly applicable for difficult molding materials with low adhesion rate, for example rice
husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of
crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing
plants, power plants, fertilizer plants, chemical plants etc.
3.Advantages Of Wood Pellet Machine:
(1)YGKJ series efficient vertical ring die pellet machine is an ideal dense compression molding equipment;
(2)Less investment,Fast return,No risk;
(3)Vertical feeding, directly in pelletizing room;
(4)Die is static, rollers rotate; materials are evenly distributed around pelletizing room because of centrifugal
force;
(5)Double-layer die. Two layers both can be used for reduce the cost. High efficiency and save energy;
(6)Ring die and vertical structure are good for cooling the pelletizing room;
(7)Independent and frequency conversion discharge device can ensure the rate of pellet formation;

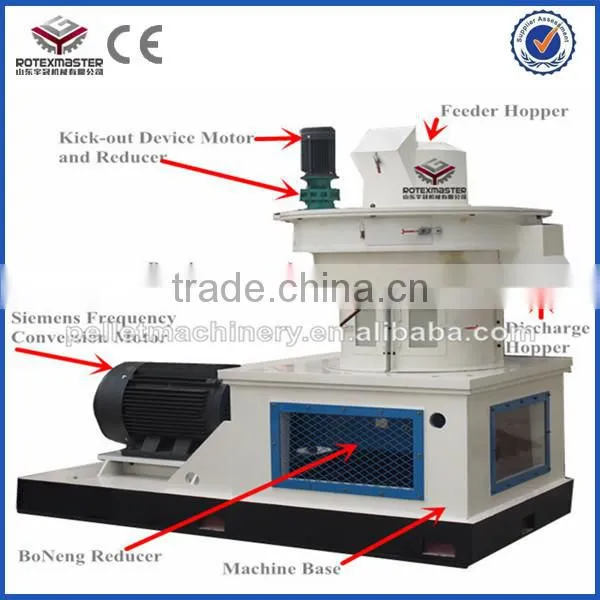

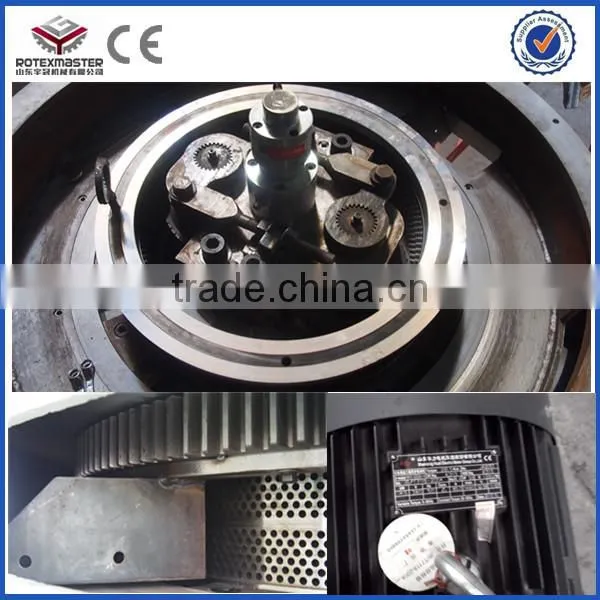

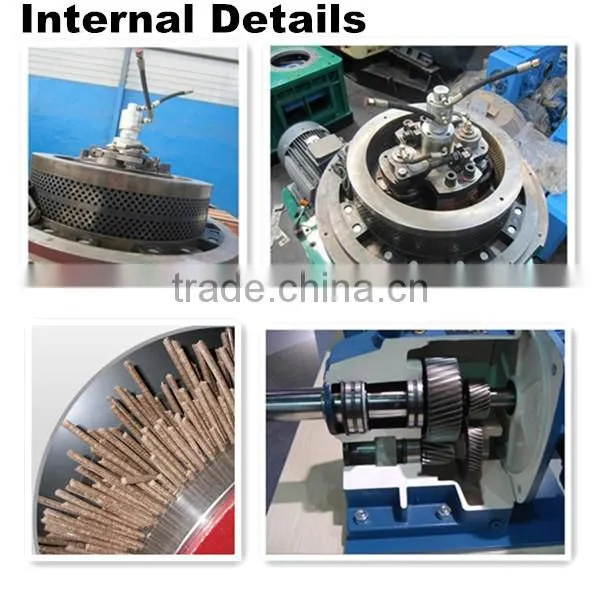

4.Structure Of Wood Pellet Machine:
"Siemens" frequency conversion main motor
Gear box
"Boneng"brand reducer
Bearing Chamber “SKF” bearing
Roller assemble frame
Die matrix
Machine base.

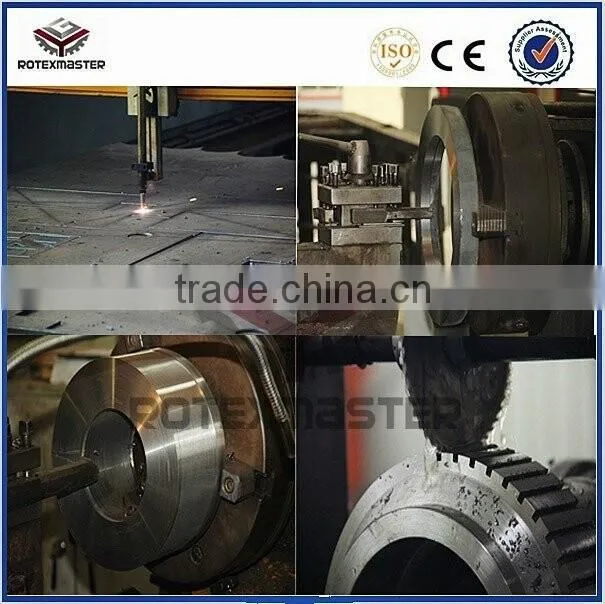

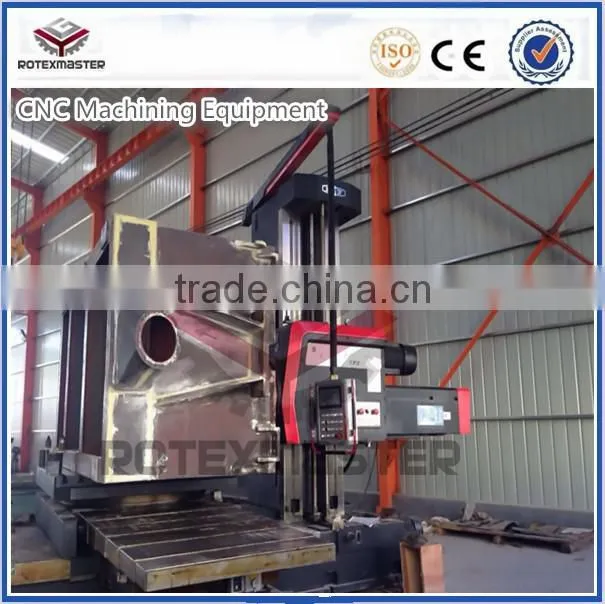

Note: All the mounting surfaces of the pellet machine parts are made by machining. It has high
assembly precision, good machine performance.
5.Technical Parameters Of Wood Pellet Machine:
Model |
Power (KW) |
Pellet diameter (mm) |
Die diameter (mm) |
Output Capacity (t/h) |
Dimension (mm) |
Weight (t) |
YGKJ560 |
90 |
4-12 |
560 |
1-1.5 |
2600*1300*2300 |
6.5 |
YGKJ580 |
160 |
4-12 |
580 |
1.5-2 |
2900*1300*2400 |
7.8 |
YGKJ850 |
220 |
4-12 |
850 |
2-3 |
3750*1650*3250 |
13.5 |
6.Structure Of Wood Pellet Machine:
Firstly this machine adopts Siemens motor direct connection, the motor is connected to the gear shaft
through the shaft coupling, after 90 degree rotation by the gear, the horizontal motor will drive the
vertical principle shaft, and then the shaft will drive the roller to press the die inner face to finish
pelletizing.
