Grinder/crusher/wood Hammer Mill With Diesel Engine With Beat Price

FOB Price

US$ 3,000 - 3,600 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Rotexmaster	Model Number	YDF65*27
Voltage	380v or as request	Power(W)	22kw
Dimension(LWH)	150010001100mm	Weight	1.1t
Certification	CE ISO BV	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

wood hammer mill
High Efficiency
Widely use hammer mill
high quality
CE ISO BV

grinder/crusher/wood hammer mill with diesel engine with beat price

Product Advantage of wood hammer mill:

(1)Structure reasonable, fast rotary speed to grind the material ,adopt rotor and hammer principle, grind every corner

(2)Firm durable ,the rotor and hammers are alloy steel, wear-resisting ,the base irons are from famous big factory Jigang, Laigang, firm and durable.

(3)Safe reliable ,high quality of CE ISO certificate, and the firm material guarantee a safe working envirinment.

(4)Easy operation ,automatic working principle, easy operation

(5)Widey use ,grind many materials, such as corn straw,stalk, wood chips, pieces, small branches, varieties of shell ,even PVC foam.

(6)High efficiency and low cost.

Product Parameter of wood hammer mill

YDF Series Multifunctional wood Hammer Mill
Model	Power (kw)	Output (t/h)	Dimension (mm)	Weight (t)	Hammer Qty (pcs)
YDF40	7.5	0.2-0.5	1310×800×1070	0.27	12
YDF50	15	0.6-0.8	1380×800×1010	0.45	16
YDF65×27	22	0.8-1.5	1500×1000×1100	1.1	24
YDF65×55	37-45	1-2	1700×1000×1100	1.5	48
YDF65×75	55-75	2-3	2100×1000×1100	1.9	72
YDF65×100	90-110	3-4	2400×1000×1100	2.3	90
YDF130×55	130-160	5-6	2800×1620×2100	5.3	80
YDF130×100	160-220	7-8	3020×1620×2170	6.8	160

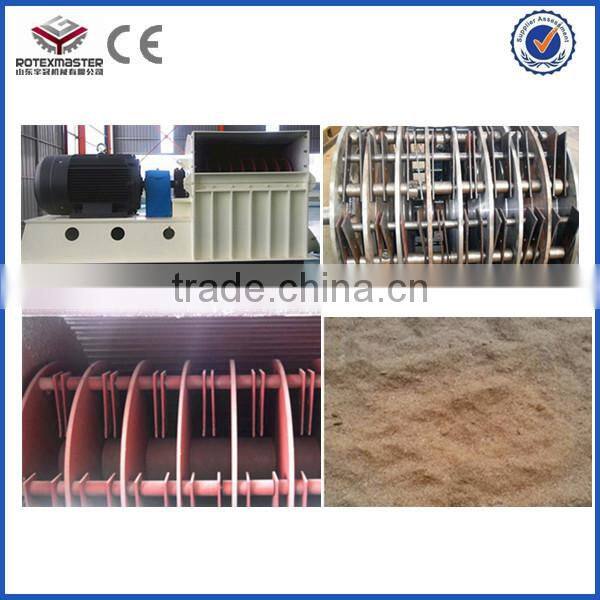

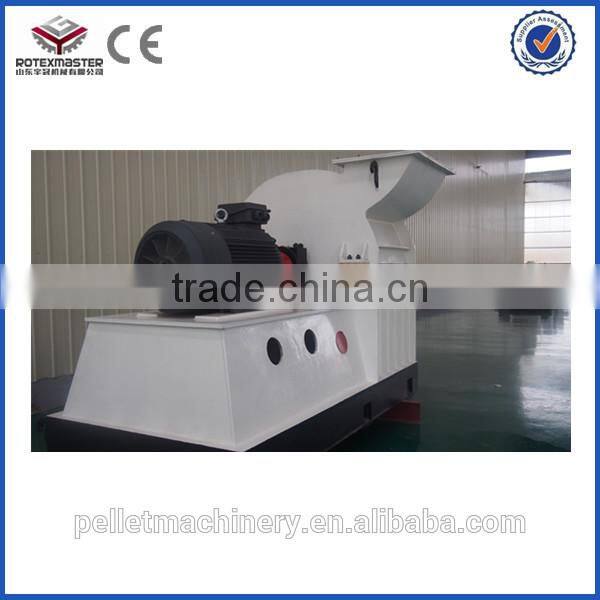

Product show of YDF series wood Hammer mill:

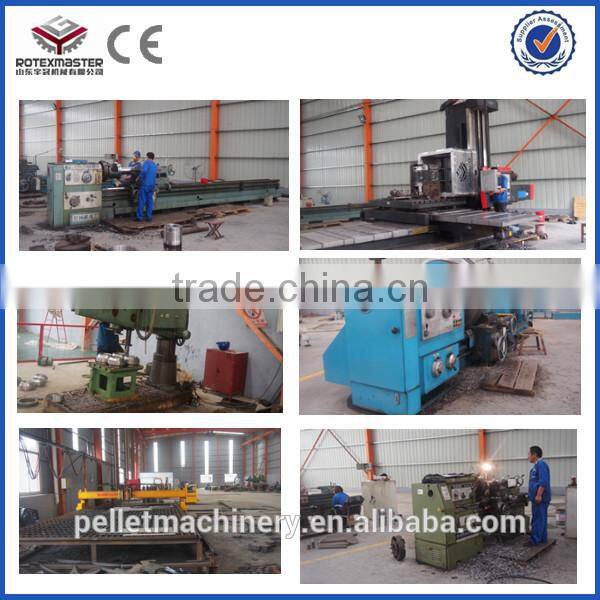

welcome to visit Our factory

Our Services

nical guidance, according to your capacity and raw material ,recommend a suitable model

2.visit to our factory and have an investigation and performance test

s avialable to service machinery overseas.

4.warranty 1 year,quality gurantee, except wear parts and wrong operation
