Ore Magnetic Separator
- 50 Unit / Units per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Magnetic Separator | Production Capacity: | 95% |
Place of Origin: | Henan, China | Brand Name: | JC | Model Number: | JCX0921 |
Voltage: | 380V-440V | Power(W): | 7.5kw | Dimension(L*W*H): | 2230*1120*1480 |
Weight: | 2.8T | Certification: | CE | Warranty: | 18 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Ore Magnetic Separator
Working Principle of Ore Magnetic Separator:
The mineral slurry flows into the cell through box feeder, the mineral particle is loose under the function of water flow of feeder water pipe when they flow into the cell. Affected by magnetic field, the magnetic particle swarm together and form magnetic cluster or chain. With the magnetism of mineral slurry, the magnetic cluster or chain moves toward the magnetic pole, and is absorbed to the cylinder. Because of the polarity of magnetic pole, the revolving directions alternate constantly, and remain fixed when it is working. When the magnetic cluster and chain go round and round along with the cylinder, the mingled gangue and other non-magnetic ore fall down due to the mixing phenomena produced by alternation of magnetic poles, and it is concentrate that is absorbed to the cylinder surface. The concentrate moves to the end of magnetic system where the magnetism is weakest along with the revolving cylinder, and is discharged into concentrate tank by the current ejected by the discharging-ore pipe. The non-magnetic or weak magnetic remained are discharged along with the mineral slurry, and they are gangue.

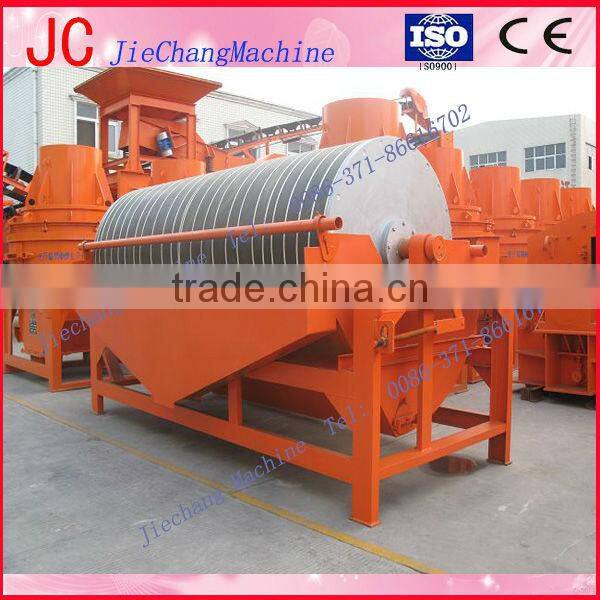

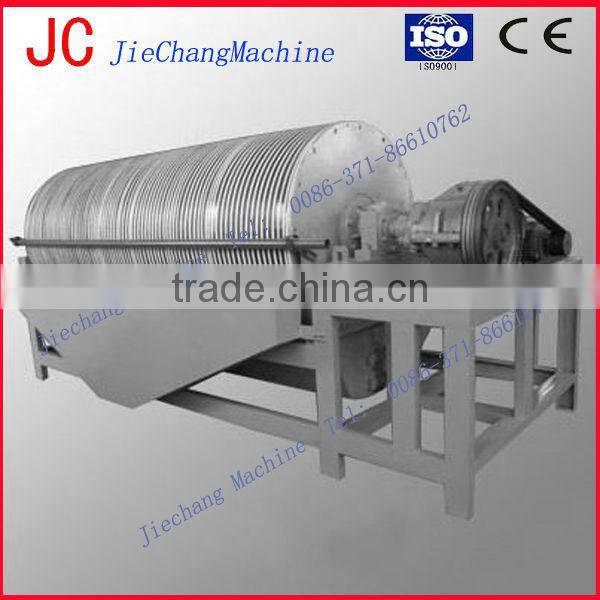

Pictures of Ore Magnetic Separator:
Parameters of Ore Magnetic Separator:
Model | Drum size | Capacity (t/h) | Revolution (rpm) | Motor power (KW) | Weight (Kg) | |
Diameter (mm) | Length (mm) | |||||
CTB609 | 600 | 900 | 10~20 | 40 | 1.1 | 1052 |
CTB612 | 600 | 1200 | 16~29 | 40 | 1.5 | 1321 |
CTB618 | 600 | 1800 | 18~35 | 40 | 1.5 | 1655 |
CTB712 | 700 | 1200 | 12~30 | 35 | 2.2 | 1682 |
CTB715 | 700 | 1500 | 13~36 | 35 | 2.2 | 1806 |
CTB718 | 700 | 1800 | 20~45 | 35 | 2.2 | 1992 |
CTB918 | 900 | 1800 | 28~60 | 27 | 4 | 3162 |
CTB924 | 900 | 2400 | 38~80 | 27 | 4 | 3887 |
CTB930 | 900 | 3000 | 45~95 | 27 | 5.5 | 4235 |
CTB1018 | 1050 | 1800 | 36~72 | 22 | 4 | 3801 |
CTB1021 | 1050 | 2100 | 45~85 | 22 | 5.5 | 4165 |
CTB1024 | 1050 | 2400 | 52~100 | 22 | 5.5 | 4319 |
CTB1030 | 1050 | 3000 | 64~125 | 22 | 7.5 | 4976 |
CTB1218 | 1200 | 1800 | 55~95 | 19 | 7.5 | 5263 |
CTB1224 | 1200 | 2400 | 65~110 | 19 | 7.5 | 5927 |
CTB1230 | 1200 | 3000 | 85~120 | 19 | 7.5 | 6325 |
CTB1530 | 1500 | 3000 | 95~160 | 16 | 11 | 8665 |
CTB1540 | 1500 | 4000 | 120~190 | 16 | 11 | 9871 |
Manufacturer: (Jiechang Group)Zhengzhou Jiechang machine equipment Co., Ltd
Contact person: Mark Sun
Skype:jcmachinemark Mobile: 0086-18838083650
web: http://jiechangmachine.en.china.cn
