Industrial high speed bath towel folding machine
1. Industrial used high speed bath towel folding machine auto control with big LED screen and multi-language interface.
2.The sizes of towels can be detected and the folding width can be adjusted by the sensor. Lateral folding is done with relative folding blade.
3.The length of towels can be measured with the coder on the revolving shaft and the folding mode can be automatically decided. The first cross fold is done via running in both directions and blowing system.
4.The structure innovatively designed is adaptable to different thickness of towels and ensure good result of folding and enter the second fold smoothly.
5.The second cross fold is done also via motor running in both directions and blowing system with adding the adjustable tilting degree of the conveying terrace so that the folding result is ensured.
6.Output postioned accurately. Auto counter for stacking. Fast respond. Short work cycle.
7.Conbined with international advanced techology on the fields fo computer, communication and controlling, the multiintelligent controlling system is designed specially for TOWEL folding, which can be surveilled and controlled via net, and has the functions of character istic embedded software and comprehensive intelligent surveillance.
8.Programmable. Auto and manual modes available.
9.An auto retractor device is installed at the end of stack, which can control the transfer belts stretch out and retract without change of direction so as to smoothly transport stacked towel of mul-piece to the next transfer belts.
towel folder machine, towel folding machine list:
| Model | JCZD1200 | |
| Max size before folding | mm | 1200x1920 |
| Max size after folding | mm | 600x650 |
| Air consumption | L/min | 200 |
| Compressed air connection dia | mm | Φ12 |
| Rated motor power | KW | 3 |
| Power consumption | KW.h/h | 2 |
| Cycle time | second | 3-7 |
| Capacity | pcs/h | 800-1200 |
| Air Pressure | mpa | 0.5-0.7 |
| Dimension | mm | 2102x1305x5159 |
| Total Weight | kg | 1200 |

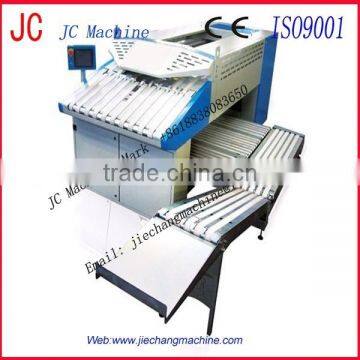

towel folder machine, towel folding machine photo:
For a working video, please contract us.
How to contact with your company?
Manufacturer: (Jiechang Group)Zhengzhou Jiechang Machinery Co., Ltd
Tele & Fax: 0086-371-86610762
Zip: 450000
Contact person:mark
Skype:jcmachinemark
