Help CenterMetal Wire Mesh for Water Treatment
Related Products
-
Wire Screen for Water Screening,metal Pricked&corrugated Plate,structure Packing,metal Wire PackingUS$ 18 - 28MOQ: 1 Cubic Meter -
Stainles Steel Wire Gauze PackingUS$ 965 - 1,580MOQ: 1 Cubic Meter
-
Ceramic Structured PackingUS$ 415 - 650MOQ: 1 Cubic Meter
-
Tail Gas Purification Plastic Structure PackingUS$ 199.9 - 320MOQ: 1 Cubic Meter
-
Plastic Structure Packing as Liquid's DischargeUS$ 199.9 - 320MOQ: 1 Cubic Meter

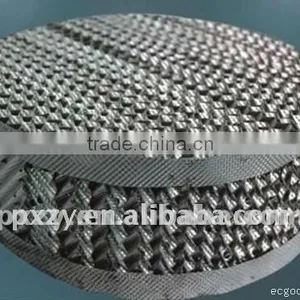

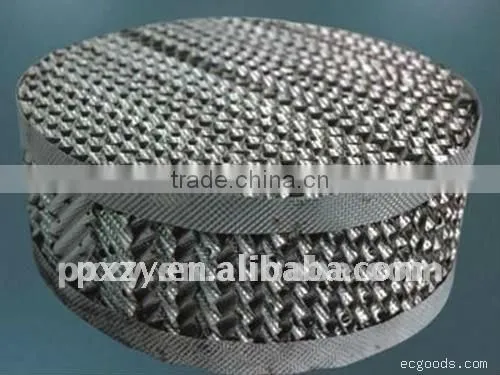

Metallic Perforated & corrugated Plate has high efficiency, low pressure drop, high capacity and big flux. It is formed from vertical sheets of corrugated metal with the angle of the corrugation reversed in adjacent sheets to form an open structure with inclined flow channel. Its structure can not only change the distribution of liquid, but also increase the transfer efficiency. It is recognized worldwide as the leader in application with low liquid-loading systems or temperature-sensitive compounds, Vacuum distillations, specialty chemicals, and many highly refined, value-added processing operations also benefit from gauze packing and efficiency improving capabilities. It is also the most efficient commercial tower packing available on the market.
Technical data
Model |
Wave height mm |
Surface area m²/m³ |
Theoretical plate I/m |
Void volume % |
Pressure drop MPa/m |
F factor M/s(kg/m3)0.5 |
SM125 |
24 |
125 |
1-1.2 |
98.5 |
1.5*10-4 |
3 |
SM250 |
12 |
250 |
2-3 |
97 |
1.52*10-4 |
2.6 |
SM350 |
8 |
350 |
3.5-4 |
95 |
1.5*10-4 |
2 |
SM450 |
6.5 |
450 |
4-4.5 |
93 |
1.8*10-4 |
1.5 |
