Specifications
1.high intensity ,high corrosion, sollision and heat resistance without any hazardous matter2. filtering gas, fluid,liquid use
Performance and application:
The porous ceramic filter tube is composed of manu evern-distributed and interblended arch-shaped pores. When the fluid passes through these pores, the suspended substances and the glued particals and large molecule organic substance will be absorbed by the pores, which results in purification and filtering. It has properties of high intensity , high corrosion, sollision and heat resistance without any hazardous matter.
Its especially applicable for filtering gas, fluids and liquids
Material Property:
Material |
Porousity |
Mechanical Strength |
Acid Resistance |
Alkali Resistance |
Max Working Pressure |
Max Working Temperature |
Pore Size |
corundum |
35~50% |
20~30MPa |
≥98% |
≥98% |
1.6Mpa |
600 |
0.1~1um |
Phisical Performance of Porous Ceramic Filter Tube
Filter Area |
Pore size |
Working Pressure |
Working Temperature |
Permeable volume |
Working Medium |
0.2~120m2 |
0.1~1.0um |
0.1~1.0Mpa |
Normal-300 |
0.2~500m3/h |
All medium |
Dimension:
ODxIDxH(mm) |
Filter Area(m2) |
Pore Size(um) |
Permeable volume(m3/pc) |
Channels(n) |
40x30x1000 |
0.126 |
0.5~5 |
0.2~1.0 |
1 |
50x35x1000 |
0.157 |
0.5~5 |
0.5~1.5 |
1 |
60x40x1000 |
0.1884 |
0.5~5 |
0.5~1.5 |
1 |
60x30x1000 |
0.1884 |
0.5~5 |
0.5~1.5 |
1 |
70x40x1000 |
0.2198 |
0.5~5 |
0.6~1.7 |
1 |
200x140x1000 |
0.628 |
5~20 |
1.8~5.0 |
1 |
Performance and application:
The porous ceramic filter tube is composed of manu evern-distributed and interblended arch-shaped pores. When the fluid passes through these pores, the suspended substances and the glued particals and large molecule organic substance will be absorbed by the pores, which results in purification and filtering. It has properties of high intensity , high corrosion, sollision and heat resistance without any hazardous matter.
Its especially applicable for filtering gas, fluids and liquids

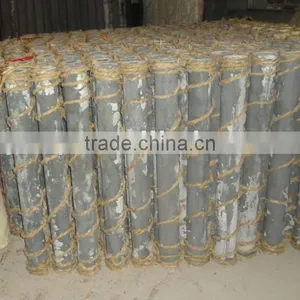

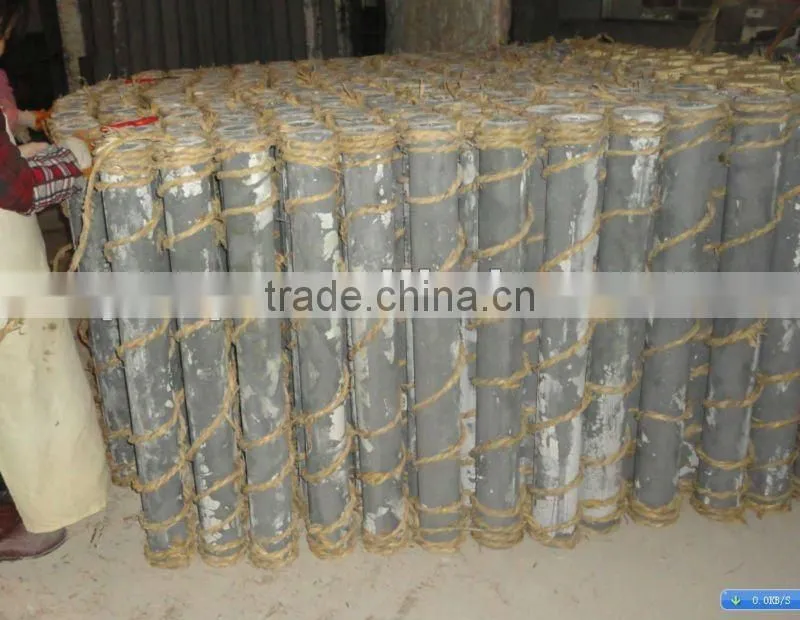

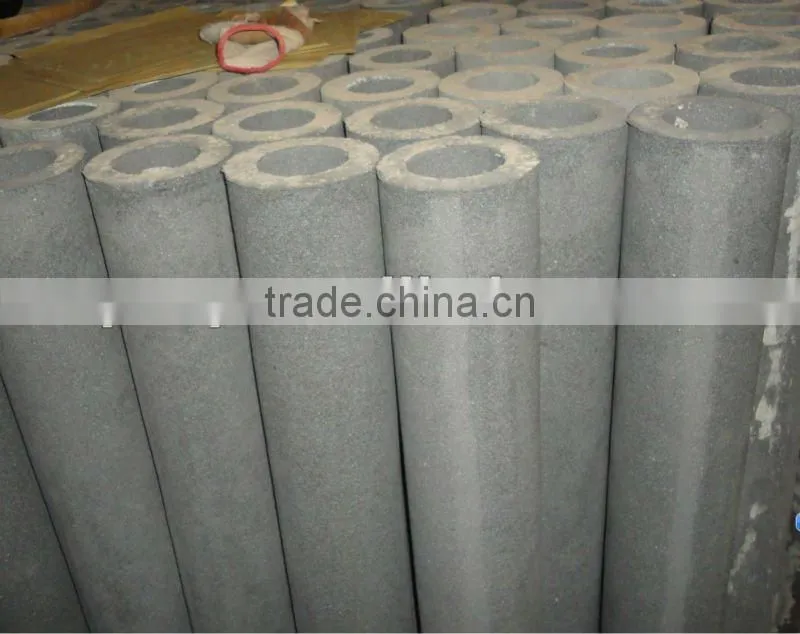

Package and product photo:
