Specifications
1.Porous cermic tube2.One-stop serivice
3.20 years manufactures
4.ISO9001 available.
Porous alumina cermic tube Specifications
The porous alumina cermic tube /porous ceramic filter tube is composed of manu evern-distributed and interblended arch-shaped pores. When the fluid passes through these pores, the suspended substances and the glued particals and large molecule organic substance will be absorbed by the pores, which results in purification and filtering. It has properties of high intensity , high corrosion, sollision and heat resistance without any hazardous matter.
Porous alumina cermic tube Features:
Chemical corrosion resistant,high temperature resistant/ good chemical and thermal stability
Easy regeneration
It has an adequate mechanical strength,large surface area and free void space
Enviromental /no toxicity
Durable
Porous alumina cermic tube Application:
It's widely used in waste effluent treatment of chemical metallurgy power-electricity coal-chemical,nucleus industry etc.
Especially for filtering gas, fluids and liquids the power station boiler,industry boiler and coal plant waste water purifying and filtering engineering.After the new process depositing+micro-pored ceramic filtering treatment,the suspending materials removing ratio is up to 91-97%,outlet suspending materials is 10-15mg/L,COD removing ratio is more than 65%,the water quality is limpidness and transparence,is realized closed-circle using and zero outlet aim.
Its especially applicable for filtering gas, fluids and liquids.
Material Property:
Material |
Porousity |
Mechanical Strength |
Acid Resistance |
Alkali Resistance |
Max Working Pressure |
Max Working Temperature |
Pore Size |
corundum |
35~50% |
20~30MPa |
≥98% |
≥98% |
1.6Mpa |
600 |
0.1~1um |
Phisical Performance of Porous Ceramic Filter Tube
Filter Area |
Pore size |
Working Pressure |
Working Temperature |
Permeable volume |
Working Medium |
0.2~120m2 |
0.1~1.0um |
0.1~1.0Mpa |
Normal-300 |
0.2~500m3/h |
All medium |
Porous alumina cermic tube Dimension:
ODxIDxH(mm) |
Filter Area(m2) |
Pore Size(um) |
Permeable volume(m3/pc) |
Channels(n) |
40x30x1000 |
0.126 |
0.5~5 |
0.2~1.0 |
1 |
50x35x1000 |
0.157 |
0.5~5 |
0.5~1.5 |
1 |
60x40x1000 |
0.1884 |
0.5~5 |
0.5~1.5 |
1 |
60x30x1000 |
0.1884 |
0.5~5 |
0.5~1.5 |
1 |
70x40x1000 |
0.2198 |
0.5~5 |
0.6~1.7 |
1 |
200x140x1000 |
0.628 |
5~20 |
1.8~5.0 |
1 |
Our advantage:
1.One-stop serivice
2.20 years manufactures with high quality and reasonalbe price.
3.ISO9001 available.
4.Paypal payment term acceptable.

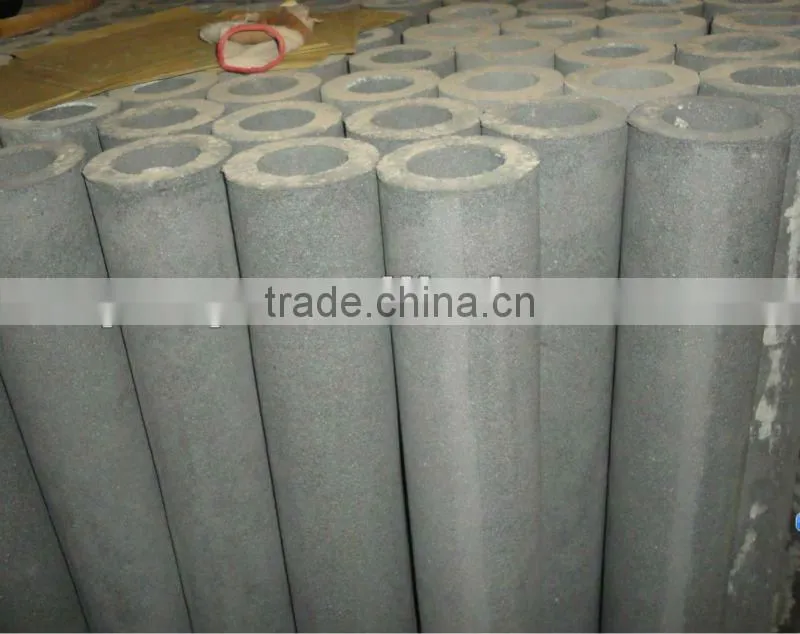

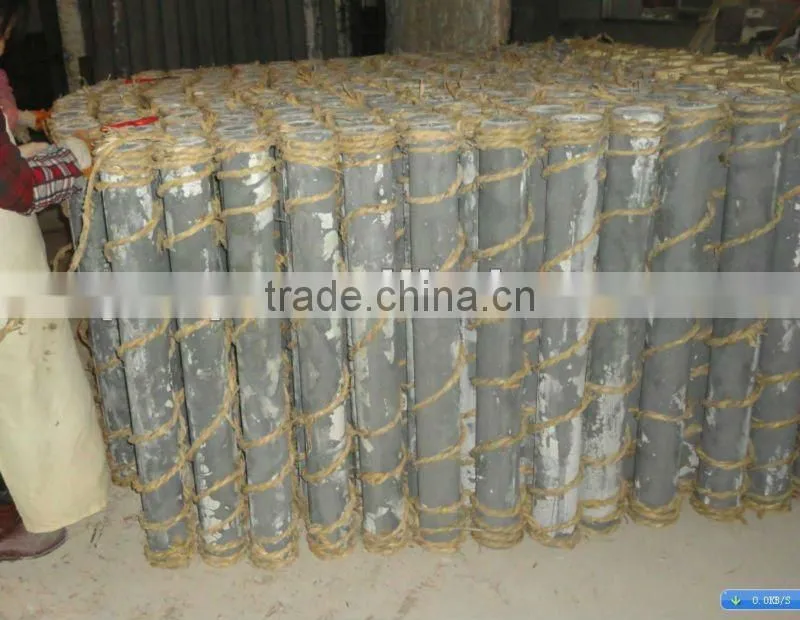

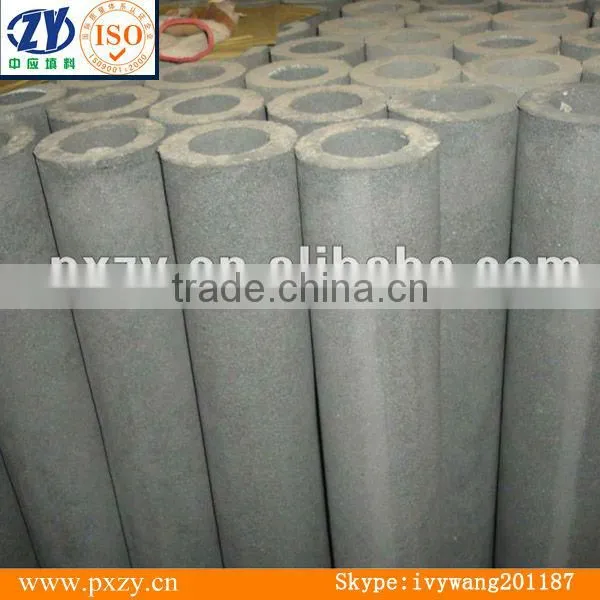

Product Pictures:
Welcome to inquiry!
