Heat Exchanger Block ,Honeycomb Ceramic manufactory

FOB Price

US$ 8.9 - 14.5 / Piece

50 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.thin cordierite ceramic walls,thermal efficiency and pressure drop advantages
2.RTO industry, Thermal stock,waste gas treat

Honeycomb Ceramic Monolith Charactor:

1)It has advatange of high surface area, high heat capacity, low thermal expension, corrosion resistant and temperature

resistance, widely use in chemical, metallurgical, gas and environmental protection industries. Main application are:

a.Tower packing-high surface area, uniform distribution fluid, high efficiency of mass transfer.

b.Catalyst carrier-reduce the oxidation temperature of VOA in purification of industrial exhaus gas.

c.Thermal regenerative packing-good heat capacity, saving energy 40-70%in RTO system.

d.Gas combustion distributing pl ate-distribute uniformly and make the combustion complete, saving energy more than 10%

e.refractory kiln furniture-low bulk density, good thermal efficiency.

2):

3)Physical &Chemical Properties Honeycomb Monoiiths:

Physical &Chemical Properties Honeycomb Monoiiths
Item		Aiumina	Mullite	Dense cordierite	Porous corierite	Mullire Cordierite	Stoneware
Chemical composltion %	Ai₂O₃	48-55	66-72	32-36	32-37	55-65	20-26
	SiO₃	40-45	25-30	45-52	46-52	28-36	68-75
	MgO	/	/	5/8	8/12	2.5-3.2	0.2-0.3
	K20+Na20+CaO	4.0-5.5	≤1.0	≤3.0	≤2.0	≤1.0	≤2.5-4.0
Density, G/cm³		2.7	2.9	2.4-2.6	1.9-2.0	2.9-3.2	2.3-2.5
Coefficient of thermal expansion (20-1000°C),×10-6·°C		5/7	5.5-6.5	2.5-3.5	1.3-2.5	2.5-4.0	5/7
Heat capacity (20-1000°C), J/kg·°C		800-900	1100-1300	800-1200	750-900	850-1100	840-920
Thermal conductivity (20-1000°C), W/m·°C		1.5-2.5	1.5-2.0	1.5-2.5	1.3-1.5	1.5-2.3	1.0-1.2
Thermal shock, °C		≥ 150	≥ 350	≥ 250	≥360	≥250	≥150
Max. Working temp.°C		1300	1600	1300	1300	1400	1300

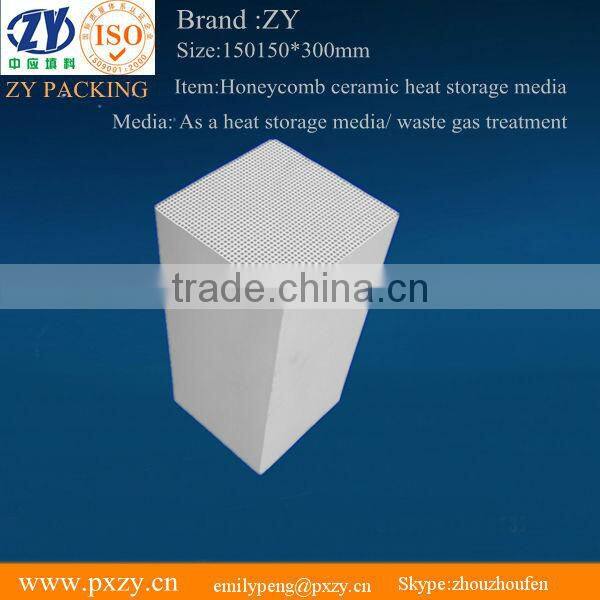

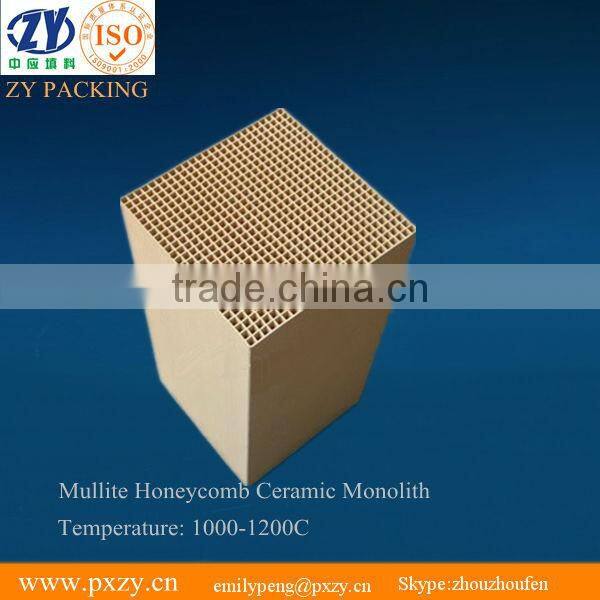

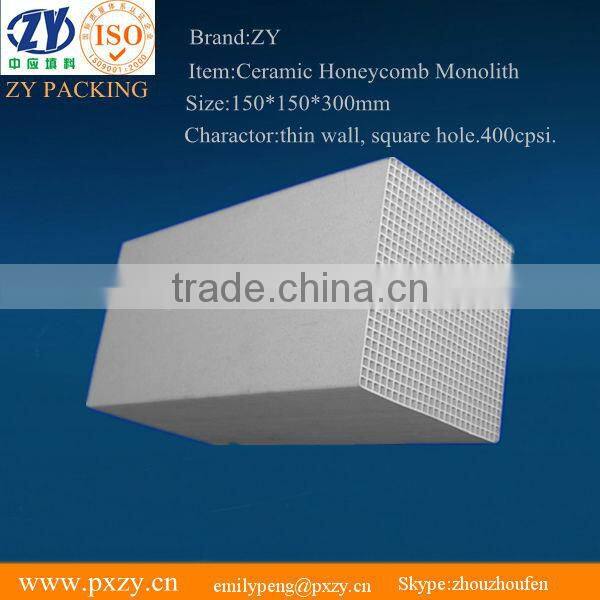

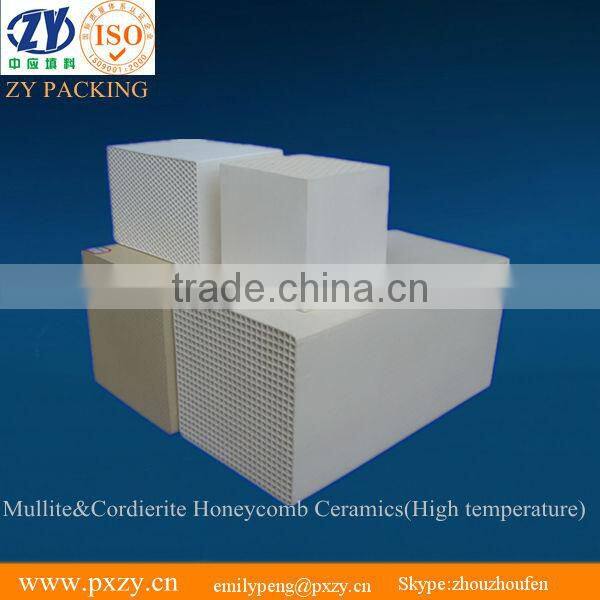

ZY Honeycomb Ceramic Block Sample Photo:

Pingxiang Zhongying Packing Co., Ltd.: Contact nameEmily Peng
Chat Now; Phone0086-799-6812817; AddressNo. 14, Zhenxing Lane, Beiqiao Village, Jiaoqu Xiang, Anyuan Dist., Pingxiang, Jiangxi
