Anti Corrosion&Wear Resistance Ceramic Honeycomb for Car Emission Treatment
- Shenzhen Shanghai or In china
- T/T L/C D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Parts | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | As you need | Brand Name | ZY |
Product Description
Specifications
1.for waste gas treatment, Car waste gas2.HIgh temperate resistance,Long service life
3.ISO9001:2008.100-600CPSI,
Material: cordierite
Cell density: 100-600 cpsi
round, oval, racetrack
Euro II, III, IV
Customization available
Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.
1.Specification of Honeycomb ceramic substrate:
Shape | Hole density (hole/in2) | Size (mm) | Size (inch) |
Round | 300 CPSI | Φ101.6 x152.4 | 4×6 |
Round | 300 CPSI | Φ118.4 x100 | 4.66×3.94 |
Round | 300 CPSI | Φ118.4 x152.4 | 4.66×6 |
Round | 300 CPSI | Φ150 x100 | 5.9×3.94 |
Round | 300 CPSI | Φ170 x100 | 6.69×3.94 |
Round | 300 CPSI | Φ190 x100 | 7.48×3.94 |
Round | 300 CPSI | Φ210 x130 | 8.26×5.12 |
Round | 300 CPSI | Φ240 x76.2 | 9.45×3 |
Round | 300 CPSI | Φ240 x100 | 9.45×3.94 |
Oval | 300 CPSI | Φ120.6 x 80 x 152.4 | 4.75×3.15×6 |
Oval | 300 CPSI | Φ144.8 x 81.3 x 152.4 | 5.7×3.2×6 |
Oval | 300 CPSI | Φ169.7 x 80.8 x 115 | 6.68×3.18×4.52 |
Round | 400 CPSI | Φ150 x100 | 5.9×3.94 |
Round | 400 CPSI | Φ144 x 152.4 | 5.66×6 |
Round | 400 CPSI | Φ118.4 x 152.4 | 4.66×6 |
Round | 400 CPSI | Φ115.4 x 152.4 | 4.54×6 |
Round | 400 CPSI | Φ106 x 100 | 4.17×3.94 |
Round | 400 CPSI | Φ103 x 100 | 4.05×3.94 |
Round | 400 CPSI | Φ101.6 x 152.4 | 4×6 |
Round | 400 CPSI | Φ100 x 100 | 3.94×3.94 |
Round | 400 CPSI | Φ93 x 152.4 | 3.66×6 |
Round | 400 CPSI | Φ83 x 152.4 | 3.26×6 |
Round | 400 CPSI | Φ80 x 100 | 3.15×3.94 |
Round | 400 CPSI | Φ76.2×50 | 3×1.97 |
Round | 400 CPSI | Φ60×85 | 2.36×3.34 |
Oval | 400 CPSI | Φ169 x 85.7 x 115 | 6.65 x 3.37 x 4.52 |
Oval | 400 CPSI | Φ169 x 80.8 x 115 | 6.65 x 3.18 x 4.52 |
Oval | 400 CPSI | Φ148 x 84 x 152.4 | 5.82 x 3.3 x 6 |
Oval | 400 CPSI | Φ144.8 x 81.3 x 152.4 | 5.7 x 3.2 x 6 |
Oval | 400 CPSI | Φ127 x 63.5 x 152.4 | 5 x 2.5 x 6 |
Oval | 400 CPSI | Φ93 x 61 x 90 | 3.66 x2.4 x 3.54 |
Oval | 400 CPSI | Φ120.6 x 80 x 152.4 | 4.75 x 3.15 x6 |
Oval | 400 CPSI | Φ143 x 98 x 152.4 | 5.63 x 3.86 x 6 |
Oval | 400 CPSI | Φ147 x 95 x 152.4 | 5.78 x 3.74 x 6 |
Oval | 400 CPSI | Φ177.8 x 114.3 x 170 | 7 x 4.5 x 6.7 |
Abnormity | 400 CPSI | 144 x 84 x 75 | 5.67 x 3.3x 2.95 |
Abnormity | 400 CPSI | 114 x 105 x 115 | 4.49 x 4.13 x 4.52 |
Abnormity | 400 CPSI | 112.2 x 92 x 115 | 4.42 x 3.62 x 4.52 |
Abnormity | 400 CPSI | 119.5 x 99.5 x 115 | 4.7 x3.92 x 4.52 |
Abnormity | 400 CPSI | 120.2 x 108.2 x 75 | 4.73 x 4.26 x 2.95 |
Abnormity | 400 CPSI | 122.3 x 104.4 x 80 | 4.81 x 4.11 x 3.15 |
Note:we can be customized as per client's requirements.
Order demand:
1. CPSI,Size
2. Coating or not, Coating Proportion
3. Qty
4.FOB or CIF price
Honeycomb Substrate Technical Data:

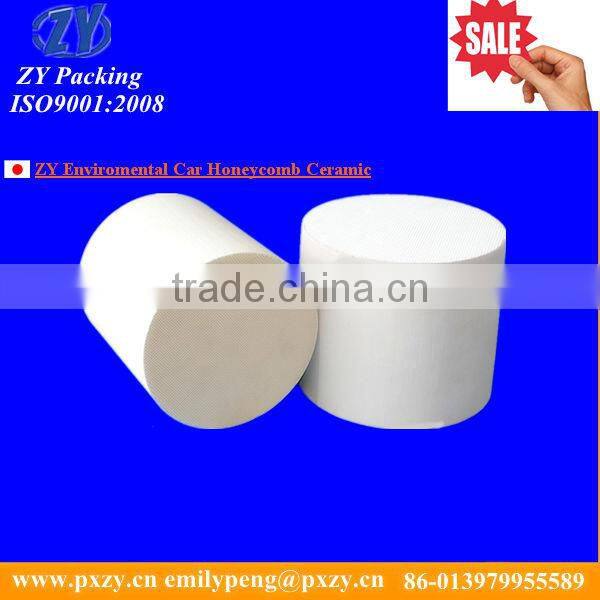

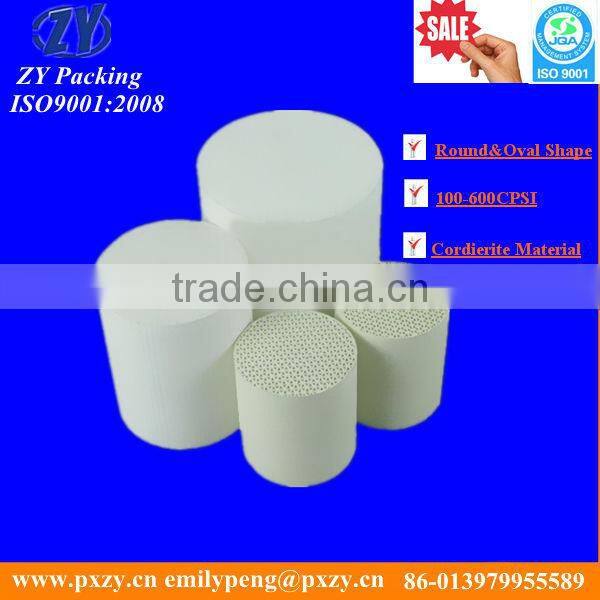

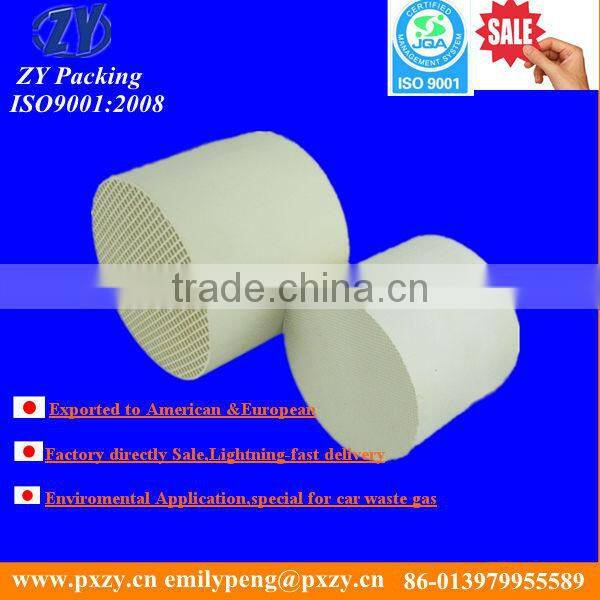

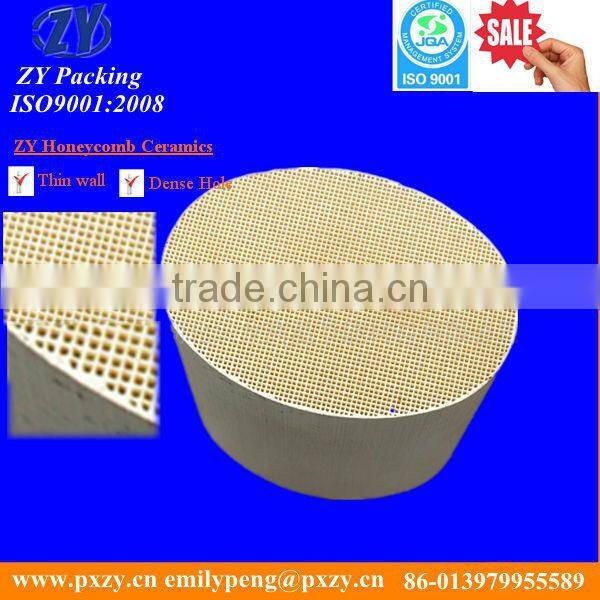

Sample photo:
Manufacture progress:
