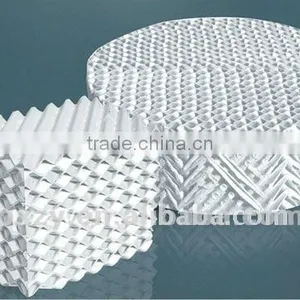

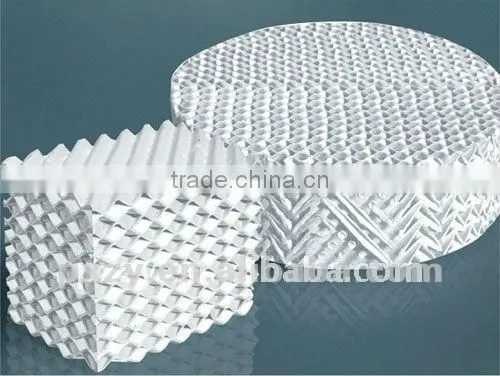

Honeycomb Structured Packing

Specifications

1)20 years professional manufacture
2)High quality and reasonable price
3)Ontime delivery
4)One-stop service
5)ISO9001:2000

Ceramic structured packing is a kind of column shape and single layer corrugated packing, consisting of many pieces with the same geometric shape and parallel to each other. According to the different obliquity of corrugated sheet, this product is divided into X-style and Y-style, and X and Y correspond to the 30°and 45°respectively. Ceramic structured packing has a series of advantages, such as high efficiency, low pressure drop, great treatment, little liquid content, unremarkable amplifying effect and high elasticity in operation.



Applications:
1) Rectifying organic halide.
2) Rectifying and absorbing some corrosive mixtures, which are definitely regulated in pressure drop and theoretic plate number.
3) Applied in some towers that contain a large quantity of natural media used to absorb nitric acid and concentrated sulfuric acid, as well as for purifying the air in chemical plants.



Technical data

	Type	Surface area (m²/m³)	Tilt angle (°)	Void space (%)	Number per m³	Crushing strength (Pa)	Hydraulic diameter (mm)	spray liquid density (M3m2·h)	Max F-factor M/s·(kg/m3)0.5	P Pa/m	Nt M-1
	470X	470	30	75	500-540	>2M	7	0.2-100	1.8	5	5
	450X	450	30	72	480-500	>2M	7	0.2-100	2.0	4.5	3-4
	450Y	450	45	72	500-520	>2M	7	0.2-100	1.8	4	4
	400X	400	30	75	460-480	>2M	8	0.2-100	2.2	4	2.8
	400Y	400	45	75	460-500	>2M	8	0.2-100	2.0	3	3
	350X	350	30	78	400-440	>2M	10	0.2-100	2.6	3	2.5
	350Y	350	45	78	400-440	>2M	10	0.2-100	2.5	2.5	2.8
	250X	250	30	80	390-420	>2M	12	0.2-100	2.8	2.5	2.3
	250Y	250	45	80	390-420	>2M	12	0.2-100	2.6	2	2.5
	150X	150	30	85	220-380	>2M	15	0.2-100	3.0	2	1.8
	150Y	150	45	85	220-380	>2M	15	0.2-100	2.8	1.8	2
	125X	125	30	90	200-230	>2M	28	0.2-100	3.2	1.8	1.5
	125Y	125	45	90	200-230	>2M	28	0.2-100	3.0	1.5	1.8
	100X	100	30	92	190-200	>2M	30	0.2-100	3.5	1.5	1
