Specifications
1.for waste gas treatment, Car waste gas2.HIgh temperate resistance,Long service life
3.ISO9001:2008.100-600CPSI,
Material: cordierite
Cell density: 100-600 cpsi
round, oval, racetrack
Euro II, III, IV
Customization available
Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.
Ellipse Carrier :
| Item | Spec | Holes Shape | Type | ||||
| 1 | T146.8×77×86.4 | Square | 400 Cells/suare inch | ||||
| 2 | T120.6×80×152.4 | Square | 400 Cells/suare inch | ||||
| 3 | T169.7×80.7×76.2 | Square | 400 Cells/suare inch | ||||
| 4 | T144.8×81.3×152.4 | Square | 400 Cells/suare inch | ||||
| 5 | T144.8×81×76.2 | Square | 400 Cells/suare inch | ||||
| 6 | T169.7×80.7×101.6 | Square | 400 Cells/suare inch | ||||
| 7 | T144.8×81.3×100 | Square | 300 Cells/suare inch | ||||
| 8 | T127×63.5×107 | Square | 300 Cells/suare inch | ||||
| 9 | T144.8×81.3×70 | Square | 300 Cells/suare inch | ||||
| 10 | T146.8×77×150 | Square | 300 Cells/suare inch | ||||
Round Ceramic Substrate:
| Item | Spec | Holes Shape | Type | ||||
| 1 | φ83×85 | Square | 400 Cells/suare inch | ||||
| 2 | φ100×100 | Square | 400 Cells/suare inch | ||||
| 3 | φ130×130 | Square | 400 Cells/suare inch | ||||
| 4 | φ118×150 | Square | 400 Cells/suare inch | ||||
| 5 | φ107×100 | Square | 400 Cells/suare inch | ||||
| 6 | φ150×75 | Square | 400 Cells/suare inch | ||||
| 7 | φ83×125 | Square | 400 Cells/suare inch | ||||
| 8 | φ150×150 | Square | 300 Cells/suare inch | ||||
| 9 | φ120×100 | Square | 300 Cells/suare inch | ||||
| 10 | φ101.6×100 | Square | 300 Cells/suare inch | ||||
| 11 | φ94×100 | Square | 300 Cells/suare inch | ||||
| 12 | φ85×70 | Square | 300 Cells/suare inch | ||||
| 13 | φ93×49.5 | Square | 600 Cells/suare inch | ||||
What's the difference of our ceramic substrate with other factory??
1. Material:
Our factory use the best Cordierite material in China, Use high quality, Only ceramic substrate also can achieve Euro one standard. High material quality!
2. For the Rare Earth:
Other factory use local or recycled rare earth, But we imported the high quality of rare earth from Germany company . which is the famous high quality rare earth factory. High Rare Earth!!!!
3.For the delivery
We imported lots of machine for ceramic substrate production, Quickly production and high quality!!
4.For the package
Standard exported package, No broken during transportation, You can use Carton+Palletize or Wooden case+Palletize
Safe Product!!
The latest Euro Car and Truck Waste gas emission standard:
Euro Truck and Bus waste gas emission standard | ||||||
Standaard |
Start date |
CO |
HC |
NOx |
PM |
Smog |
Euro one |
1992,<85kw |
4.5 |
1.1 |
8.0 |
0.612 |
No data |
1992,>85kw |
4.5 |
1.1 |
8.0 |
0.36 |
No data |
|
Euro two |
1996.Oct |
4.0 |
1.1 |
7.0 |
0.25 |
No data |
1998.Oct |
4.0 |
1.1 |
7.0 |
0.15 |
No data |
|
Euro three |
1999.Oct(EEV) |
1.0 |
0.25 |
2.0 |
0.02 |
0.15 |
2000.Oct |
2.1 |
0.66 |
5.0 |
0.1 |
0.8 |
|
Euro Four |
2005. Oct |
1.5 |
0.46 |
3.5 |
0.02 |
0.5 |
Euro Five |
2008.Oct |
1.5 |
0.46 |
2.0 |
0.02 |
0.5 |
Euro Six |
2013.Jan |
1.5 |
0.13 |
0.5 |
0.01 |
|
|
Note:Euro Car waste gas emission standard, Unit: Grams per KWH g/kwh(smog meter-1
| ||||||

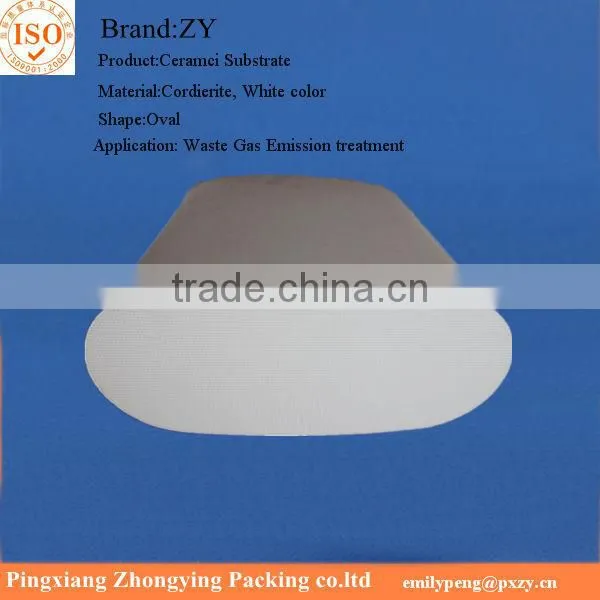

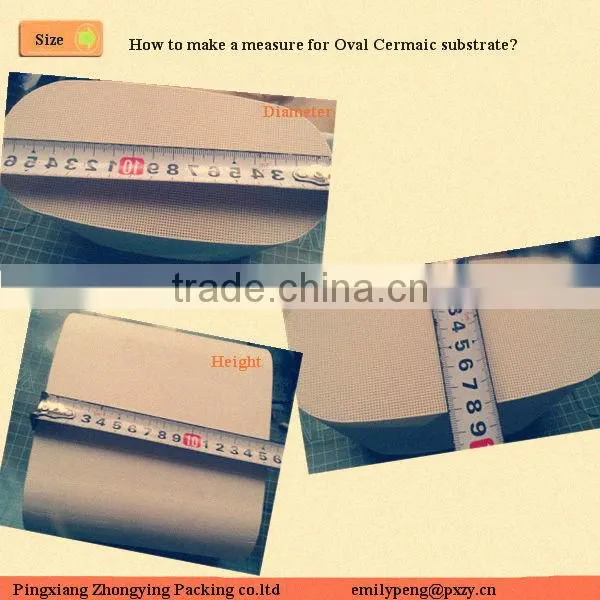

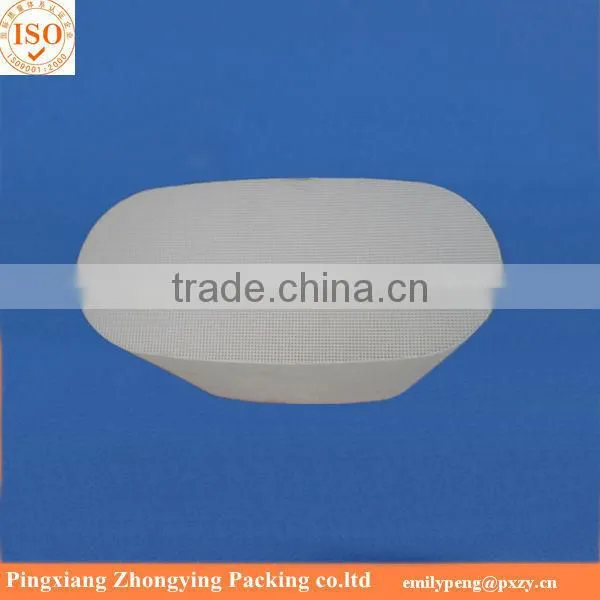

Sample photo:
Manufacture progress:
