Ceramic Monolth, High thermal Ceramic Block

Specifications

1.thin cordierite ceramic walls,thermal efficiency and pressure drop advantages
2.RTO industry, Thermal stock,waste gas treat

Honeycomb ceramic monolith compare with other thermal storage product, eg:balls, have the charactor with large surface are, uniform distribution and high efficieny of mass transfter





For Honeycomb Ceramic Monolith,We can do the material as Cordierite, Mullite, 90%-95% Alumina material

The material of 90%-95% alumina is the highest temperature resistant block .



But the lowest temperature also can achieve in 1000C



Honeycomb Ceramic Monolith Charactor:

1)It has advatange of high surface area, high heat capacity, low thermal expension, corrosion resistant and temperature

resistance, widely use in chemical, metallurgical, gas and environmental protection industries. Main application are:

a.Tower packing-high surface area, uniform distribution fluid, high efficiency of mass transfer.

b.Catalyst carrier-reduce the oxidation temperature of VOA in purification of industrial exhaus gas.

c.Thermal regenerative packing-good heat capacity, saving energy 40-70%in RTO system.

d.Gas combustion distributing pl ate-distribute uniformly and make the combustion complete, saving energy more than 10%

e.refractory kiln furniture-low bulk density, good thermal efficiency.

2):ZY Ceramic Monolith Technical Data:

Tpye and Size of the product
Item		1	2	3	4	5	6
Quantity of channels		5×5	13×13	20×20	25×25	40×40	50×50
Channel density, cm-2		0.15	1	2	3	5	11
Width of channel, mm		26.3	9.2	6.4	4.9	3	2.3
Thickness of wall, m2/m3		2	1.5	1.2	1.0	0.7	0.7
surface area,m2/m3		117	278	455	540	825	1005
Free volume%		77	74	73	67	65	57
Sizes, mm		standard sizes:150×150×50/100/150/300
		others:100×100×100×40



3)Physical &Chemical Properties Honeycomb Monoiiths:

Physical &Chemical Properties Honeycomb Monoiiths
Item		Aiumina	Mullite	Dense cordierite	Porous corierite	Mullire Cordierite	Stoneware
Chemical composltion %	Ai2O3	48-55	66-72	32-36	32-37	55-65	20-26
	SiO3	40-45	25-30	45-52	46-52	28-36	68-75
	MgO	/	/	5/8	8/12	2.5-3.2	0.2-0.3
	K20+Na20+CaO	4.0-5.5	≤1.0	≤3.0	≤2.0	≤1.0	≤2.5-4.0
Density, G/cm3		2.7	2.9	2.4-2.6	1.9-2.0	2.9-3.2	2.3-2.5
Coefficient of thermal expansion (20-1000°C),×10-6·°C		5/7	5.5-6.5	2.5-3.5	1.3-2.5	2.5-4.0	5/7
Heat capacity (20-1000°C), J/kg·°C		800-900	1100-1300	800-1200	750-900	850-1100	840-920
Thermal conductivity (20-1000°C), W/m·°C		1.5-2.5	1.5-2.0	1.5-2.5	1.3-1.5	1.5-2.3	1.0-1.2
Thermal shock, °C		≥ 150	≥ 350	≥ 250	≥360	≥250	≥150
Max. Working temp.°C		1300	1600	1300	1300	1400	1300

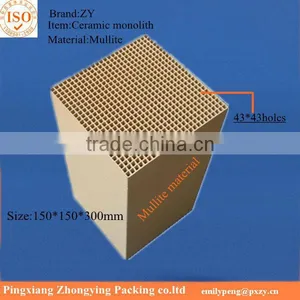

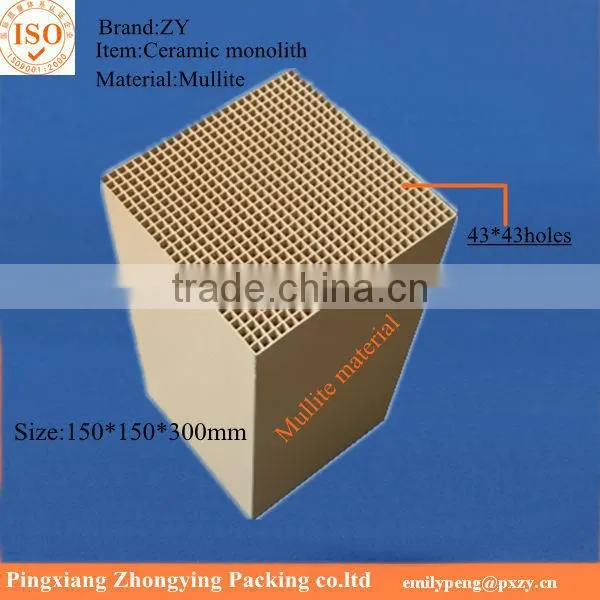

ZY Ceramic Monolith Sample Photo:





For the special size demand, we also can do according to your need
