waste gas emission treatment ceramic honeycomb, Car ceramic substrate

Specifications

1.for waste gas treatment, Car waste gas
2.HIgh temperate resistance,Long service life
3.ISO9001:2008.100-600CPSI,

Material: cordierite
Cell density: 100-600 cpsi
round, oval, racetrack
Euro II, III, IV
Customization available

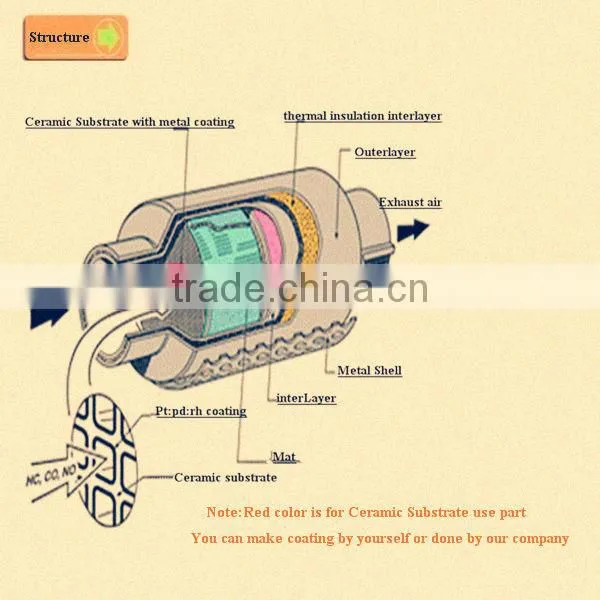

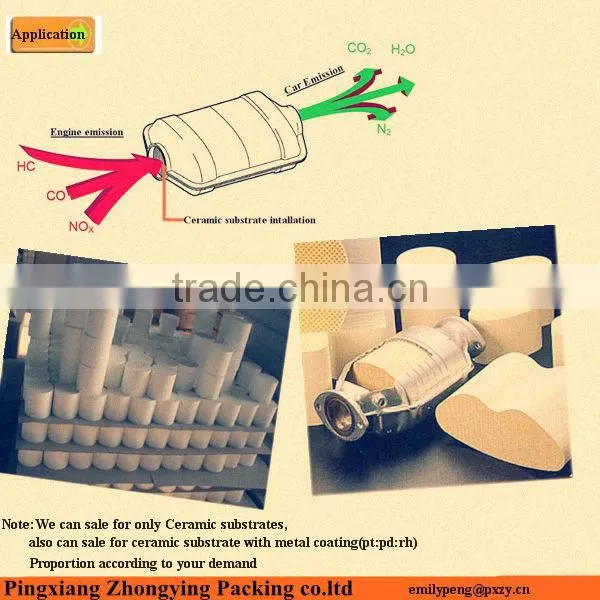

Automobile exhaust gases are conventionally purified with a catalyst supported on a ceramic body able to withstand high temperatures. The preferred catalyst support structure is a honeycomb configuration which includes a multiplicity of unobstructed parallel channels sized to permit gas flow and bounded by thin ceramic walls. The walls of these channels provide the surface for precious-metal catalysts that convert noxious emissions into carbon dioxide, nitrogen and water vapor. We can provide honeycomb ceramic substrate has been coated and non-coated precious-metal.



Ellipse Carrier :

Item	Spec			Holes Shape		Type
1	T146.8×77×86.4			Square		400 Cells/suare inch
2	T120.6×80×152.4			Square		400 Cells/suare inch
3	T169.7×80.7×76.2			Square		400 Cells/suare inch
4	T144.8×81.3×152.4			Square		400 Cells/suare inch
5	T144.8×81×76.2			Square		400 Cells/suare inch
6	T169.7×80.7×101.6			Square		400 Cells/suare inch
7	T144.8×81.3×100			Square		300 Cells/suare inch
8	T127×63.5×107			Square		300 Cells/suare inch
9	T144.8×81.3×70			Square		300 Cells/suare inch
10	T146.8×77×150			Square		300 Cells/suare inch



 Round Ceramic Substrate:

Item	Spec			Holes Shape		Type
1	φ83×85			Square		400 Cells/suare inch
2	φ100×100			Square		400 Cells/suare inch
3	φ130×130			Square		400 Cells/suare inch
4	φ118×150			Square		400 Cells/suare inch
5	φ107×100			Square		400 Cells/suare inch
6	φ150×75			Square		400 Cells/suare inch
7	φ83×125			Square		400 Cells/suare inch
8	φ150×150			Square		300 Cells/suare inch
9	φ120×100			Square		300 Cells/suare inch
10	φ101.6×100			Square		300 Cells/suare inch
11	φ94×100			Square		300 Cells/suare inch
12	φ85×70			Square		300 Cells/suare inch
13	φ93×49.5			Square		600 Cells/suare inch









What's the difference of our ceramic substrate with other factory??

1. Material:

    Our factory use the best Cordierite material in China, Use high quality, Only  ceramic substrate also can achieve Euro one standard.  High material quality!



2. For the Rare Earth:

    Other factory use local or recycled rare earth, But we imported the high quality of rare earth from Germany company . which is the famous high quality rare earth factory. High Rare Earth!!!!



3.For the delivery

    We imported lots of machine for ceramic substrate production, Quickly production and high quality!!



4.For the package

    Standard exported package, No broken during transportation, You can use Carton+Palletize or Wooden case+Palletize

Safe Product!!



The latest Euro Car and Truck Waste gas emission standard:





Euro Truck and Bus waste gas emission standard
Standaard	Start date	CO	HC	NOx	PM	Smog
Euro one	1992,<85kw	4.5	1.1	8.0	0.612	No data
	1992,>85kw	4.5	1.1	8.0	0.36	No data
Euro two	1996.Oct	4.0	1.1	7.0	0.25	No data
	1998.Oct	4.0	1.1	7.0	0.15	No data
Euro three	1999.Oct(EEV)	1.0	0.25	2.0	0.02	0.15
	2000.Oct	2.1	0.66	5.0	0.1	0.8
Euro Four	2005. Oct	1.5	0.46	3.5	0.02	0.5
Euro Five	2008.Oct	1.5	0.46	2.0	0.02	0.5
Euro Six	2013.Jan	1.5	0.13	0.5	0.01
Note:Euro Car waste gas emission standard, Unit: Grams per KWH g/kwh(smog meter-1

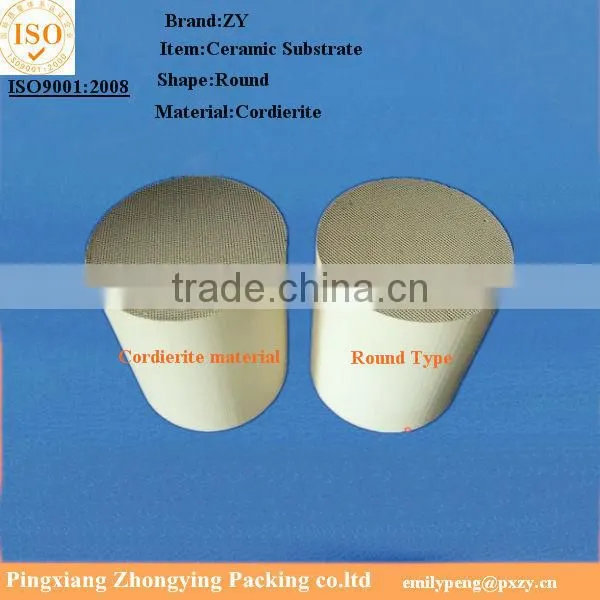

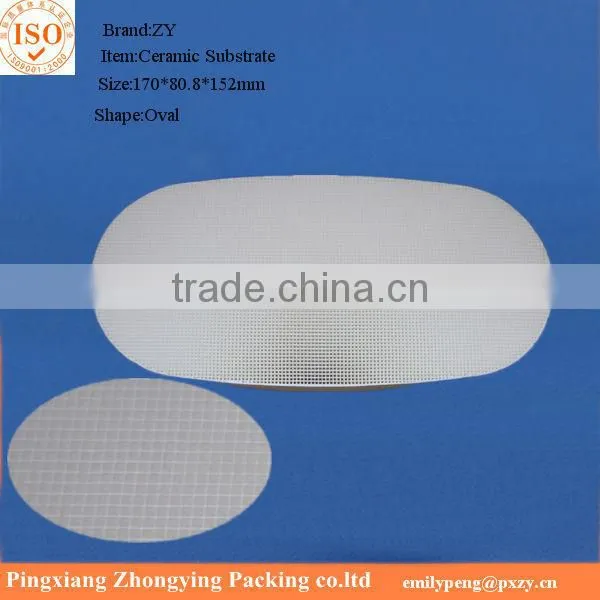

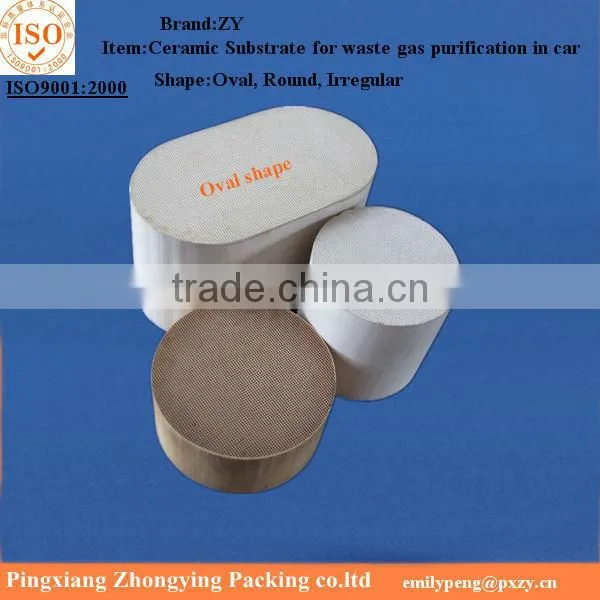

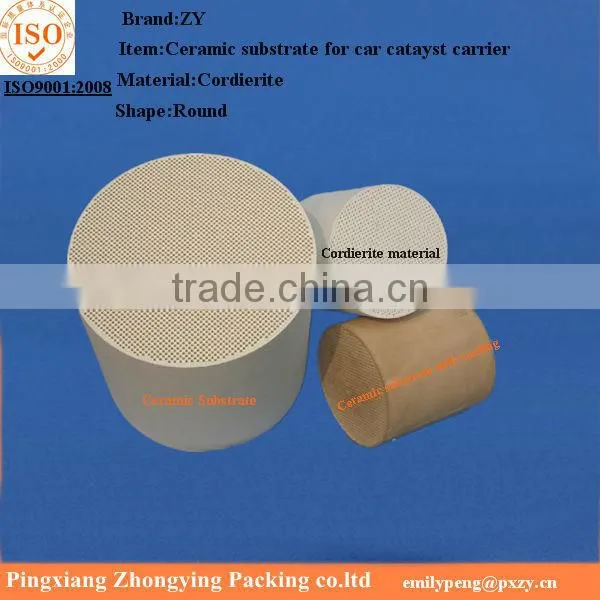

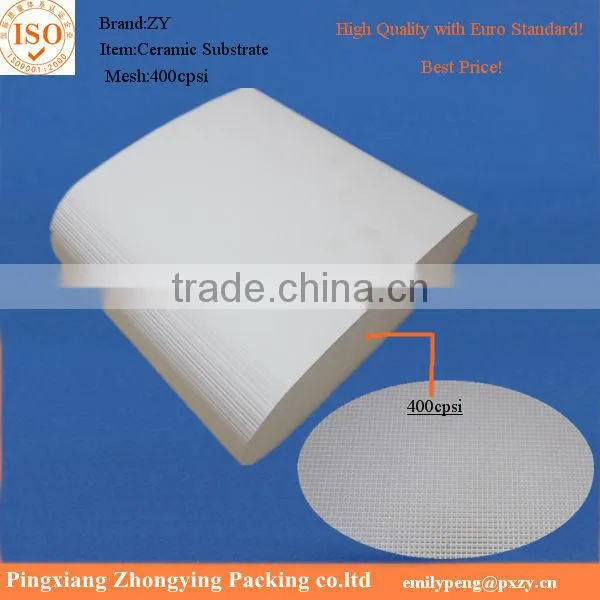

Sample photo:

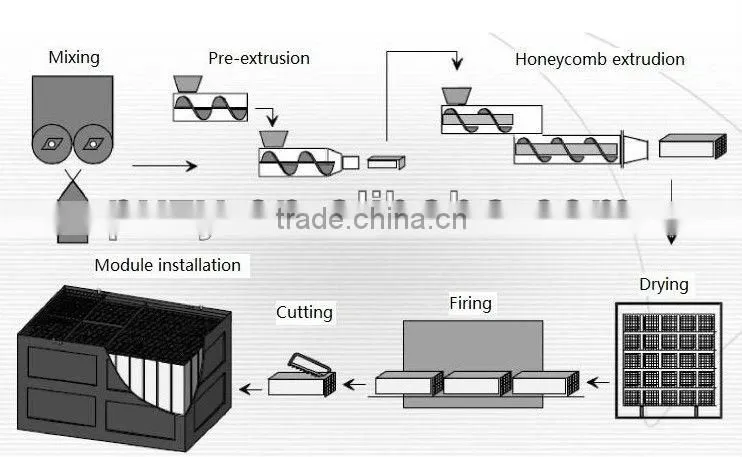

Manufacture progress:
