Ceramic Cascade Ring for Industrial Tower

Ceramic Cascade Ring for Industrial Tower thumbnail-1
Ceramic Cascade Ring for Industrial Tower photo-1
US$ 245 - 659 MOQ: 2 Cubic Meters
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Rings
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shengzhen or any port you need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Rings
Application Industrial Ceramic
Material Alumina Ceramic
Model Number Ceramic Cascade Ring
Brand Name zy

Specifications

1.high mechanical strength, high chemical stability, and excellent heat endurance
2.resist high temperature, acid (except HF),

Performance features and uses of Ceramic Cascade ring:

  Ceramic Cascade Ring is a kind of random packing further developed on the basis of Rasching Ring. The ratio of ring height to its diameter is ½ and a conical rolled edge is added to the ring’s end.



The ring’s height is decreased and tube wall is thinned. Due to the additional conical rolled edge, the mechanical strength of the ring is improved and the ring’s symmetry is destroyed. Therefore, accumulation voidage is increased significantly. The resistance to vapor is decreased and flux is increased a lot when vapor-liquid flows through the packing bed. Distribution of vapor-liquid is distributed more evenly and the interface between vapor and liquid is increased so as to improve the mass transfer efficiency..

With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Cascade Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation..



Technical data of the Ceramic Cascade Ring:

   Ceramic Cascade ring for industrial tower

Specifications

(mm)

Diameter*

Height*

Thickness
(mm)

Surface area (m²/m³)

Void space
(%)

Number per m³

Bulk density (kg/m³)

Packing factor
(m-1)

25

25*20*3

270

74

74000

624

172

50

50*30*5

108.8

78.7

9091

516

223

76

76*45*7

63.4

79.5

2517

436

126

Note: The above data is for reference only.

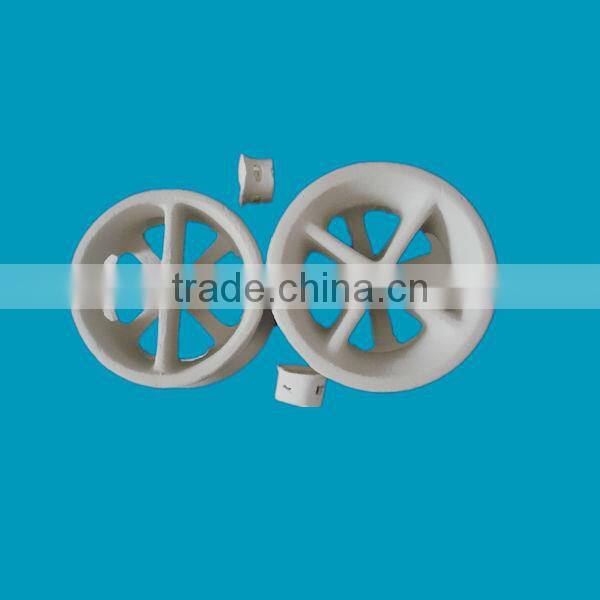

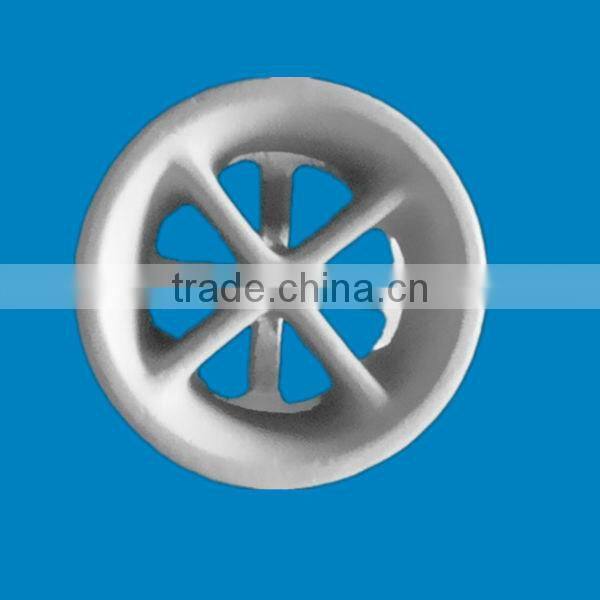

Sample photo:

Ceramic Cascade ring for industrial towerCeramic Cascade ring for industrial tower
