Anti Acid&alkali Charactor Ceramic Raschig rings& Ceramic Raschig rings tower packing
- 1000 Metric Ton / Metric Tons per Month
- Shenzhen Shanghai and any port in China
- T/T L/C D/P D/A Credit Card
You May Like
-
Ceramic Rasching Ring,industrial ceramic ring with 1", 1 1/2". 2"
-
1", 1 1/2". 2" Ceramic Tri-pac Tower packing, Ceramic Random tower packing
-
Anti Acid&Alkali Ceramic Tri-pac Rings tower packing
-
Ceramic Tri-Y packing Rings with high quality
-
29*21 small size ceramic ring,unique ceramic ring for packing
-
Ceramic Raschig Ring, Ceramic Cylinder Rings
Product Details
| Place of Origin | Jiangxi, China | Type | Ceramic Rings | |
| Application | Industrial Ceramic | Material | Alumina Ceramic | |
| Model Number | Raschig ring | Brand Name | ZY |
Product Description
Specifications
1)20 years professional manufacture2)industrial ceramic ring
3)Ontime delivery
4)One-stop service
5)ISO9001:2000
Ceramic Rasching Ring, industrial ceramic ring
is a traditional packing with simple shape and the outside diameter is equal to the height. The large size of the Rasching ring (above 100mm ) generally use the entire masonry filling, the size below 80mm generally use the random packing.
Features/function:
1)High free volume, large void space;
2)low pressure drop;
3)Top mass transfer performance
4)High floating point;
5)Excellent corrosion and heat resistance
Material:
Ceramic
Application:
Used in chemical industry, Alkali industry,protection of environmental, petroleum industry ,coal gas industry,etc .It’s available for the distillation and absorption of a liquid and gas, atmospheric and vacuum distillation unit, crude distillation unit, desulphurization system, gas liquid separator/separate of the gas and liquid etc.
Technical data of the Ceramic Rasching Ring:
| Specification (mm)
| Diameter* Height* Thickness | Surface area (m²/m³) | Void space | Number per m³ | Bulk density (kg/m³) | Packing factor |
6 | 6*6*2 | 789 | 73 | 3110000 | 737 | 2030 | |
10 | 10*10*2 | 440 | 70 | 720000 | 700 | 1280 | |
15 | 15*15*2 | 330 | 70 | 250000 | 690 | 960 | |
16 | 16*16*2 | 305 | 73 | 192500 | 730 | 784 | |
25 | 25*25*2.5 | 190 | 78 | 49000 | 505 | 400 | |
| 40 | 40*40*5 | 136 | 75 | 12700 | 577 | 305 |
50 | 50*50*5 | 93 | 81 | 6000 | 457 | 177 | |
80 | 80*80*9.5 | 90 | 68 | 1910 | 714 | 234 | |
100 | 100*100*10 | 70 | 70 | 1000 | 700 | 172 | |
150 | 150*150*15 | 50 | 68 | 295 | 790 | 142 |

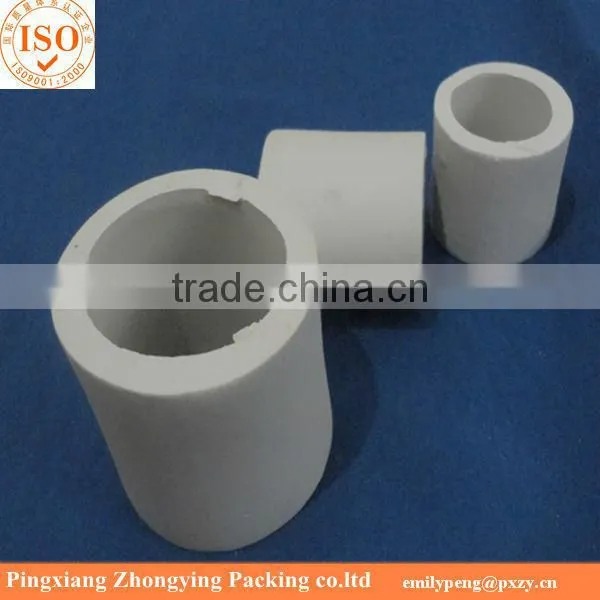

Ceramic Raschig Ring Sample Photo:
Ceramic Random Packing Production:
