Specifications
1)20 years' professional manufacture2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001:2008

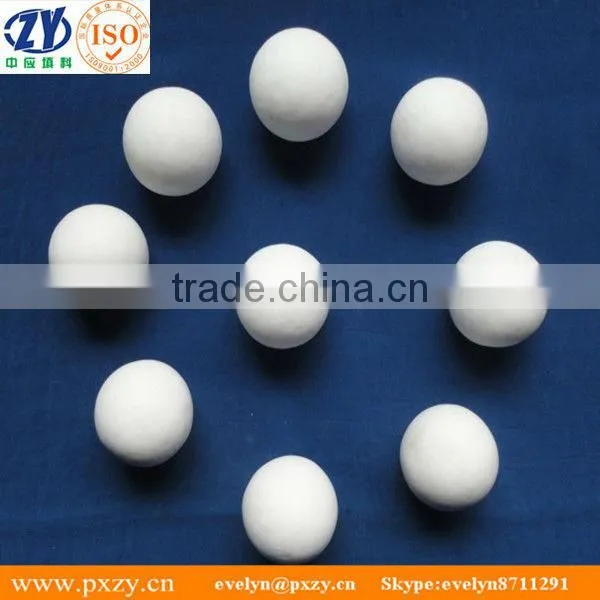

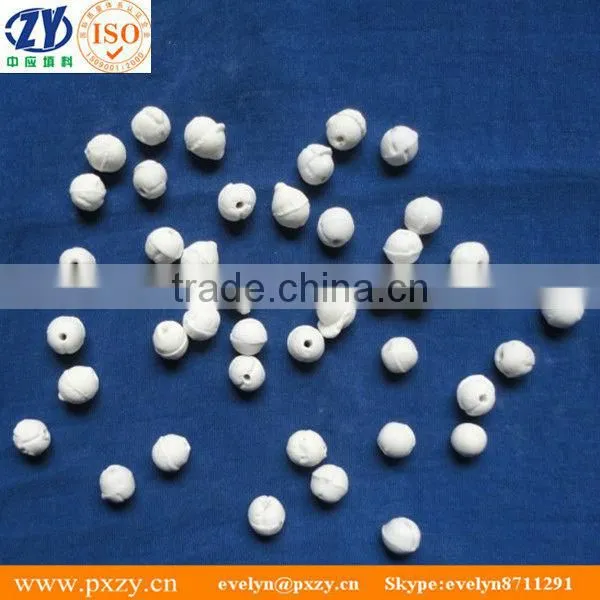

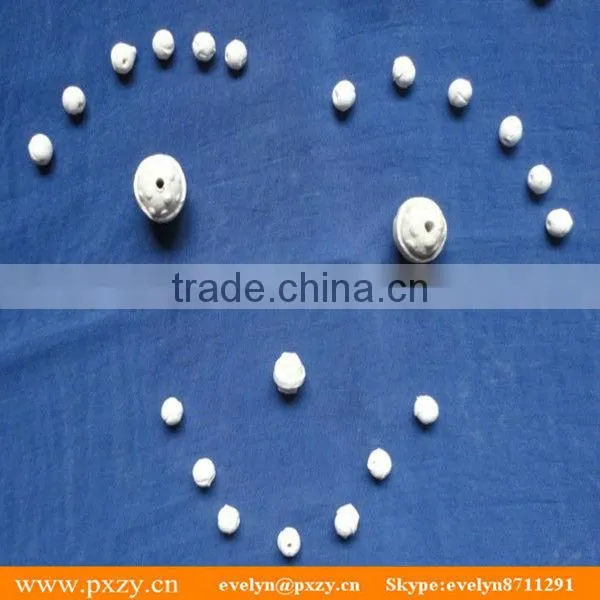

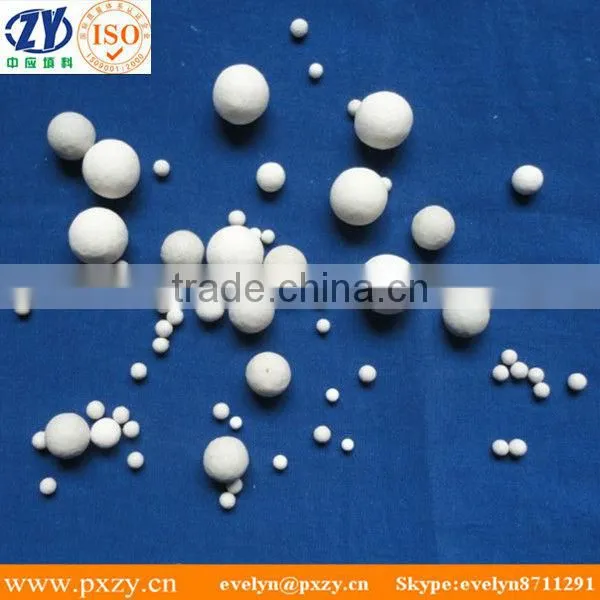

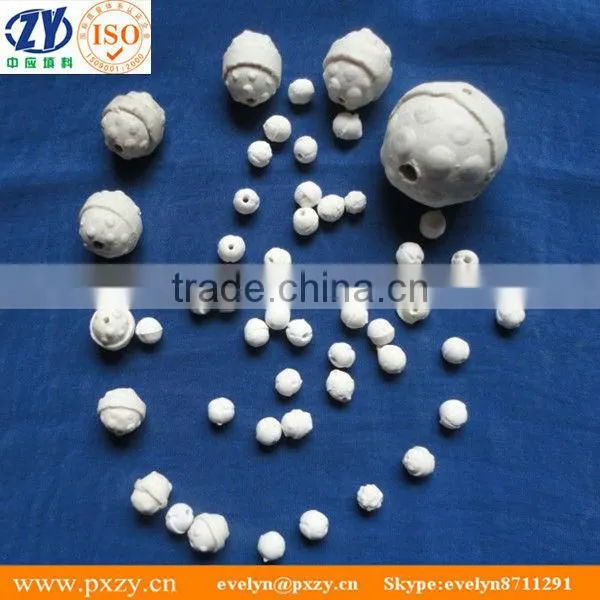

Ceramic ball with hole as catalyst supporter media
| Product Show |
1.Description of product
Technical date
|
Type Item |
HH-1 |
HH-2 |
HH-3 |
|
Chemical composition |
AL2O3% |
15-95 |
||
AL2O3+SiO2% |
>92 |
|||
Fe2O3% |
<1 |
|||
Aperture μm |
0.5-35 |
40-100 |
110-1000 |
|
Porosity % |
20-30 |
15-25 |
15-25 |
|
Acid resistance % |
≥98 |
≥98 |
≥96 |
|
Alkali % |
≤85 |
≤85 |
≤80 |
|
Thermal stability T°C |
800 |
800 |
800 |
|
Crush strength N/granule |
100-20000 ( According to the size) |
|||
Bulk density kg/m3 |
0.5-1.0 |
|||
Note: The above data is for reference only. | ||||
Variety and specifications
Ceramic BL porous carrier with its chemical composition of AL2O3 content from 15% to 85% is divided into 11 varieties. Every 5% is a grade, And diameter: 3, 6, 8, 10, 13, 16, 20, 25, 30, 50, 75 ( mm ), shape is BL pineapple ball shape design. Other shapes and specifications can also be designed according to user requirements.
Application
Environmental protection:
1.Remove water in wastewater
2.The terminal processing of flotation method and evaporation
3.Wet dust removal in boiler furnace
4.Oil-water separation
5.Flue gas filter
Industry area:
1.hydrogenation
2.hydrogen production
3.reformer
4.diesel oil hydrogenation plant
5.natural gas filtration
pressed air filtration
7.flour dust removal in carbon dioxide gas
8.to filter organic solvent, decarburizing, hydrofining solvent
9.quality of water filtration in oxydol production
| Company Show |
1. About us
Pingxiang Zhongying Packing Co., Ltd., which is located in Pingxiang City, Jiangxi Province, the hometown of ceramics, is a manufacturer of petrochemical and environmental protection packing and catalyst, such as molecular sieves, activated aluminum, inert alumina ceramic ball, ceramic packing, plastic packing, metallic packing, honeycomb ceramics, catalyst bed support media, activated carbon, petrochemical additives, ceramic filter, water treatment filter etc.
Our factory is situated in Xiangdong Industrial Park in Pingxiang City,and it covers an area of 70000 square meters, with a construction area of 30000 square meters and fixed assets worth RMB17.5 million.For better development and international standards, our company has passed ISO9001-2000 quality system certification. Our product has been widely used in petroleum, chemical industry, metallurgy, electric power, environmental, pharmaceutical, aerospace, aviation and other industries. Our product sells well at home and abroad.
2. Why Choose us
1) Complete production line, quick delivery
2) Advanced equipments, good quality
3) Professional skills, all-related services

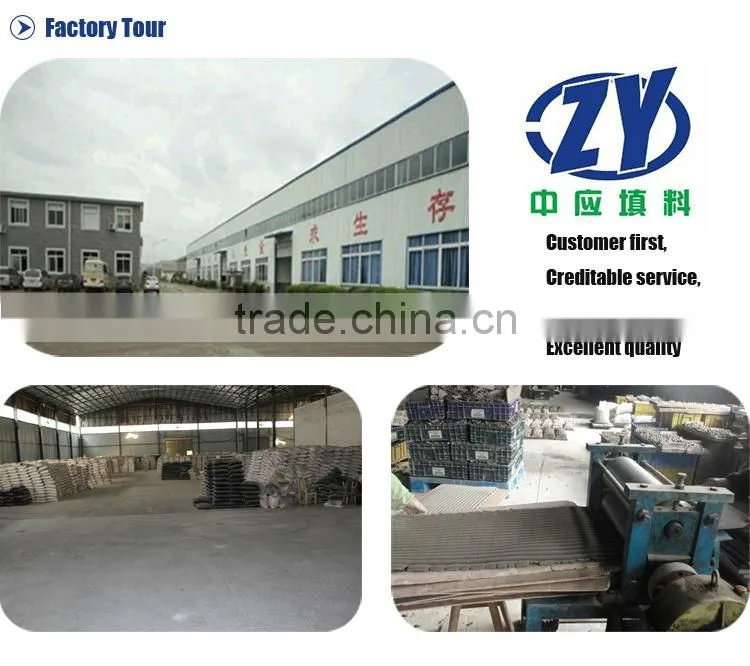

Factory Tour

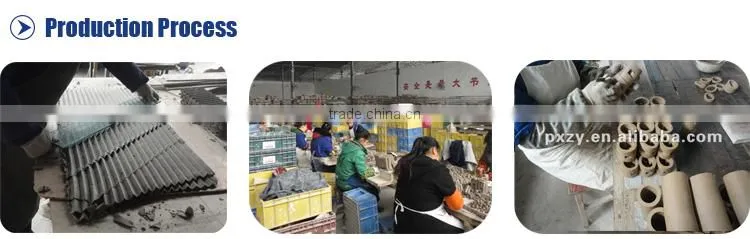

Production Process
3. Certifications
4. Our Markets
| Main Markets | 20.00% North America |
| 20.00% South America | |
| 15.00% Eastern Europe | |
| 10.00% Southeast Asia | |
| 10.00% Africa | |
| 5.00% Oceania | |
| 5.00% Northern Europe | |
| 5.00% Southern Europe | |
| Total Annual Sales Volume | US$2.5 Million - US$5 Million |
| Export Percentage | 51% - 60% |
5. General Question
1.a. Are you Trading Company or Factory:
b. We have more than 20 experience year production in this line .
2.a. What's your production ability for one month?
b. We can product 1000 metric ton for one month .
3.a. What's your MOQ?
b. 1 metric ton is available .
4.a. What's your shipping port?
b. Shenzhen,Shanghai and any port in China
5.a. What's your Payment Terms?
b.L/C,D/A,D/P,T/T,Western Union
6. Contact
Try order is acceptable. Sample is available.
Welcome to inquire, we will feedback within 24 hours.
