Specifications
1)heat resistant ceramic3)Ontime delivery
4)One-stop service
5)ISO9001:2000
Ceramic Intalox saddles has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Ceramic Intalox saddle is the opening packing with the structure of groove hemicycle, which reduce the cover between the packing and enlarge the space, therefore, the availability of the mass transfer surface will be enhanced efficiently, and it has favorable liquid distributing capability.
Technical data of the Ceramic Intalox Saddle
|
Specification (mm) |
Bulk density (kg/m³) |
Surface area (m²/m³) |
Void space |
Number per m³ |
Packing factor |
12 |
720 |
623 |
71.7 |
748000 |
200 |
|
19 |
688 |
334 |
73 |
310510 |
130 |
|
25 |
688 |
253 |
73 |
84600 |
85 |
|
38 |
640 |
164 |
75 |
21000 |
50 |
|
50 |
577 |
115 |
77.4 |
9400 |
37 |
|
76 |
623 |
92 |
75.5 |
2800 |
24 |
|
Note: The above data is for reference only. | ||||||
Thermal shock test for Intalox Saddles
For example shipping the saddles over 80 M3:
1) Randomly pick 100-200 pieces of ceramic saddles for RTOs from the batch or shipment
2) For each sample selected, heat it up to 820 and maintain them at this temperature for 30 minutes.
3) Drop the hot pieces into cold 20 water
4) Repeat steps 2 & 3 for10 times on each and every piece in the sample lot.
5) Examine the pieces and count the percent that show clear signs of breakage and/or cracking. Our standard is less than seven (7%) percent.

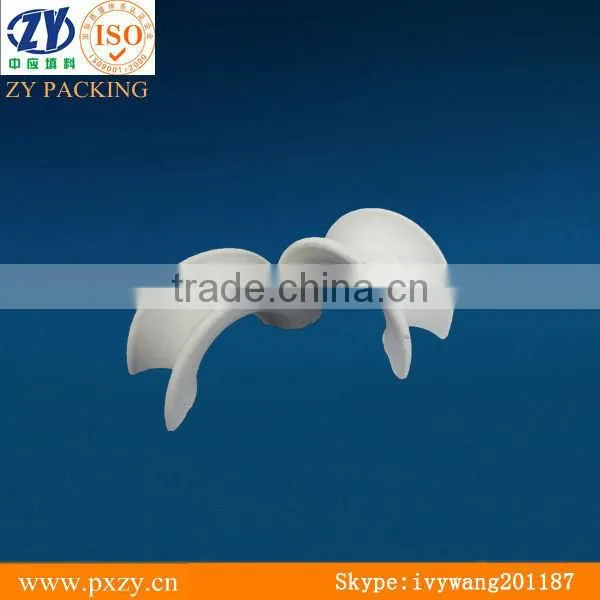

Product picture:

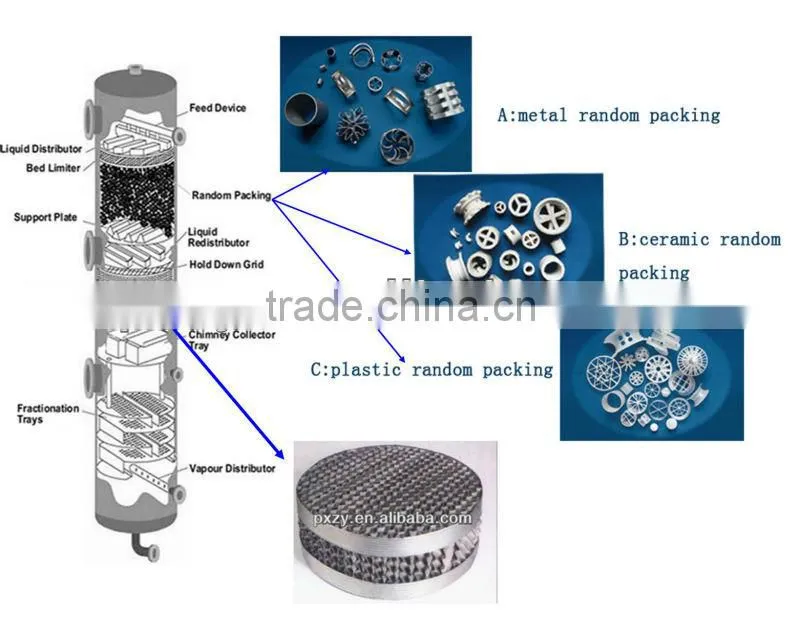

workflow:

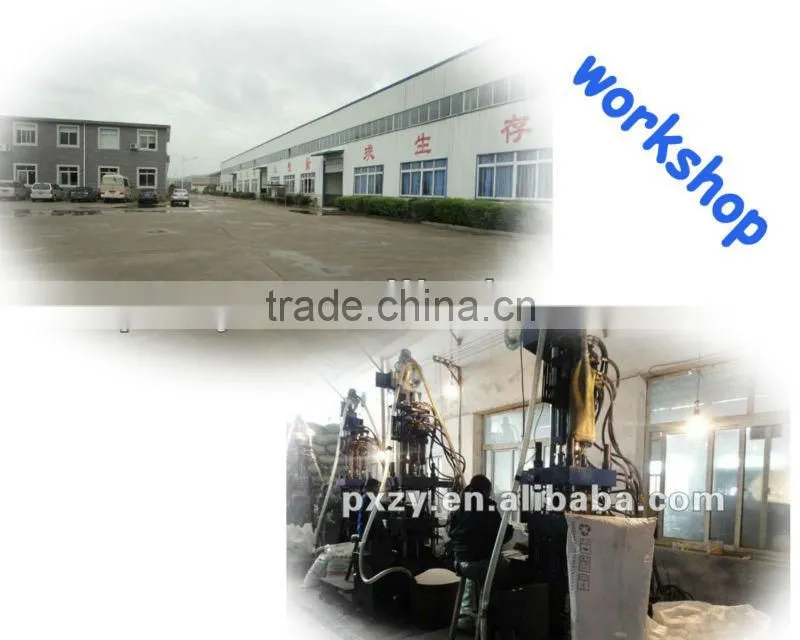

Workshop:
Welcome to inquiry!
