Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)

Ceramic Cascade Ring(1"inch, 2"inch & 3"inch) thumbnail-1
Ceramic Cascade Ring(1"inch, 2"inch & 3"inch) photo-1
US$ 360 - 1,500 MOQ: 1 Ton
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Rings
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shengzhen or any port you need
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Rings
Application Industrial Ceramic
Material Alumina Ceramic
Model Number Ceramic Cascade Ring
Brand Name zy

Specifications

1)20 years' professional manufacture
2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001

Performance features and uses:

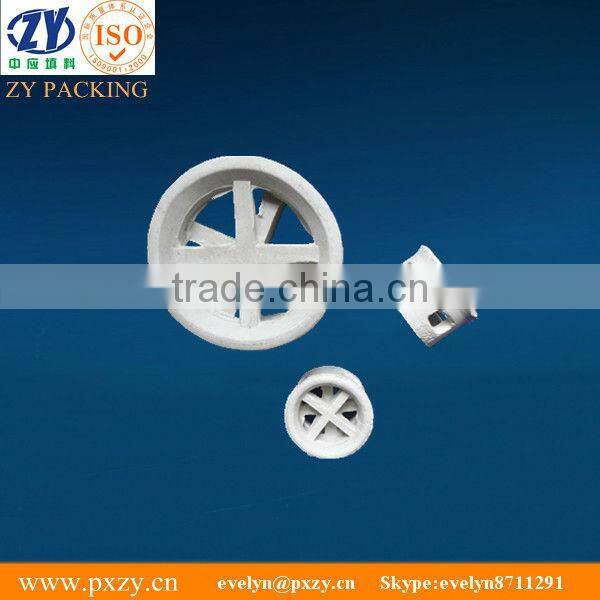

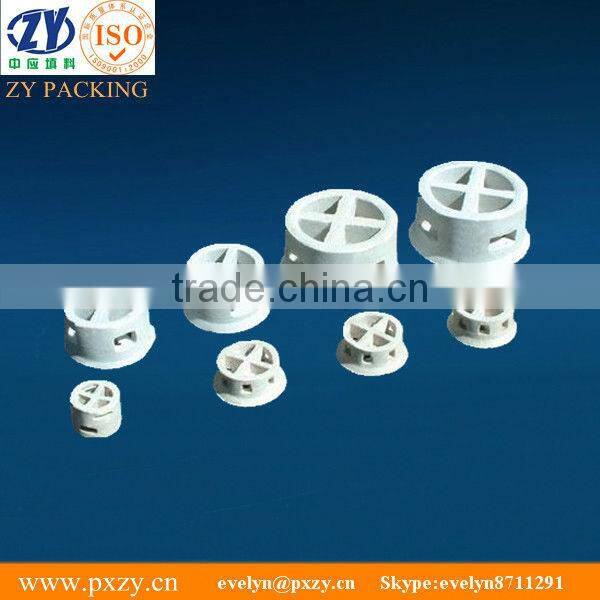

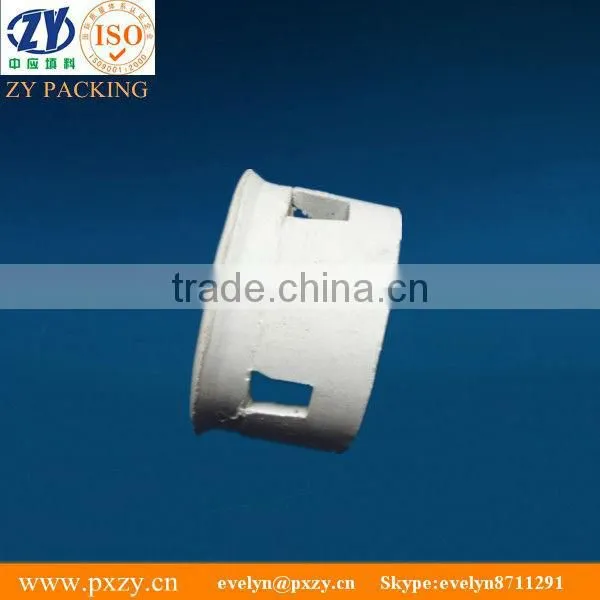

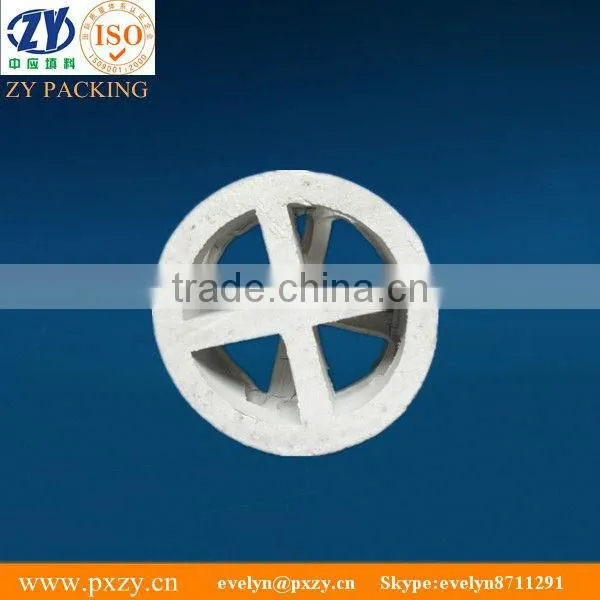

Ceramic Cascade Ring is a kind of random packing further developed on the basis of Rasching Ring. The ratio of ring height to its diameter is ½ and a conical rolled edge is added to the ring’s end.



The ring’s height is decreased and tube wall is thinned. Due to the additional conical rolled edge, the mechanical strength of the ring is improved and the ring’s symmetry is destroyed. Therefore, accumulation voidage is increased significantly. The resistance to vapor is decreased and flux is increased a lot when vapor-liquid flows through the packing bed. Distribution of vapor-liquid is distributed more evenly and the interface between vapor and liquid is increased so as to improve the mass transfer efficiency.

With the characters of high mechanical strength, high chemical stability, and excellent heat endurance, Cascade Ring can resist high temperature, acid (except HF), alkali, salt and various organic solvents. It's widely applied in various packing towers of desiccation, absorption, cooling, washing, and regeneration in industries of petrochemical, chemical, metallurgy, gas and oxygen generation.



Technical data of the Ceramic Cascade Ring:

   Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)

Specifications

(mm)

Diameter*

Height*

Thickness
(mm)

Surface area (m²/m³)

Void space
(%)

Number per m³

Bulk density (kg/m³)

Packing factor
(m-1)

25

25*20*3

270

74

74000

624

172

50

50*30*5

108.8

78.7

9091

516

223

76

76*45*7

63.4

79.5

2517

436

126

Note: The above data is for reference only.



Our advantages:

1. We will supply with the best price in 24 hours.

2. We will supply with all information to u ,about package, weight etc.

3. Except the size we have now , We also can produce special size as u need.

4. We can communicate with u by Fluently and professional English .

5. If u are urgent, U can add my Skype: evelyn8711291 , or Call me at any time: 8615279918717.

6. For all products u buy, our product's warranty is for 2 years.

Our service at promise:
1.We promise to reply your inquiry relational our product within 24hours.
2.OEM&ODM service for your unique idea with absolutely convenient.
3.Experienced foreign trader with professional product knowledge.
4.Value on business credit , promise to protect your sales data, design,patent info.

Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)

Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)Ceramic Cascade Ring(1"inch, 2"inch & 3"inch)
