Help CenterCeramic Pall Ring Random Tower Packing Media 25mm,38mm,50mm,80mm
Related Products
-
Ceramic Cascade Mini Ring (25mm,38mm,50mm,76mm)US$ 360 - 1,500MOQ: 1 Ton -
Ceramic Rasching Ring,ceramic Packing ,rolling Packing,ceramic Rolling RingUS$ 165 - 225MOQ: 1 Metric Ton
-
Ceramic Rasching Ring,ceramic Packing ,rolling PackingUS$ 165 - 225MOQ: 1 Metric Ton
-
Ceramic Rasching Ring,ceramic Packing ,ceramic Roll PackingUS$ 165 - 225MOQ: 1 Metric Ton
-
Ceramic Rasching Ring,ceramic Tower Packing,customary Ceramic RingUS$ 165 - 225MOQ: 1 Metric Ton
Specifications
1)20 years' professional manufacture2)Good quality and favorable price
3)Fast delivery and best service
4)ISO9001

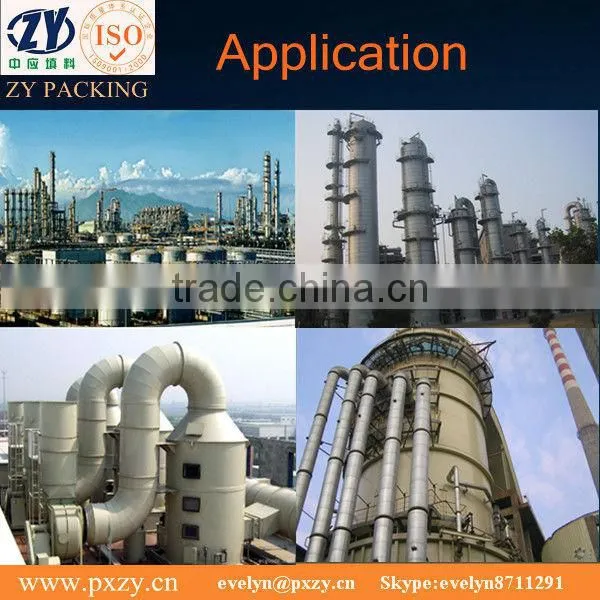

Ceramic pall ring has excellent acid resistance and heat resistance. It can resist to corrosion of various inorganic acids, organic acids and organic solvents except hydrofluoric acid, and can be used in high or low temperature conditions. Consequently the application range is very wide. It can be used in the drying columns, absorbing columns, cooling towers, scrubbing towers and actifier columns in chemical industry, metallurgy industry, coal gas industry, oxygen producing industry, etc.
Technical data
Spec. |
D*H*T(mm) |
Surface area (m²/m³) |
Free volume (%) |
Number per m³ |
Bulk density (Kg/m³) |
Dry Packing Factor(m-1) |
Ø 25 |
25*25*3 |
220 |
73 |
54000 |
620 |
565 |
Ø 38 |
38*38*4 |
150 |
75 |
13400 |
570 |
356 |
Ø 50 |
50*50*5 |
120 |
78 |
6800 |
550 |
252 |
Ø 80 |
80*80*8 |
75 |
80 |
1950 |
520 |
146 |
Chemical composition
SiO2 |
Al2O3 |
Fe2O3 |
CaO |
K2O+Na2O |
>70% |
23-30% |
<1% |
<1-2% |
<2-4% |
Physical properties
Index |
Value |
Specific gravity(g/cm3) |
2.25-2.35 |
Water absorption(%) |
<0.5 |
Acid-resisting strength, %Wt. Loss (ASTMc279) |
<4 |
Firing temperature(Degree C) |
1280-1320 |
Softening point( Degree C) |
>1400 |
Density(kg/m3) |
2350 |
