Ceramic Rasching Ring,ceramic Packing ,rolling Packing,ceramic Rolling Ring

Ceramic Rasching Ring,ceramic Packing ,rolling Packing,ceramic Rolling Ring thumbnail-1
Ceramic Rasching Ring,ceramic Packing ,rolling Packing,ceramic Rolling Ring photo-1
US$ 165 - 225 MOQ: 1 Metric Ton
Key Specifications
Get Latest Price
Place of Origin:
Jiangxi, China
Type:
Ceramic Rings
Application:
Industrial Ceramic
Contact Supplier Request Quote Chat Now
Pingxiang Zhongying Packing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Shanghai and any port in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangxi, China
Type Ceramic Rings
Application Industrial Ceramic
Material Alumina Ceramic
Model Number X89
Brand Name ZY

Specifications

1)Ceramic roll packing
2)ceramic rolling ring
3)Sizes:any size are available
4)One-stop service
5)ISO9001:2008

Ceramic Rasching Ring is a traditional tower packing with simple shape and the outside diameter is equal to the height. The large size of the Rasching ring (above 100mm ) generally use the entire masonry filling, the size below 80mm generally use the random packing.



Ceramic Rasching Ring Features:



1)High free volume, large void space;



2)low pressure drop;



3)Top mass transfer performance



4)High floating point ; gas-liquid contact area



5)Excellent corrosion and heat resistance







Ceramic Rasching Ring Material:



Ceramic







Ceramic Rasching Ring Application:



Widely used in chemical industry, Alkali industry ,protection of environmental, petroleum industry ,coal gas industry,etc .







Technical data of the Ceramic Rasching Ring





Specification

(mm)



Diameter*

Height*

Thickness
(mm)

Surface area (m²/m³)

Void space
(%)

Number per m³

Bulk density (kg/m³)

Packing factor
(m-1)

6

6*6*2

789

73

3110000

737

2030

10

10*10*2

440

70

720000

700

1280

15

15*15*2

330

70

250000

690

960

16

16*16*2

305

73

192500

730

784

25

25*25*2.5

190

78

49000

505

400



40

40*40*5

136

75

12700

577

305

50

50*50*5

93

81

6000

457

177

80

80*80*9.5

90

68

1910

714

234

100

100*100*10

70

70

1000

700

172

150

150*150*15

50

68

295

790

142

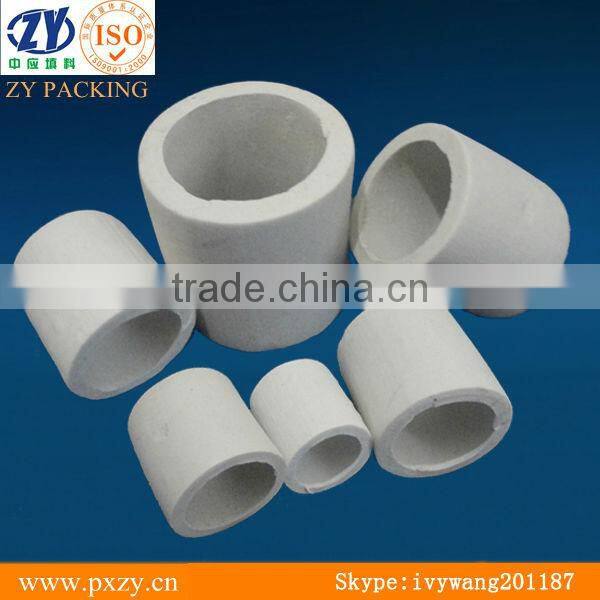

ceramic rolling ring



ceramic roll packing



 Ceramic Rasching Ring,ceramic packing ,rolling packing,ceramic rolling ring

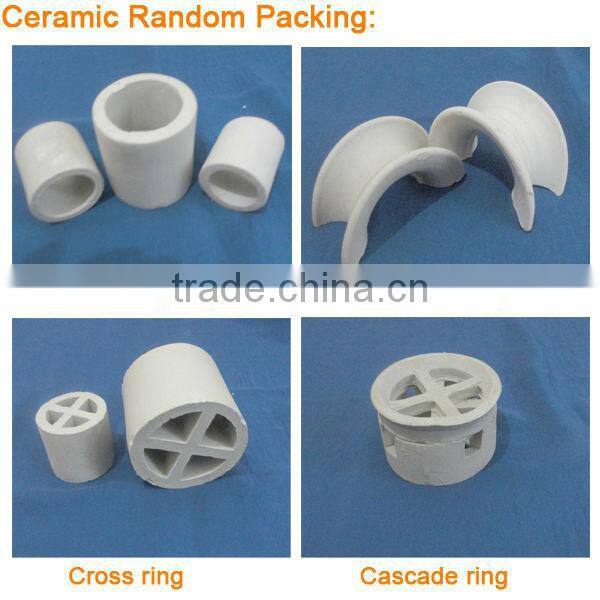

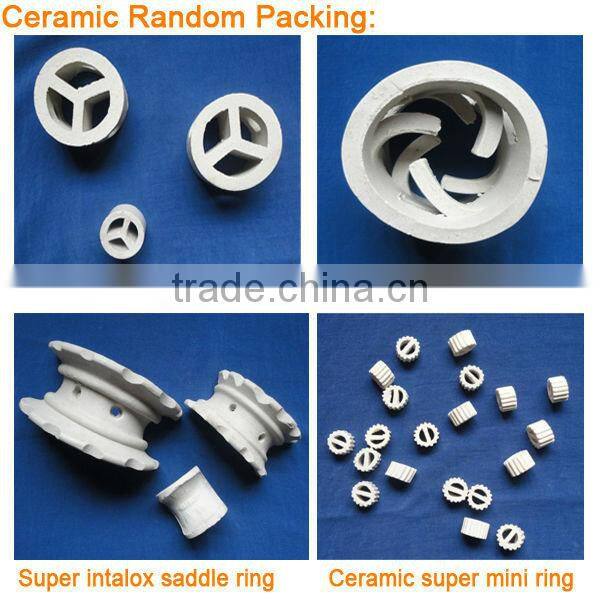

Ceramic random packing:



Ceramic Rasching Ring,ceramic packing ,rolling packing,ceramic rolling ring

Ceramic Rasching Ring,ceramic packing ,rolling packing,ceramic rolling ring

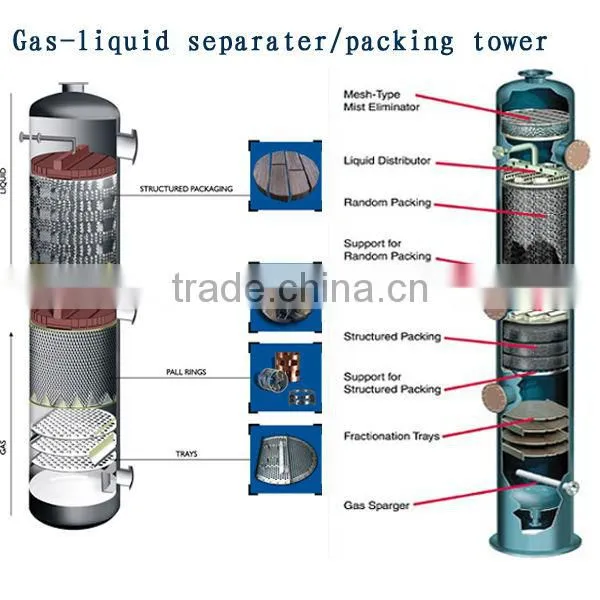

Ceramic rings in tower :



Ceramic Rasching Ring,ceramic packing ,rolling packing,ceramic rolling ring

Certification:



Ceramic Rasching Ring,ceramic packing ,rolling packing,ceramic rolling ring





Welcome to inquiry!
