Home > Products > Ceramic Brick > 92% alumina ceramic brick

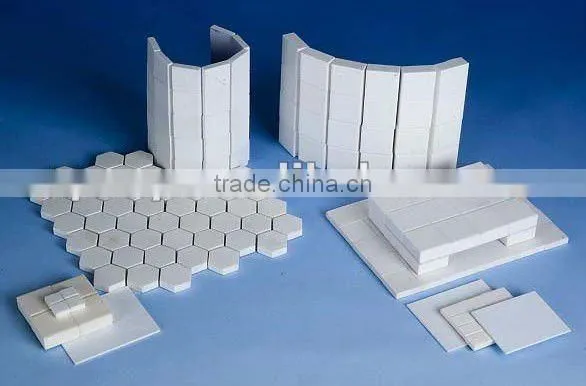

92% alumina ceramic brick
- 2000 Ton / Tons per Month
- shanghai shengzhen or any port you need
- T/T L/C D/P D/A Credit Card
Product Details
Place of Origin: | Jiangxi, China | Type: | Ceramic Plates | Application: | Industrial Ceramic |
Material: | Alumina Ceramic | Model Number: | zy002 | Brand Name: | ZY |
Product Description
Specifications
Resistant high temperature, fast cooling and strong acid corrosion.Performance features and uses:
Ceramic acid resistance brick and plate are widely used in reaction tanks, towers, troughs and ponds in metallurgical and chemical processes as equipment linings. They are the special materials that can resistant high temperature, fast cooling and strong acid corrosion.
Main technical data :
| Item | Unit | Index | Measurement standard |
Volume density | G/cm3 | 2.31-2.4 | ZBG94003-86 | |
Water absorption | % | <0.2 | GB/T8488-2001 | |
Acid resistance | % | ≥99.8 | GB/T8488-2001 | |
Bending strength | Mpa | >42 | GB/T8488-2001 | |
Compression strength | Mpa | >120 | ZBG94003-86 | |
Heat stability | 130°C-20°C | Three times do not crack | GB/T8488-2001 | |
Remarks: Any technological index can be made as user requires..
Chemical composition:
Composition | SiO2 | AI2O3 | K2O | Na2O | CaO | MgO | Fe2O3 | Burning loss | Acid resistance |
Content(%) | 69.8 | 22.5 | 2.7 | 0.95 | 0.82 | 0.12 | 0.49 | 0.54 | 99.8 |
Main specification:
Name | Specification(mm) | Name | Specification(mm) |
Standard brick | 230*113*65 | Anti-acid ceramic plate | 100*100*15 |
Rectangular brick | 230*65*65 | Anti-acid ceramic plate | 150*150*15-30 |
Horizontal wedge brick | 230*113*55/65 | Anti-acid ceramic plate | 150*75*15-30 |
Horizontal wedge brick | 230*113*25/65 | Anti-acid ceramic plate | 100*100*10-30 |
Vertical wedge brick | 230*113*55/65 | Anti-acid ceramic plate | 80*80*10 |
Vertical wedge brick | 230*113*25/65 | Anti-acid ceramic plate | 50*50*10 |
