Specifications
1.High wear-resisting lining. 92%,95% alumina part2.High Moth's hardness>9, High bulk density
3.Low moisture content<0.02%.
Lining Board Application:
Package 1.
Package 2
Ling Board has the character of wear-resisting, impact resistance, construction convenient ,Which is used in the oil, mining, steel mills, power plant etc material conveying equipment exterior wear-resisting materials ideal, prolong the life cycle of equipment.....

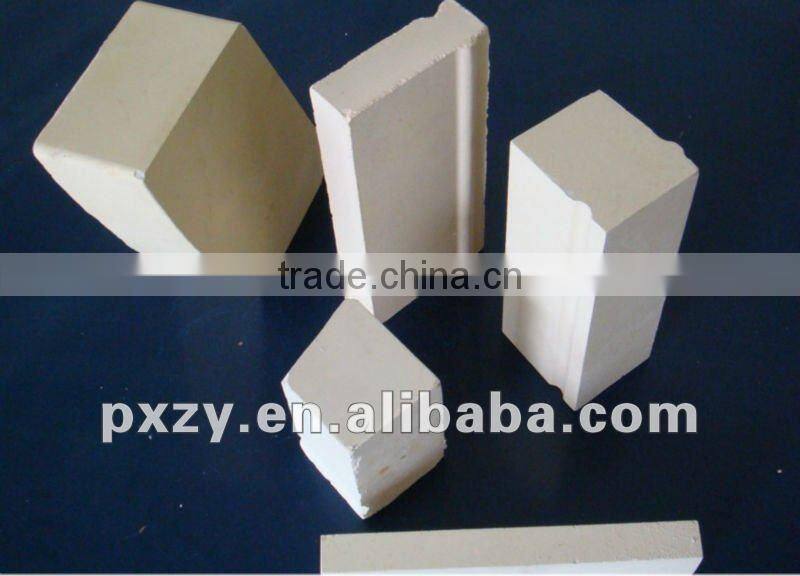

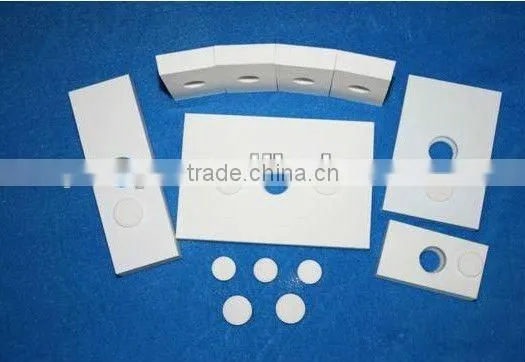

Aluminum wear-resisting lining board, Lining plate product specifications:
Item | Length(L)mm | Width(W)mm | Thickness(H)mm | Remark |
10*10 plate | 10 | 10 | 4/5 |
|
17*17 plate | 17 | 17 | 4/5 |
|
50*50*26.5 | 50 | 50 | 26.5 | Ling Spherical Brick |
120*80*10 | 120 | 80 | 10 | Lining brick with hole |
110*37(34)*12 | 110 | 37(34) | 12 | Lining brick with hole |
130*50(47)*12 | 130 | 50(47) | 12 | Lining plane brick |
150*100*25.4 | 150 | 100 | 25.4 | Lining brick with hole |
150*60*10/12 | 150 | 60 | 10/12 | Lining plane brick |
150*100*25.4 | 150 | 100 | 25.4 | Lining plane brick |
Wear Reistant lining Board Technical Data:
Product Index | 92 Series | 95 Series |
AI2O3 | ≥92 | ≥95 |
Moth’S Hardness | 9 | 9 |
(%)Moisture Content | ≤0.02 | ≤0.02 |
(Mpa)Fracture Toughness | 3.65 | 3.75 |
(Mpa)Bending St rength | 255 | 275 |
(g/cm3)Bulk Density(g/ cm3) | ≥3.60 | ≥3.65 |
For special size ,we also can design for u.
