Specifications
1.acid proof bricks2.High hardness
3.Wear resistance
4.High strength
5.Corrosion resistance
Acid proof brick/tile & Micro porous ceramic filter media
It is made up of many bridge arch opening stomatal with uniform distribution and interconnected. When liquid go through this micro porous tube, suspended material, colloidal particles and organic macromolecules are be intercepted in the surface of filter media.
It has some advantages such as corrosion resistance, high temperature tolerance, high mechanical strength, long life and so on. It is widely used in the industry such as oil, chemical, metallurgical, pyroelectric industries, cement, medicine, papermaking and so on. Especially fit for boiler wastewater filtration.
Acid proof brick Features:
High Hardness
High Density
Low Wear Loss,High strength
Excellent Chemical Corrosion-resistant
Excellent Heat-resistant/high temperature resistant
Anti-impact
Easy Construction
Acid proof brick Application:
Ceramics, mines and other grinding equipment lining
Material thansfer equipment,
Inside and outside surface of powder separating equipment on iron and steel works
Thermal and power plants
Coals and cements industries, etc.
Acid proof brick Technical data:
|
Index |
Numerical value |
Index |
Numerical value |
Capacity(kg/m3) |
1480 |
Flexural strength(mpa) |
5.3 |
|
Aperture(um) |
10-500 |
Antiacid(%) |
98 |
|
Void volume(%) |
30-43 |
Antialkali(%) |
74-82 |
|
Permeable ratio(kg/m2·h) |
15000 |
hardness(Mohs) |
7 |
|
Breathable ratio(nm3/m2·h) |
1.8-5.0 |
Thermal stability(°C) |
200-19 |
|
Comp. strength(mPa) |
14 |
Water absorption(%) |
23.3 |
Specification of Micro porous ceramic filter media board
Specification |
Length |
Width |
Thickness |
WZC-1 |
250 |
250 |
50 |
WZC-2 |
250 |
250 |
60 |
WZC-3 |
300 |
300 |
65 |
WZC-4 |
500 |
500 |
65 |
Specification of Micro porous ceramic filter media tube
Specification |
Outer diameter |
Inner diameter |
Length |
Block head |
Thickness |
Block width |
WCZ-50-1 |
50 |
30 |
500 |
66 |
15 |
8 |
WCZ-50-2 |
75 |
30 |
700 |
88 |
15 |
8 |
WCZ-100 |
100 |
60 |
700 |
120 |
20 |
10 |
WCZ-120 |
150 |
100 |
1000 |
180 |
25 |
15 |
WCZ-200 |
200 |
140 |
1000 |
230 |
30 |
15 |
Heat resistant bricks,, Heat resistant bricks Heat resistant bricks
Acid proof brick

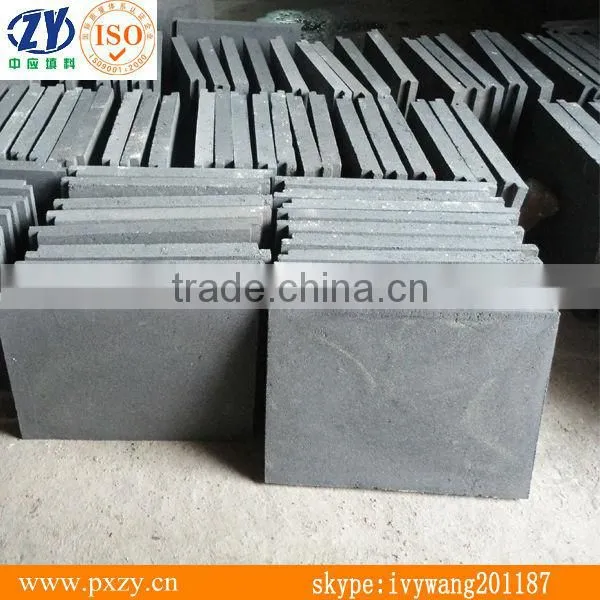

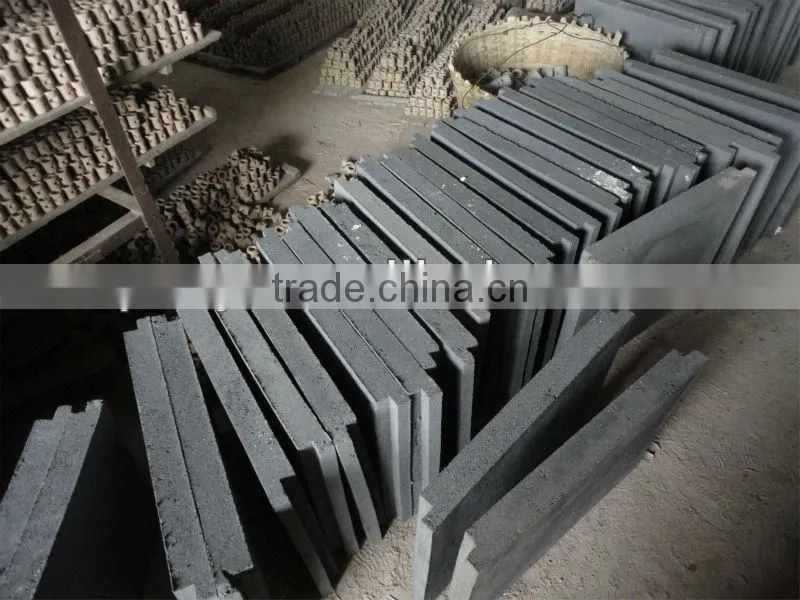

Product pictures:
Package:
Delivery:
Certification:
Welcome to inquiry!
