Specifications
1.Technical ceramic acid brick2.High hardness
3.Wear resistance
4.High strength
5.Corrosion resistance
acid-proof antiseptic bricks and boards is made up of many bridge arch opening stomatal with uniform distribution and interconnected. When liquid go through this micro porous tube, suspended material, colloidal particles and organic macromolecules are be intercepted in the surface of filter media.
It has some advantages such as corrosion resistance, high temperature tolerance, high mechanical strength, long life and so on. It is widely used in the industry such as oil, chemical, metallurgical, pyroelectric industries, cement, medicine, papermaking and so on. Especially fit for boiler wastewater filtration.
Acid brick or acid resistant brick is a specially made form of masonry brick that is chemically resistant and thermally durable. Acid brick is created from high silica shale and fired at higher temperatures than those used for conventional brick. Some manufacturers create the brick by baking it for over a week. It has an average compressive strength of approximately 23,000 PSI..
acid-proof antiseptic bricks and boards Features:
High Hardness
High Density
Low Wear Loss,High strength
Excellent Chemical Corrosion-resistant
Excellent Heat-resistant/high temperature resistant
Anti-impact
Easy Construction
acid-proof antiseptic bricks and boards Application:
Ceramics, mines and other grinding equipment lining
Material thansfer equipment,
Inside and outside surface of powder separating equipment on iron and steel works
Thermal and power plants
Coals and cements industries, etc.
acid-proof antiseptic bricks and boards Technical data:
|
Index |
Numerical value |
Index |
Numerical value |
Capacity(kg/m3) |
1480 |
Flexural strength(mpa) |
5.3 |
|
Aperture(um) |
10-500 |
Antiacid(%) |
98 |
|
Void volume(%) |
30-43 |
Antialkali(%) |
74-82 |
|
Permeable ratio(kg/m2·h) |
15000 |
hardness(Mohs) |
7 |
|
Breathable ratio(nm3/m2·h) |
1.8-5.0 |
Thermal stability(°C) |
200-19 |
|
Comp. strength(mPa) |
14 |
Water absorption(%) |
23.3 |
Specification of acid-proof antiseptic bricks and boards
Specification |
Length |
Width |
Thickness |
WZC-1 |
250 |
250 |
50 |
WZC-2 |
250 |
250 |
60 |
WZC-3 |
300 |
300 |
65 |
WZC-4 |
500 |
500 |
65 |
Specification of acid-proof antiseptic bricks and boards
Specification |
Outer diameter |
Inner diameter |
Length |
Block head |
Thickness |
Block width |
WCZ-50-1 |
50 |
30 |
500 |
66 |
15 |
8 |
WCZ-50-2 |
75 |
30 |
700 |
88 |
15 |
8 |
WCZ-100 |
100 |
60 |
700 |
120 |
20 |
10 |
WCZ-120 |
150 |
100 |
1000 |
180 |
25 |
15 |
WCZ-200 |
200 |
140 |
1000 |
230 |
30 |
15 |

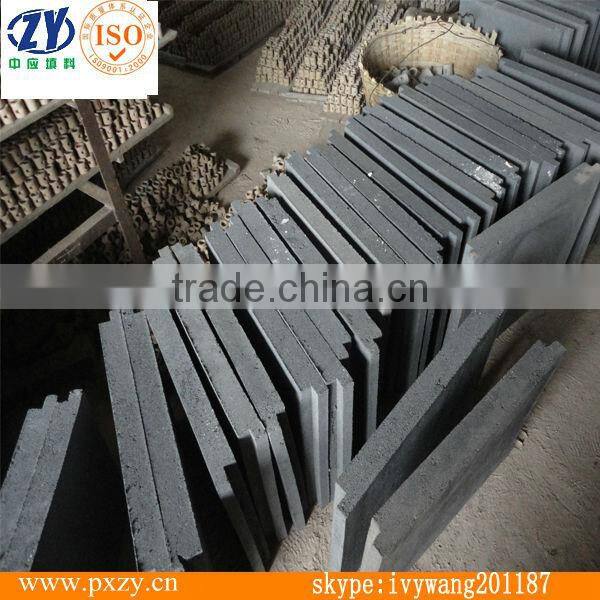

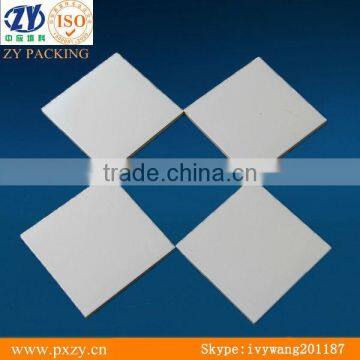

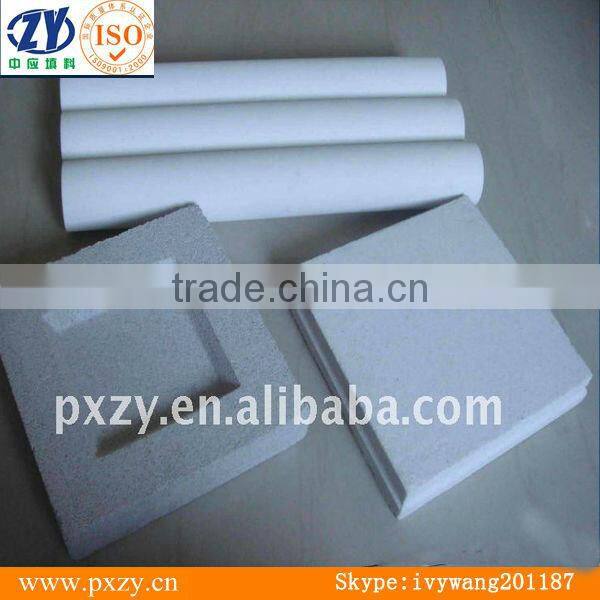

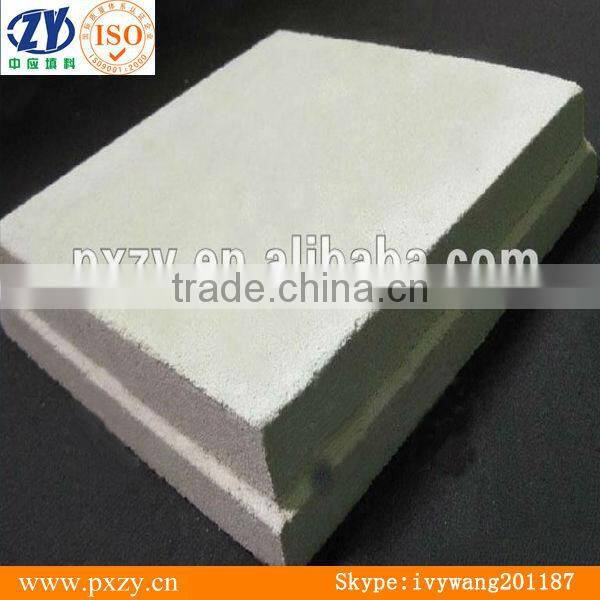

Product pictures:
Certification:
Welcome to inquiry!
