Specifications
1.Anti high acid& alkali parameter,>99.82.Long service life,more than 3 years warrantly
3.Professional manufacture
4.ISO9001

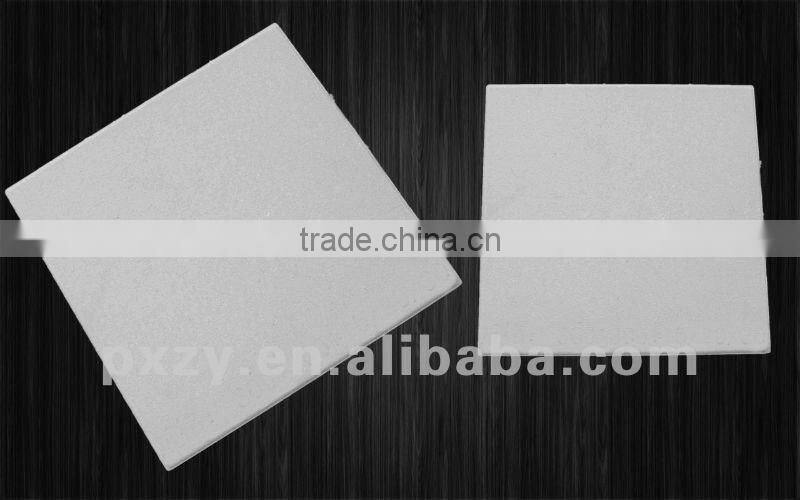

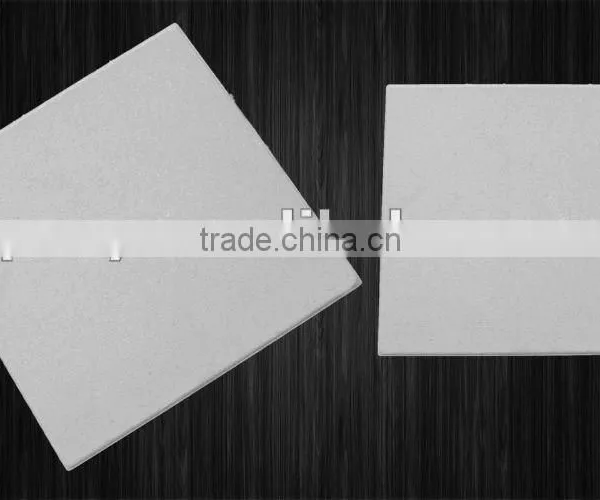

The acid resistant bricks / tiles have very excellent sulphuric acid resistance. They can withstand violent heat and cold, and they are used in kinds of chemical acid conditions as walling , flooring and lining.
Ceramic Acid resistant tile advantage have very excellent acid/alkali resistance, high temperature resistance, and they can withstand violent heat.
Ceramic Acid resistant tile Technical Parameters
Parameters | Unit | Indexes | Test Standard |
Density | g/cm3 | 2.20-2.40 | ASTM |
Porosity Rate (Volume percent) | % | 9.3-10.5 | ASTM |
Water Absorption Rate (Weight percent) | % | 4.2-4.7 | ASTM |
Heat Stability | 950 -20°C | will not be broken within 30 cycles | DIN |
Elasticity Modulus | MPa | 2,138 | DIN |
Compression Strength | MPa | 123 | DIN |
Bending Strength | MPa | ≥ 40 | DIN |
Thermal Conductivity ( 400°C ) | w/m.k | 1.175 | DIN |
Thermal Expansion Coefficient | 1/°C | 3.2 x 10 6 | DIN |
Thermal Expansion Rate ( 1,000°C ) | % | 0.31 | DIN |
Mohs' Hardness Scale | Grade | 6.5 | DIN |
Acid Resistance | % | >99.8 | DIN |
Alkali Resistance | % | >93 |
|
Abrasion | g/cm2 | 0.06 | JC260-80 |
Length Error | % | ≤ ±1 |
|
Bend Error | % | <0.5 |
|
