wood machinery wood chips wood pellet mill

wood machinery wood chips wood pellet mill

Model:XGJ550

Power:75kw

Weight:6040kg

Size:2630*1000*2400mm

Capacity:0.8-1.2ton/h

Main machine:Wood chipper-wood hammer mill-dryer-pellet machine-pellet cooler-screener-packing machine

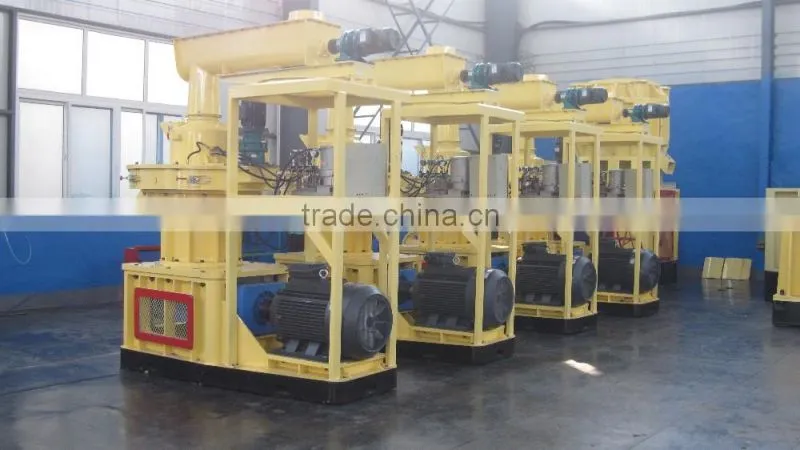

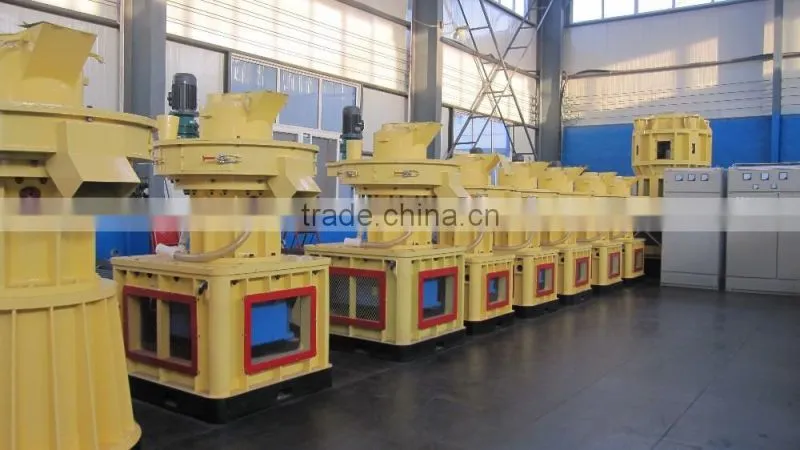

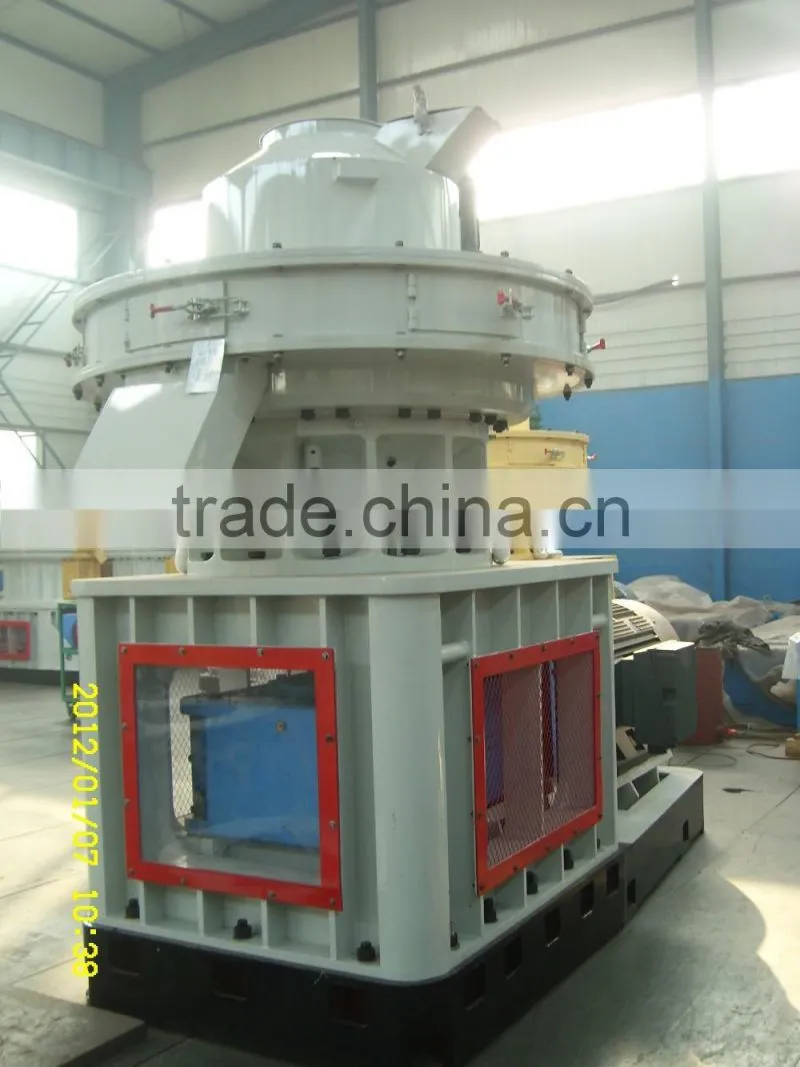

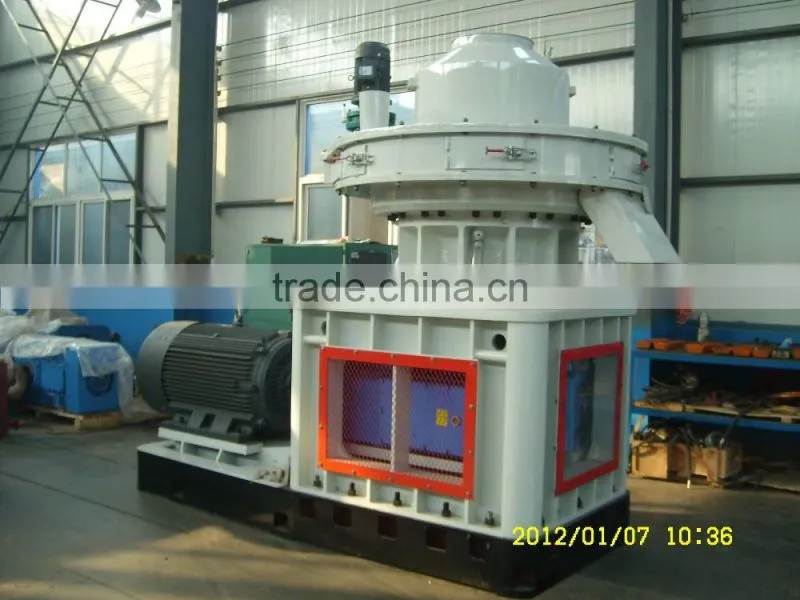

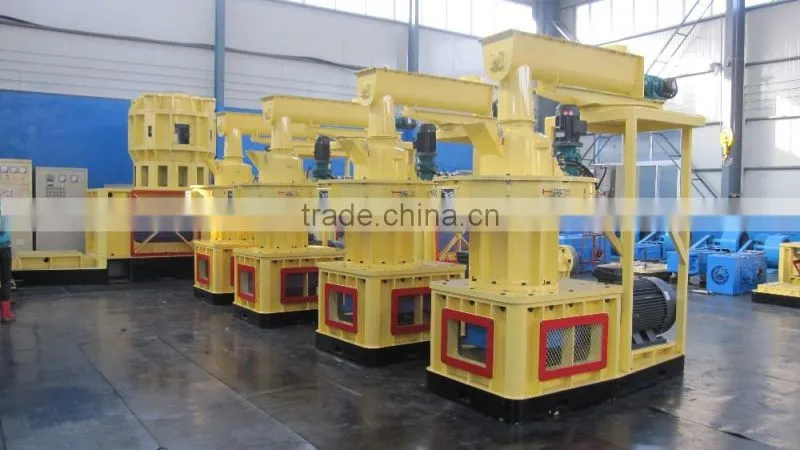

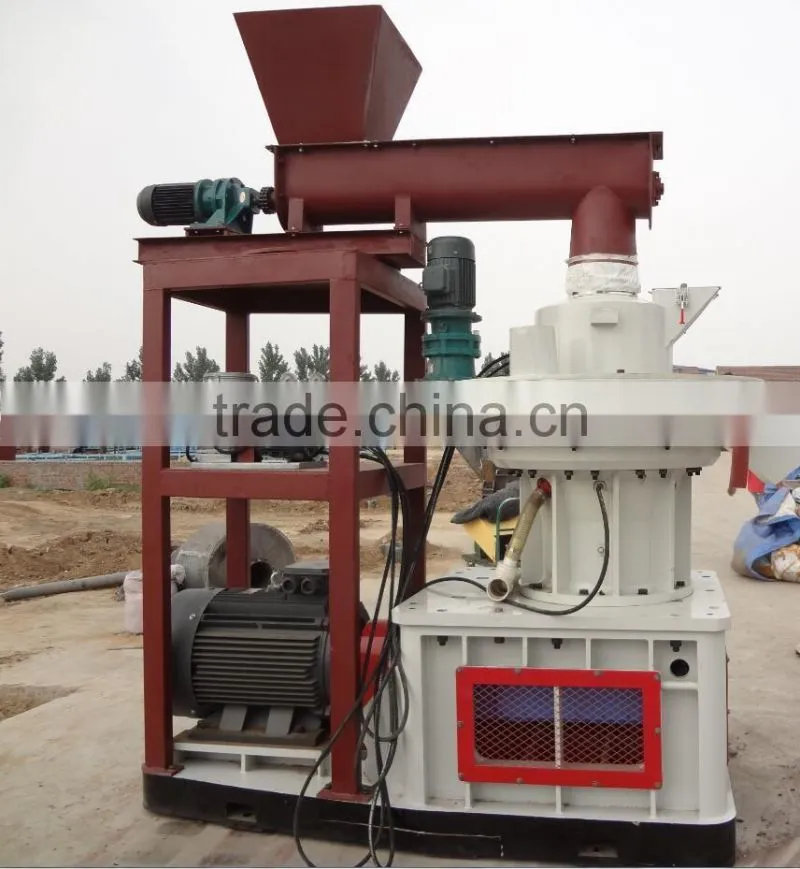

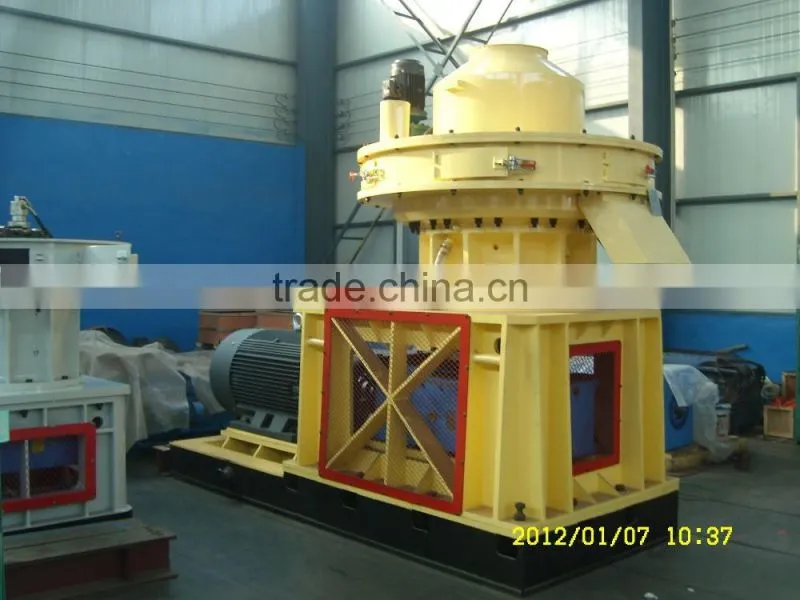

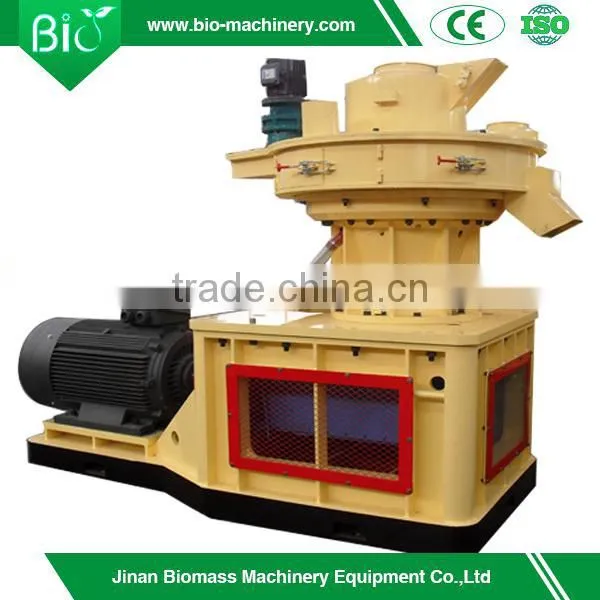

Introduction of wood pellet machine-high effciency centrifugal ring die pellet machine

1. Vertical feeding, directly in place.

2. Die is static, rollers rotary; materials are evenly distributed around, because of centrifugal force.

3. Double-layer die. Two layers both can be used independently so the machine reduces the cost; What’s more,

two layers of the die also can be used at the same time, in this way, the efficiency has been improved greatly, high capacity and save energy.

4. Ring die and vertical structure are good for cooling the pelletizing room.

5. Independent and frequency conversion discharge device can ensure the rate of pellet formation.

Application of raw materials

1.Wood log:First use wood chipper convert wood log to wood chips ,if wood chips moisture >20%,We should add a dryer to dry the wood chip until mositure <15% .

2.Wood chips: Wood chips with moisture >20%,We should add one dryer to dry wood chips until <20%. If Wood chips are dry ,moisture <15%,it can be crushed by hammer mill directly,then it comes out as sawdust ,sawdust can make pellet directly;

3.Sawdust: Moisture >20%,need dry until mositure <15%,if sawdust size <5mm,then make pellet directly..

4.Palm fiber and EFB:Further crushed until size <1mm,dried until moisture <15%.

5.Rice husk :Without hammer mill, when moisture <15% can make pellet directly.

The working video link please copy the link open on a new pagy:

https://youtu.be/Jlc5YGO9XTs

https://youtu.be/Y56ceaAOrfw

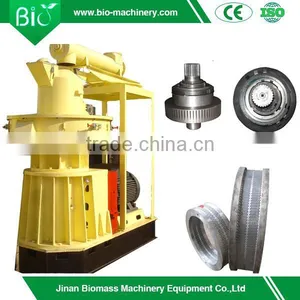

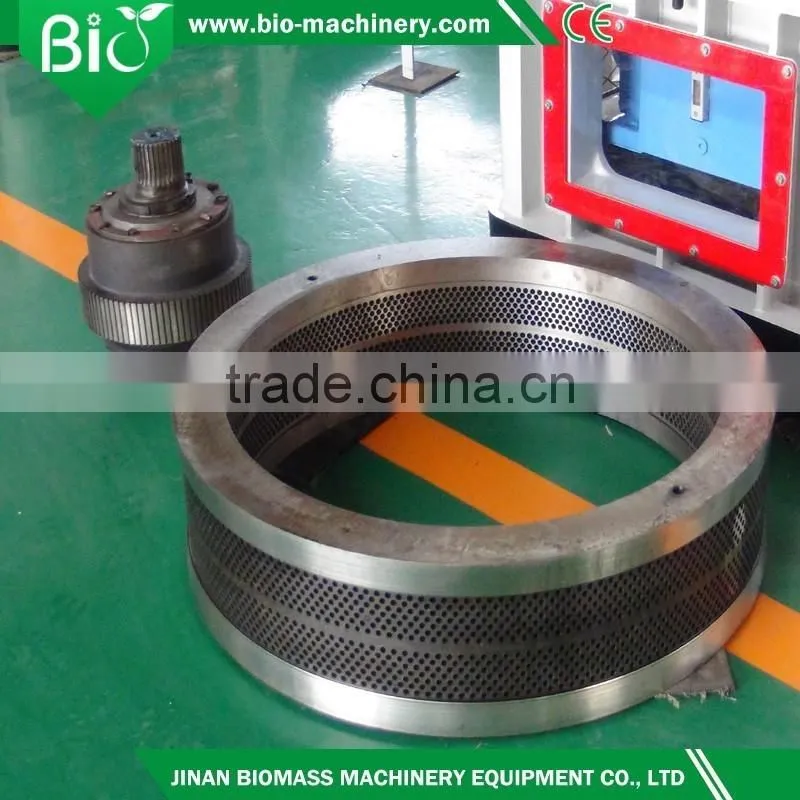

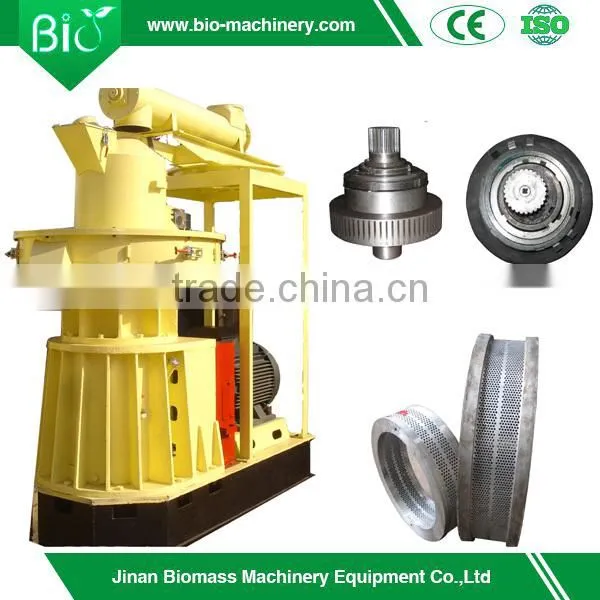

The spare part of main machine-----Rollers and ring die

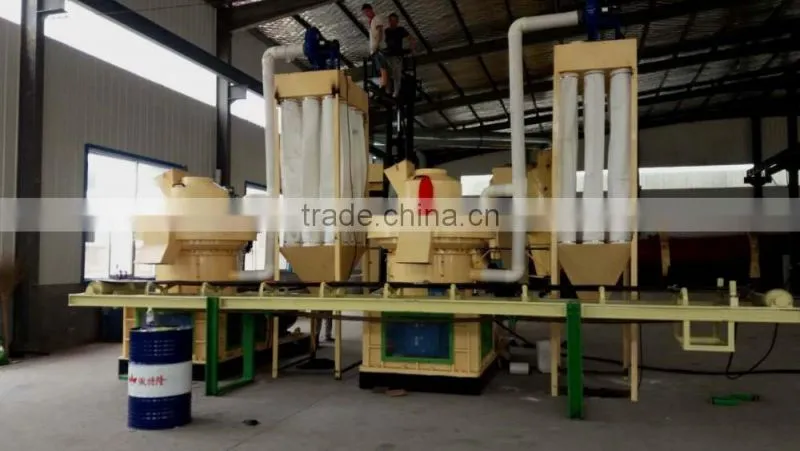

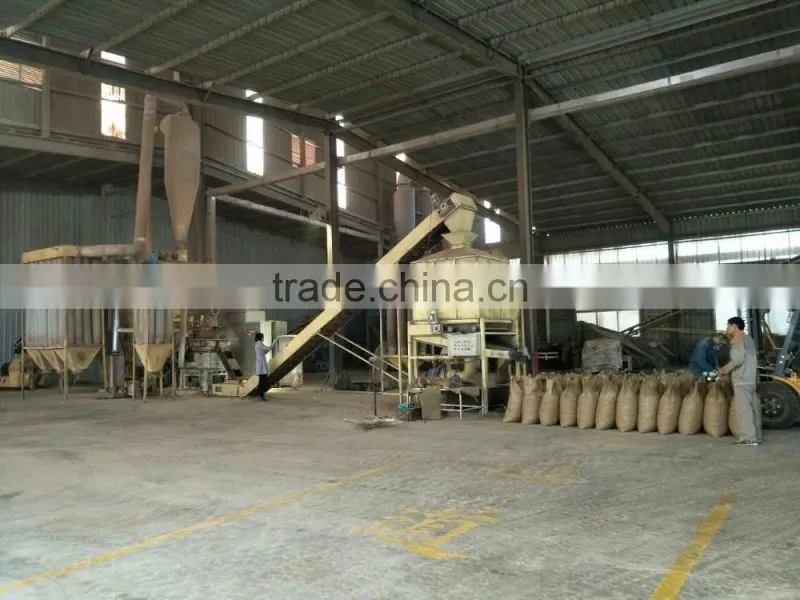

Wood pellet mill complete line ,with hammer mill,pellet mill,.cooling machine ......

Notes:

Our machine normally power is 380v,50hz,3phase,but we can change the power for you.

The machine have one year warranty,and the spare  parts also have long time working life.

If new users,we will teach you one step by one step,send you the details photos and machine working videos,24hours serve you.
