Specifications
1)Rotary dryer complete set contain hot wind stove2)The burn can be gas,mine,biomass wood waste
3)Single,double,three layer

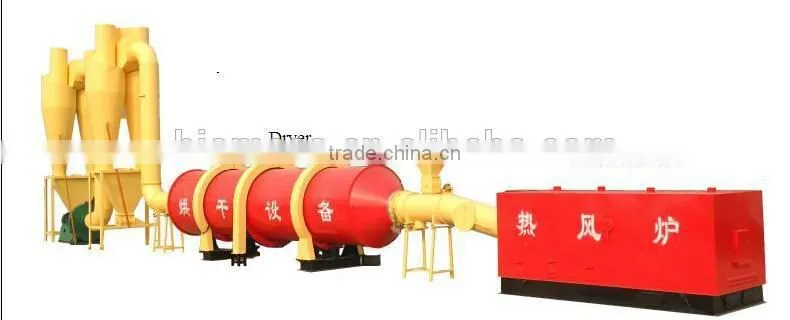

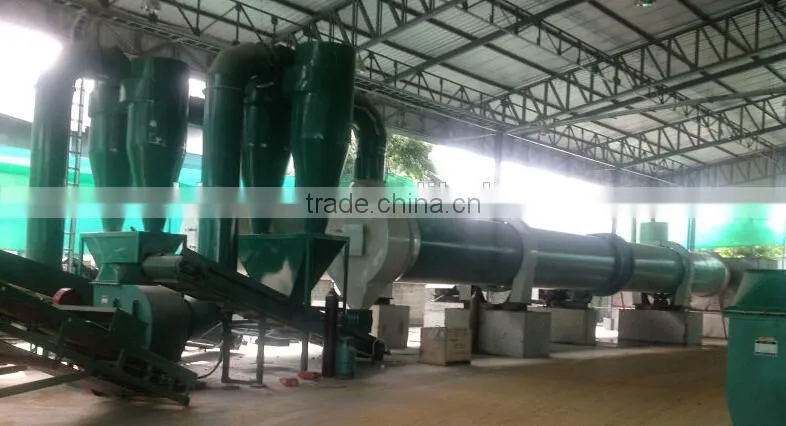

Rotary Dryer
Rotary Drum Dryer supplier.
There are two kinds of Dryer in our factory,one is air-flow dryer,the other is rotary drum dryer,
we will select the most suitable model for you based on your capacity and raw materials moisture.
Rotary Dryer is suitable for drying sawdust, organic material, chemical material and etc.
This type rotary dryer has advantage of high drying capacity, stable working performance, low consumption
and easy operation.
Rotary dryer adopts air inhale device to inhale the hot air from air-heating furnace to the inner
of dryer to complete heating change with wet material.
According to the different character of material,
we use different type lifting plate and Anti-sticking measures. There are multi-angle lifting style lifting plate inside
of dryer; during drying, the lifting plate will raising the material evenly, which can ensure the material complete
heating change with the hot air enough and also ensure the drying efficiency is good
Roatry Dryer also can dry wood chips.grass.if your raw materials are so wet,high moisture,we will install the
rotary dryer before the wood crusher,so that can keep sure the wood crusher working effciency
Model |
Internal diameter mm |
Length mm |
Power KW |
Eveporation T/H |
Weight T |
GHG0.8X10m |
800 |
10000 |
2.2 |
0.07-0.15 |
3 |
GHG1.0X10m |
1000 |
10000 |
3 |
0.1-0.23 |
4.6 |
GHG1.2X10m |
1200 |
10000 |
4 |
0.25-0.35 |
5.6 |
GHG1.4X10m |
1400 |
10000 |
5.5 |
0.25-0.5 |
7.8 |
GHG1.5X10m |
1500 |
10000 |
7.5 |
0.35-0.6 |
18.5 |
GHG1.6X22m |
1600 |
22000 |
11 |
0.8-1.2 |
19.7 |
GHG1.8X22m |
1800 |
22000 |
11 |
0.9-1.5 |
27.8 |
GHG2.0X22m |
2000 |
22000 |
15 |
1-1.8 |
30.9 |
GHG2.2X22m |
2200 |
22000 |
15 |
1.2-2.2 |
34 |
GHG2.4X22m |
2400 |
22000 |
22 |
1.5-2.8 |
37 |
GHG2.5X22m |
2500 |
22000 |
22 |
2-3 |
39 |
GHG2.6X22m |
2600 |
22000 |
30 |
2.5-3.5 |
47 |
GHG2.8X22m |
2800 |
22000 |
30 |
3-4 |
55 |
