Help CenterBlower for Oven Heater Electric FireplaceTangential Fan Shaded Pole Motor
Related Products
-
1000-3000rpm Cross Blower Fan Heater Stove Shaded Pole MotorUS$ 1.5 - 5MOQ: 200 Pieces -
Ventilation Air Heating Coil Tube Air Conditioner PTC Heating ElementUS$ 0.5 - 3MOQ: 100 Pieces
-
Stainless Steel PTC Heating Element PlateUS$ 0.5 - 3MOQ: 100 Pieces
-
Hot Sale Heating Element Motor Fan Heater PartsUS$ 1 - 20MOQ: 200 Pieces
-
Industrial Heating Element Motor With Fan Heater PartsUS$ 1 - 20MOQ: 200 Pieces
Model NO.: JL-563
Speed: Constant Speed
Function: Driving
Number of Poles: 2
Certification: ISO9001
Place of Origin: China (Mainland)

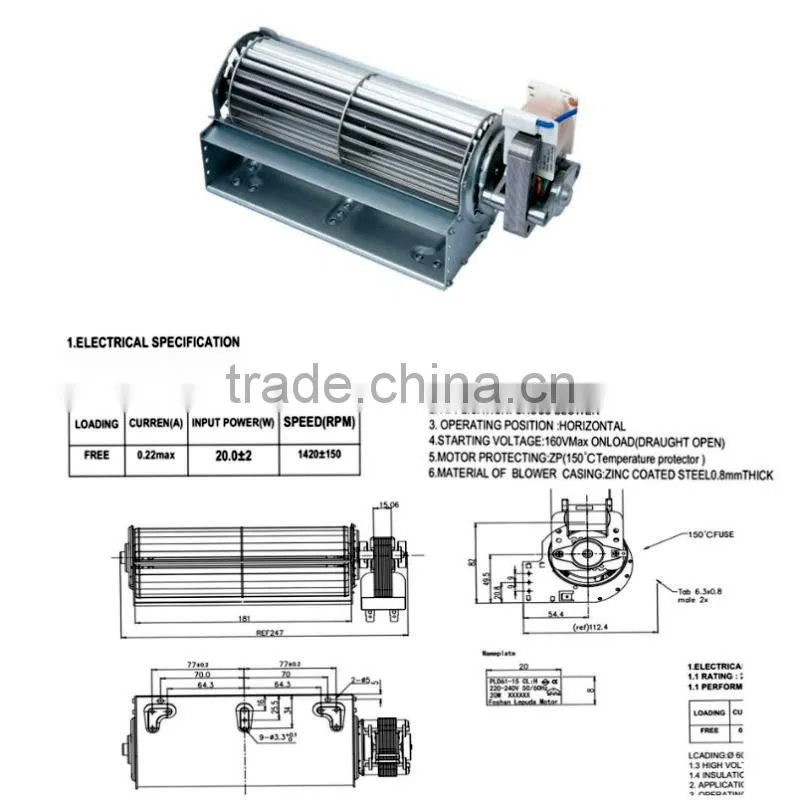

Unloading Current: 0.22A Max
Lcading: 60*180 Blower
Operating Position: Horizontal
Motor Protecting: Zp
Trademark: OEM
Specification: CE, RoHS,3C
HS Code: 8501109990
- Application: Universal
- Number of Stator: Single-Phase
- Casing Protection: Open Type
- Starting Mode: Direct on-line Starting
- Brand: Ritscher
- Scope of Application: Home
- Input Power: 20W
- Insulation Class: H
- Starting Voltage: 160vmax Onloading(Draught Open)
- Material of Blower Casing: Zinc Coated Steel 0.8mm Thick
- Package: Carton
- Origin: China (Mainland)
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used:
Cross blower motors use on commonly Heater, Air cooling Fan etc
Volt(v)=110V-240v
Freq(HZ)=50/60HZ
Current(A)=0.18-0.43 based on different stator thickne
Input power on loading: From 13W to 36W based on different stator thickness
Torque: 60g. Cm to 120g. Cm based on different stator thickness
Shaft diameter(mm)=4-6mm
Shaft length(mm)=according to customer's requirement
Speed(r/min): 2600-3400 based on different stator thickness
Fan Diameter: 60mm
Fan length: Optional from 120mm to 360mm
| MODEL | AOF SIZE | SHAFE DIA | VOLT | INPUT POWER | TORQUE (g.cm) |
SPEED RATED |
|
YJ6012 |
12mm |
4mm |
110-240V |
18W |
120 |
3000RPM |
|
YJ6014 |
14mm |
4.5mm |
110-240V |
25W |
150 |
3000RPM |
|
YJ6016 |
16mm |
4.5mm |
110-240V |
30W |
180 |
3000RPM |
|
YJ6020 |
20mm |
5mm |
110-240V |
35W |
260 |
3000RPM |
|
YJ6025 |
25mm |
6mm |
110-240V |
45W |
350 |
3000RPM |
|
YJ6030 |
30mm |
6mm |
110-240V |
53W |
380 |
3000RPM |
why not choose us?
1.we can provide you with different types of products for your selection.
2.MOQ:1000pcs,mixed order acceptable.
3. Free samples available for your test.
4.Various operating force ,height and colour for one product for your choice.
5.Safety, on-time delivery, unique design, competitive price,creditable suppliers.
6.OEM and ODM professional design.
Lianyungang Jialei International trade Co. Ltd
Company Overview
Lianyungang Jialei International Trade is a comprehensive company integrated in the production and export of infrared heaters, heating elements and quartz products. our companies focus our innovations on energy efficiency and resource conservation. Our product range covers:
- Infrared carbon heaters
- Quartz products such as tubes, plates, rods and silicaware
- Heating lamps such as carbon fiber, halogen and metal
- Heating elements such as ceramic and quartz
- All kinds of salts such as sodium chloride, sodium hydrosulfite and calcium carbide
Compliant with International Standardsc
Each year we can turn out up to 500,000 heaters, 500 tons of quartz tubes and 5 million heating lamps. For your assurance, our three factories are ISO 9001:2008-certified and our products have CE, RoHS and REACH marks.
Worldwide Sales Market Coverage
Due to our high quality, steady performance and good after-sales service, 80 percent of our products are exported to Europe, the US and Southeast Asia.
If you have any requirement or question, please feel free to contact with us.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample to test, may charge small fee.
Q: What is your terms of payment ?
A: T/T in advance
B: Paypal for sample fee
