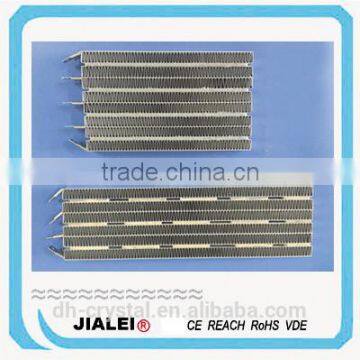

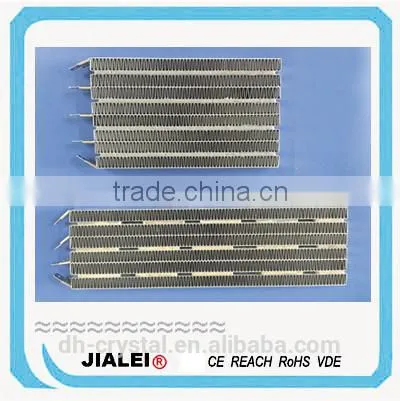

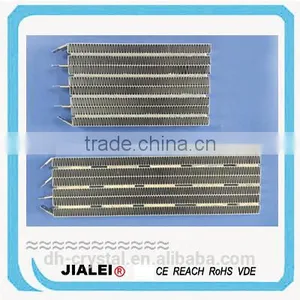

Help CenterVentilation Air Heating Coil Tube Air Conditioner PTC Heating Element
Related Products
-
Stainless Steel PTC Heating Element PlateUS$ 0.5 - 3MOQ: 100 Pieces -
Hot Sale Heating Element Motor Fan Heater PartsUS$ 1 - 20MOQ: 200 Pieces
-
Industrial Heating Element Motor With Fan Heater PartsUS$ 1 - 20MOQ: 200 Pieces
-
Motor With Fan Heater PartsUS$ 1 - 20MOQ: 200 Pieces
-
Professional Manufacturer Kettle Heating ElementUS$ 0.5 - 1MOQ: 200 Pieces
Quick Details
| Condition: | Power Source: | Place of Origin: | |||
| Brand Name: | Model Number: | Dimension(L*W*H): | |||
| Weight: | Voltage: | Power(W): | |||
| Certification: | Warranty: |
Electric Cartridge Heater
Material:SS304;SS316,SS321,NICOLOY800 etc
Insulation Material:High-purity Mgo
Reisistance wire element:Ni-Cr or FeCr
Lead Connection Option: Crimped or Swaged leads
Lead and type of connection leads, 10" Fiberglass Standard(Wire options:Teflon,silicone high temperature frberglass)
Commom cartridge can be devideded :
1) High power density (heat area sufuce power 10~25w/cm2)
Working temperature≤450 degrees.
2) middle,low power density (heat area sufuce power 5~11/cm2)
working temperature≤ 300 degrees
Votage:12~250V (or as requirment)
High Density Construction:
High-quality stainless steel construction provides long-lasting protection even in the most rugged industrial environments
Protected with a stainless steel sheath, their watt density can reach 50 W/cm2 and their operating temperature can go up to 800°C
Product Features:
The main characteristic are safety performance and constant temperature. PTC heating is a new kind heater in the market .It is fixied by a pair of metal electrodes with leads on both sides of PTC element.Ours copper imported from Japan. Harnesses are made of Teflon materials weaving wire, terminals installed firmly, to ensure that the wiring harness in good condition .
Technical Detail:
Operating temperature range ºC : 50 ~ 300
Rated voltage: 1 ~ 600v
Surface temperature ºC: 45 ~ 300
Surface temperature toleranceºC: ±5
Normal temperature resistance: Ω0.5~9000
Workig lifespan: 50,000hrs
product advantages:
1.PTC heater cost savings, long life.
2.PTC heater safety, environmental protection.
Design of the heating temperature of the heater body at 260 degrees Celsius, under any circumstances use will not produce "red", "burning" phenomenon, which cause burns, fire and other safety hazards.
3.PTC ceramic heaters save energy.
ptc heater and conventional heaters in the case of the same power, their power consumption is the same, but because of ptc electric energy into heat energy efficient than traditional heaters, the heat generated by the more, whereas in the production of heat under the same circumstances, the conventional heater energy consumption to be more than the power consumed by the PTC heater, PTC ceramic heater is saving energy.
4. When the power stable, it will give out the constant temperature continuous
Keep steady power
It can control the temperature by itself
Used in large range of voltage from 12V to 380V
Dimension is nimble various
Applications:
PTCheating element are widely used for air conditioning, air curtain, ptc heaters, dryers, hand dryer, drying room equipment, large industrial air duct heating, electric locomotives warm, heating control cabinet, moisture, and other fields.
why not choose us?
1.we can provide you with different types of products for your selection.
2.MOQ:1000pcs,mixed order acceptable.
3. Free samples available for your test.
4.Various operating force ,height and colour for one product for your choice.
5.Safety, on-time delivery, unique design, competitive price,creditable suppliers.
6.OEM and ODM professional design.
Lianyungang Jialei International trade Co. Ltd
Company Overview
Lianyungang Jialei International Trade is a comprehensive company integrated in the production and export of infrared heaters, heating elements and quartz products. our companies focus our innovations on energy efficiency and resource conservation. Our product range covers:
- Infrared carbon heaters
- Quartz products such as tubes, plates, rods and silicaware
- Heating lamps such as carbon fiber, halogen and metal
- Heating elements such as ceramic and quartz
- All kinds of salts such as sodium chloride, sodium hydrosulfite and calcium carbide
Compliant with International Standardsc
Each year we can turn out up to 500,000 heaters, 500 tons of quartz tubes and 5 million heating lamps. For your assurance, our three factories are ISO 9001:2008-certified and our products have CE, RoHS and REACH marks.
Worldwide Sales Market Coverage
Due to our high quality, steady performance and good after-sales service, 80 percent of our products are exported to Europe, the US and Southeast Asia.
If you have any requirement or question, please feel free to contact with us.
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample to test, may charge small fee.
Q: What is your terms of payment ?
A: T/T in advance
B: Paypal for sample fee
