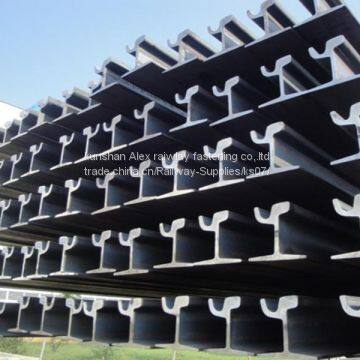

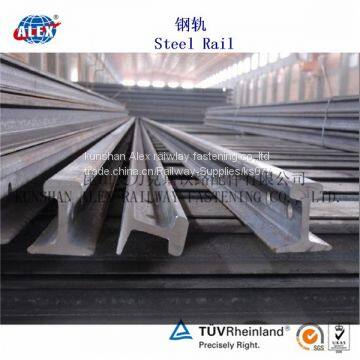

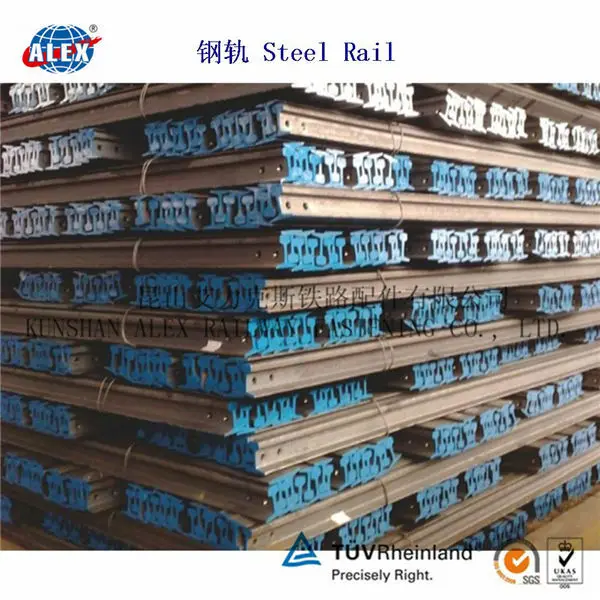

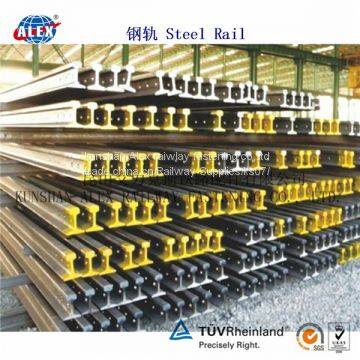

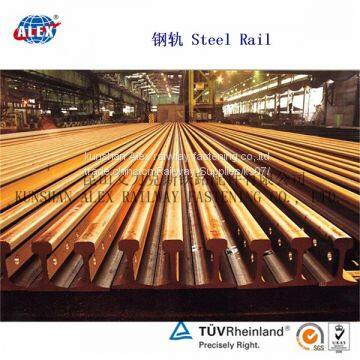

Help CenterHigh Quality BS11:1985 Standard Steel Rail
Related Products
-
Dog Spike/ Rail Dog Spike/ Railway Dog SpikeUS$ 0.1 - 1.02MOQ: 5000 Pieces -
Spring Washer/ Spring Coil Washer/ Single Spring WasherUS$ 0.12 - 0.15MOQ: 5000 Pieces
-
Single Washer/ Single Coil Washer/ Single Coil Spring WasherUS$ 0.12 - 0.15MOQ: 5000 Pieces
-
Double Washer/ Double Coil Washer/ Double Coil Spring WasherUS$ 0.12 - 0.25MOQ: 5000 Pieces
-
Double Spring Washer/ Double Coil Spring Washer/ Spring WasherUS$ 0.12 - 0.25MOQ: 5000 Pieces
Product Description
| Specifications of Railway Rail S49 | |||||
| SIZE | DIMENSION (mm) | WEIGHT (kg/m) | |||
| A | B | C | t | ||
| ASCE 25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 |
| ASCE 30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 |
| ASCE 40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 |
| ASCE 60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 |
| ASCE 75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 |
| ASCE 85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 |
| 90RA | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 |
| 115RE | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 |
| 136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 |
| 175LBS | 109.86 | 152.4 | 152.4 | 38.1 | 86.8 |
Product Description
Packaging & Shipping
We manufactures Rail E Clip and Clamp, High Tensile Bolt with Nut and Washer, Rail Base(Tie) Plate, Rail Fish Plate, Rail Shoulder, Rail Screw and Spike, Fish Bolt with Nut and Washer, Rail Dowel, Rubber and EVA Pad, Crane Rail and Light Rail, Wooden Sleeper, Auto Bolt and Other spare parts.
Company Information
Kunshan Alex Railway Fastening Co., Ltd manufactures railway fasteners and standard components. As a leading railway fasteners manufacturers in China,with production license of Chinese railway Ministry, advanced technology, high precision inspection instruments and service, our products have been widely exported the USA, Germany, Spain, Japan, Australia, Italy, Netherlands, Belgium, Poland, the UK, India, and South Africa etc.
We can provide products according to customers drawings and samples.Our main products are as following:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ Pandrol clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
