food grade liquid silicone rubber for making mould
Keyword: Food grade liquid silicone, food liquid silicone, liquid silicone rubber for mold making
1. Description of food grade liquid silicone rubber for making mould
Addition-curing, Food grade, Translucent, Two-component mold making silicone.
2. Characteristics of food grade liquid silicone rubber for making mould
Acceptable for food contact
Outstanding release properties
Low viscosity
Easy mixing and degassing
High flowability
Odorless and Nontoxic
Enhanced durability
3. Application of food grade liquid silicone rubber for making mould
Food Grade Related Applications
Cake mold
Chocolate moldmaking
Candy moldmaking
Baking moldmaking
Ice trays molding
Casting butters
Casting for Kitchen products
4. Datesheet of food grade liquid silicone rubber for making mould
Item No. | Appearance | Hardness (shore A) | Viscosity (CPS) | Tensile-strength | Tear-strength (kgf /cm2 ) | Elongation-break(%) | Mixing ratio | operation time (25 ℃ ) | Curing time | Shrinkage (%) |
SP-805 | translucent | 5 | 3000±1000 | 30±5 | 8±2 | 550±50 | 1:1/10:1 | 20-30 | 2-3 | 25 |
SP-810 | translucent | 10 | 4000±1000 | 30±10 | 12±2 | 550±50 | 1:1/10:1 | 20-30 | 2-3 | 25 |
SP-815 | translucent | 15 | 4000±1000 | 35±10 | 14±2 | 550±50 | 1:1/10:1 | 20-30 | 2-3 | 25 |
SP-820 | translucent | 20 | 5000±1000 | 40±10 | 20±2 | 500±50 | 1:1/10:1 | 20-30 | 2-3 | 25 |
SP-825 | translucent | 25 | 6000±1000 | 45±10 | 22±2 | 500±50 | 1:1/10:1 | 20-30 | 2-3 | 25 |
SP-830 | translucent | 30 | 7000±1000 | 50±10 | 24±2 | 450±50 | 1:1/10:1 | 20-30 | 2-3 | 25 |
5. Using instructions of food grade liquid silicone rubber for making mould
Step 1: Prepare and clean the prototype.
You must make sure your original molds perfect, fix the original mold on a board, then using some assistant material (like cardboard) to make a frame for to surround the prototype. The frame is no need, if we make the mold by brushing way.
Step 2: Take the silicone and catalyst as the ratio 100:2 (silicone : catalyst= 100:2), mix the silicone rubber and catalyst evenly.
Notes: rtv silicone rubber is a kind of flowing liquid and it contains two parts. Part A is a kind of flowing liquid and part B is the curing agent. Remember to mix part A and part B evenly, otherwise the silicone rubber will be partly solidified and this will bring troubles for your final operation. What's more, the finishes molds will have a short life. All of these will cause a waste of silicone rubber.
Step 3: Vacuum pumping.
After mixed the silicone evenly, it is better to release the bubble by vacuum pumping.

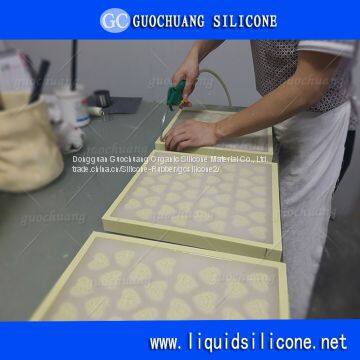

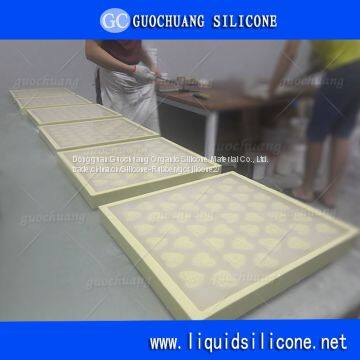

Step 4: Pouring cast or brushing cast.
After released the bubble, we can pour/brush the silicone rubber on the prototype.
Notes: Please finishes all the steps within the operation time. If not, it will cause cross linking reaction, and no more further steps will be available. So, we have to pay attention to the pot life and curing time.
How to make mould
Video of how to make molds with our liquid silicone rubber:
/watch?v=7Vjm2ygijnk
/watch?v=QZGeZpjNccw
/watch?v=P0mBMS0pmWM
Certifications
Packaging & Shipping
Packing:
20KG/drum vacuum packing for part A + 20KG/drum vacuum packing for part B
25KG/drum vacuum packing for part A + 25KG/drum vacuum packing for part B
200KG/drum packing for part A +200KG/drum packing for part B
Our Services
what can we provide?
1.Free sample of 1kg for testing by UPS.
2.Various range of export trading forms: FOB,CFR,CIF,DDU.
3.Goods delivery by air or by sea.CFR price shipped by our forwarder could be even more economical than FOB price.
4.Professional own forwarder is more experienced at custom clearance issue and more guaranteed about safety shippment and delivery time.
5.To help you reduce the customs clearance fees, we can offer all kinds of Certificate of Origin related to different countries including CO, FORMA,FORME,FORMF,etc.
Any inquiry, feel free to contact Mr. Allen:
Email:allen(at)gcsilicone(dot)net
skype:47f0f6f1c295b04e
Mobile:86-18038384650
Tel:86-0769-88020535
