HDPE/PP uniaxial geogrid for road reinforcement made in China
- 80000 Square Meter / Square Meters per Month
- Qingdao
- T/T
- TGGS75-400HDPE Plastic Geogrid Room Large Government Project River Maintenance and Reinforcement
- TGGS75-400HDPE Plastic Geogrid Room Large Government Project Parking Lot Roadbed Reinforcement
- TGGS75-400HDPE Plastic Geogrid Room Large Government Project Roadbed Laying and Reinforcement
- 1500g plastic geotextile mat mesh interwoven drainage board
- TGGS75-400 geocell perforated honeycomb geocell hybrid retaining wall
- TGGS100-400 perforated honeycomb geogrid mixed retaining wall for stabilizing highway subgrade
Product Details
Place of Origin: | Shandong, China | Brand Name: | SK | Model Number: | TGDG |
Material: | Plastic |
Product Description

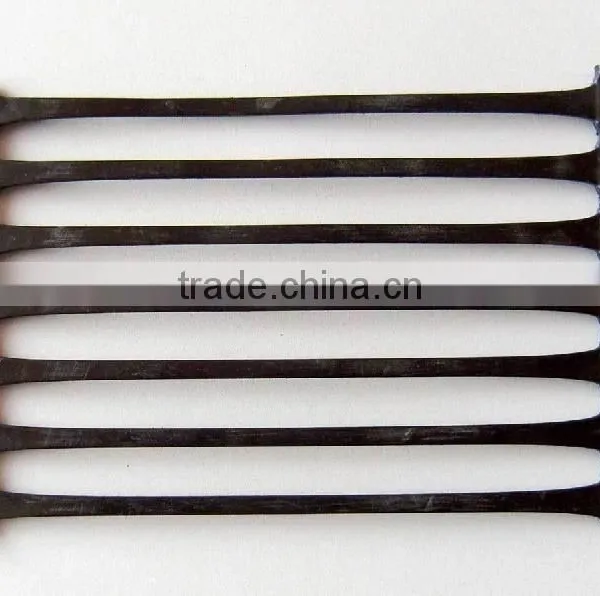

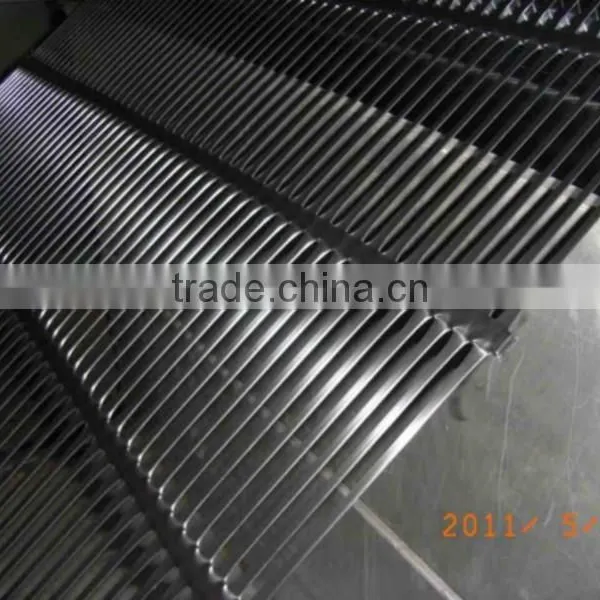

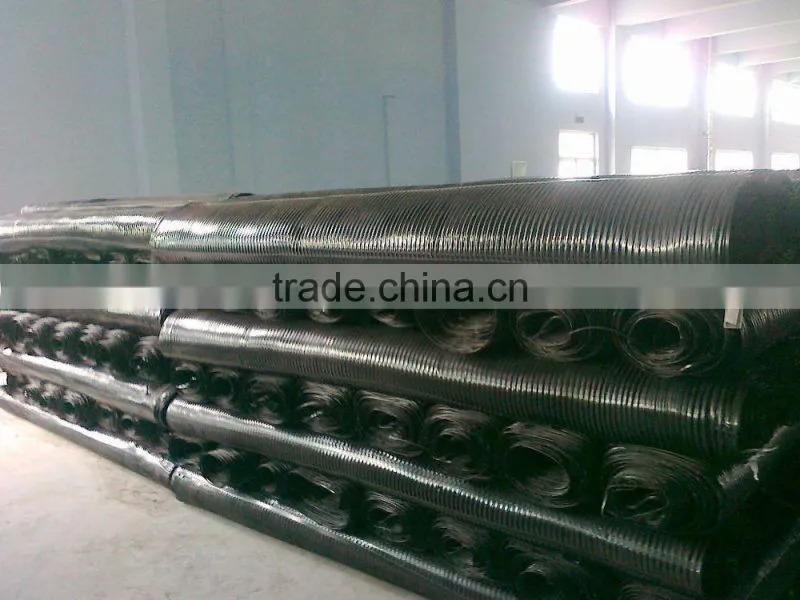

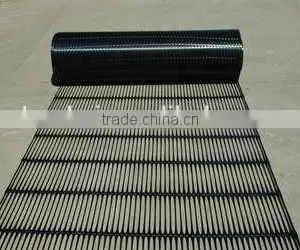

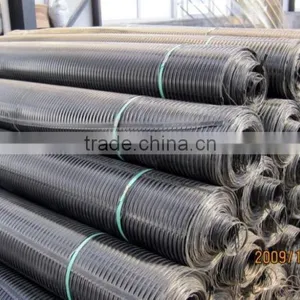

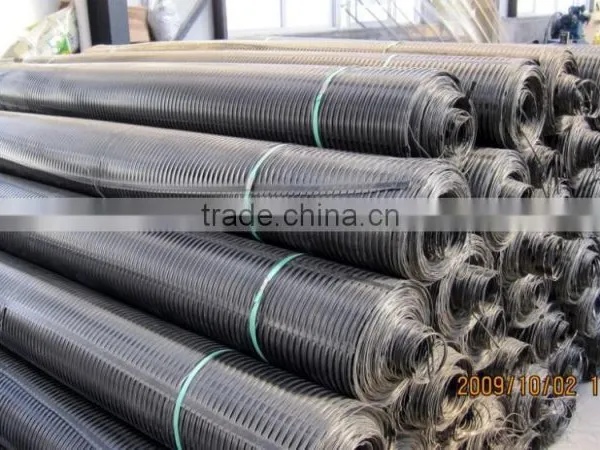

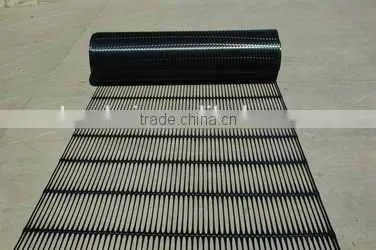

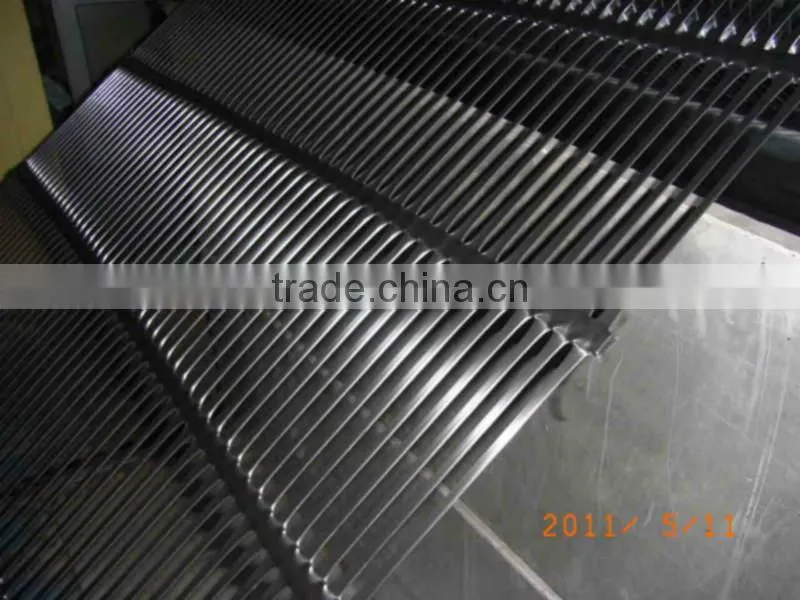

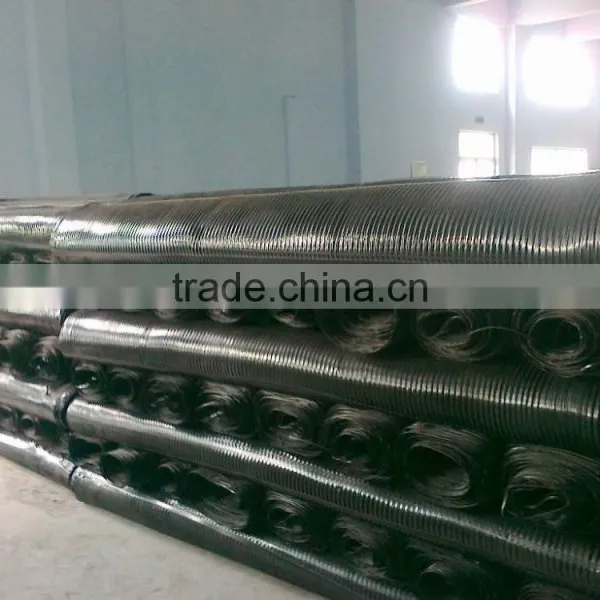

HDPE/PP uniaxial geogrid for road reinforcement made in China
Port:Qingdao
CE certificate
We have rich experience in this field.Now we have HDPE Uniaxial geogrids,PP Uniaxial geogrids and PP Biaxial Geogrid
Uniaxial geogridis made of high molecular polymer after extruded and laminated and punched into regular mesh before longitudinal stretching. This process makes high molecule in direct line state in oblong oval net structure with uniform distribution and high node intensity. This structure has rather high tensile strength and stretch modulus, especially our products of this kind have superior world class tensile strength and stretch modulus with extensibility between 2% and 5%The soil offers ideal force carrying and diffusing chain system. It has large tensile strength (>150Mpa), and is suitable for different kinds of soil. It is a prevailing reinforcement material.
Application:
Uniaxial geogrid is kind of high strength geosynthetic. It has extensive applications in dyke, tunnel, pier, highway, railway and building.
Its main applications are as follows:
1. Enhance roadbed and effectively diffuse its load to improve its stability and bearing capacity and increase service life;
2. Can bear more alternate load;
3. Prevent roadbed distortion and crack caused by the loss of roadbed materials;
4. Increase the self-supporting property of fill behind retaining wall, decrease the earth pressure of retaining wall, save cost, increase service life and reduce maintenance expense;
5. Combine anchor sprouting concrete construction method to give side slope maintenance, which not only saves investment by 30%-50% but also reduces erection time by one time or above.
6. To increase geogrid in the roadbed and surface of highways can reduce flexure, track and put off the flawing appearance by 3-9 folds and reduce the thickness of structural layer by 36%
7. It is applicable to any kind of soil, not necessary to draw material from other place, saving time and labor;
8. Simple and rapid construction will greatly reduce construction cost.
Product specification and performance parameter :
Items | TGDG25 | TGDG35 | TGDG50 | TGDG80 | TGDG110 | TGDG150 | TGDG170 | TGDG200 |
Width, m | 1.0 2.0 2.5 | |||||||
Tensile yield force per linear meter,KN/m≥ | 25 | 35 | 50 | 80 | 110 | 150 | 170 | 200 |
Elongation at yield,%≤ | 10 | |||||||
Stretching force for 2% extensibility ,KN/m≥ | 7 | 10 | 12 | 20 | 32 | 48 | 64 | 85 |
Stretching force for 2% extensibility,KN/m≥ | 14 | 20 | 28 | 48 | 64 | 90 | 120 | 145 |
PP Biaxial Plastic Geogrid Specification and Main Technical Data
Item | TGSG15-15 | TGSG20-20 | TGSG25-25 | TGSG30-30 | TGSG40-40 |
Longitudinal Tensile Strength,kN/m | 15 | 20 | 25 | 30 | 40 |
Transverse Tensile Strength,kN/m | 15 | 20 | 25 | 30 | 40 |
Longitudinal Yield Elongation,% | 15 | ||||
TransverseYield Elongation,% | 13 | ||||
Longitudinal Yield Strength at 2% Elongation,kN/m | 5 | 7 | 9 | 10.5 | 14 |
Transverse Yield Strength at 2% Elongation,kN/m | 5 | 7 | 9 | 10.5 | 14 |
Longitudinal Yield Strength at 5% Elongation,kN/m | 7 | 14 | 17 | 21 | 28 |
Transverse Yield Strength at 5% Elongation,kN/m | 7 | 14 | 17 | 21 | 28 |
Product Length/roll,m | 50 | 30 | |||
Product width ,m | 2/3.9/3.95 |
PP Uniaxial Geogrid Specification and Main Technical Data
Item | TGDG50 | TGDG80 | TGDG110 | TGDG150 | TGDG200 |
material | PP | ||||
Tensile Stength,KN/m | 50 | 80 | 110 | 150 | 200 |
Elongation Ratio ,%≤ | 10 | ||||
Tensile Strength at 2% elongation KN/m≥ | 12.0 | 26.0 | 32.0 | 50.0 | 70.0 |
Tensile Strength at 5% elongation KN/m≥ | 28.0 | 48.0 | 64.0 | 88.0 | 120.0 |
Product Length/roll,m | 100 | 50 | |||
Product Width ,mm | 2000~3000 | 2000~2500 |
HDPE Uniaxial Geogrid Specification and Main Technical Data
Item | TGDG50 | TGDG80 | TGDG110 | TGDG120 | TGDG160 |
Raw material | HDPE | HDPE | HDPE | HDPE | HDPE |
Carbon Content(%)≥ | 2 | 2 | 2 | 2 | 2 |
Tensile Strength(KN/M)≥ | 50 | 80 | 110 | 120 | 160 |
Yield Strength at 2% elongation(KN/m) | 10 | 23 | 30 | 35 | 44 |
Yield Strength at 5% elongation(KN/M) | 25 | 44 | 60 | 65 | 85 |
Yield elongation ratio(%)≤ | 12 | 12 | 12 | 12 | 12 |
Length m | 50 | ||||
Width mm | 1000~1200 |
Contact Us
- Linyi Shunkai International Trade Co., Ltd.
- Contact nameEric Zhang
- Phone0086-539-8168106
- AddressNo.313 Tongda Road, Linyi City, Shandong Province, China. Linyi,Shandong
- TGGS150-400 perforated honeycomb geogrid mixed retaining wall for stabilizing railway subgrade
- Polymer geogrid chamber TGGS100-400 hybrid retaining wall honeycomb geogrid chamber
- Geogrid TGGS200-400 drilling honeycomb cell to stabilize railway subgrade
- Polyester Geogrid 30KNX20KN
- Polyester Geogrid
- Geotubes for sale
- High Strength Woven PP Geotube Erosion Protection Sand Bags
- plastic steel geogrid
- Fiber glass geogrid fiberglass

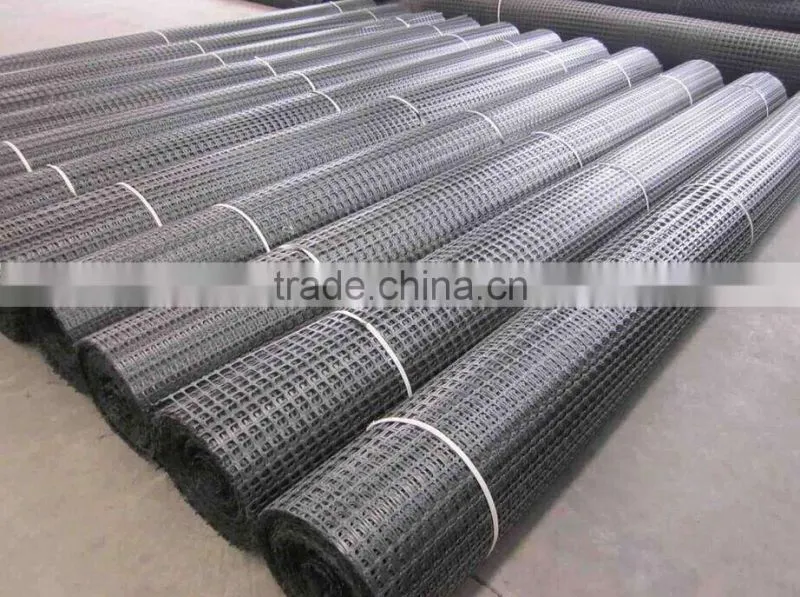

- Plastic PP Biaxial geogrid
