Polypropylene Geogrid BX1100 1200

FOB Price

USD $0.1 - $1.39 / Square Meter

1 Square Meter(Min.Order)

Supply Ability 0 per Month
Port Qingdoa
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Shandong, China	Brand Name:	sk	Model Number:	99mm, 2020mm, 35*35mm
Material:	Plastic

Product Description

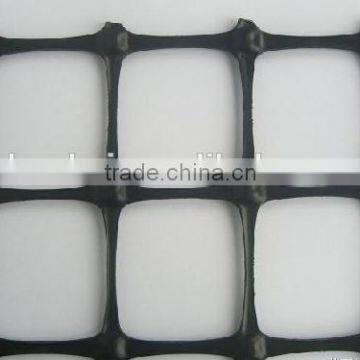

PP Biaxial Geogrid

Product Introduction
    Double-direction geogrid is made of high molecular polymer through extrusion, forming and punching before longitudinal and lateral stretching. This material has considerable tensile strength in longitudinal and lateral directions. This chain structure can effectively bear and diffuse forces on soil and is applicable to large area permanent load bearing foundation as a reinforce.
Product Features
    1. Increase the bearing capacity of the roadbed and foundation and prolong their service life.
    2. Prevent road surface and foundation from sinking or flawing, keep clean and beautiful ground surface.
    3. Convenient construction saves time and labor, reduce mounting time and decrease maintenance expense.
    4. Prevent culverts from flawing.
    5. Enhance earth slope and prevent water loss and soil erosion.
    6. Decrease underlayer thickness and save manufacturing cost.
    7. Enhance the stability of side slope turf net patch to improve greening.
    8. Replace wire netting used in mine as intermediate ceiling netting. Product Function
    Double-direction stretch plastic geogrid is used to reinforce dyke and roadbed, side slope, tunnel wall, large airport, parking lot, pier freight yard, etc. that are with permanent load bearing.

Size & Specification(PP Biaxial Geogrid)

Item	TGSG15-15	TGSG20-20	TGSG45-45	TGSG30-30	TGSG40-40
Longitudinal Tensile Strength,kN/m	15	20	45	30	40
Transverse Tensile Strength,kN/m	15	20	45	30	40
Longitudinal Yield Elongation,%	15
TransverseYield Elongation,%	13
Longitudinal Yield Strength at 2% Elongation,kN/m	5	7	17	11	14
Transverse Yield Strength at 2% Elongation,kN/m	5	7	17	11	14
Longitudinal Yield Strength at 5% Elongation,kN/m	7	14	33	21	30
Transverse Yield Strength at 5% Elongation,kN/m	7	14	33	21	30
Product Length/roll,m	50				40
Product width ,m	2/3.9/3.95/4/4.5/5

The construction technique demands of the geo-grid

The spreading surface should be even. After it is checked and accepted, in order to avoid the vertical deflection, line out the while line or the seton in the spreading surface according to the width, spread it, and then fix the end of the geo-grid by the iron nail (8 nails per meter in width).

After fixing the end of the geo-grid, use the spreading machine drawing and spreading forward, strain and make it straight by manpower when spreading per 10m till spreading a reel of geo-grid. The following operation is the same when spreading others.

After spreading a reel, use the 6T-10T road roller grinding the total road. (If it is spread on the middle plane, it is best to use steel-roller road roller; if it is spread on the concrete road, it is best to use the glue-roller road roller).

Constant spreading: Take the length of the reel as the spreading section, after spreading, inspect the spreading quality completely, and then spread the following section. Keep 10-15cm between two grids, fix it by the iron nail or the chock, continue to spread the second section.

Name:

Geogrid (BX) Geogrid BX Geogrid

Biaxial geogrid

Note:

Dimensions and Properties

Typical Dimensions mm
	KN	2020LKN	KN	3030LKN	KN	4040LKN
Pmd	40	65	40	60	33	54
Pld	40	65	40	60	33	54
Wmd	2.0	3.3	2.2	3.3	2.3	3.5
Wld	2.4	4.0	2.7	4.0	2.6	4.5
Tj	4.1	4.3	4.3	6.5	5.5	7.5
Tmd	1.0	1.0	2.0	1.5	2.3	1.8
Tld	0.8	0.9	1.4	1.4	2.0	1.6
